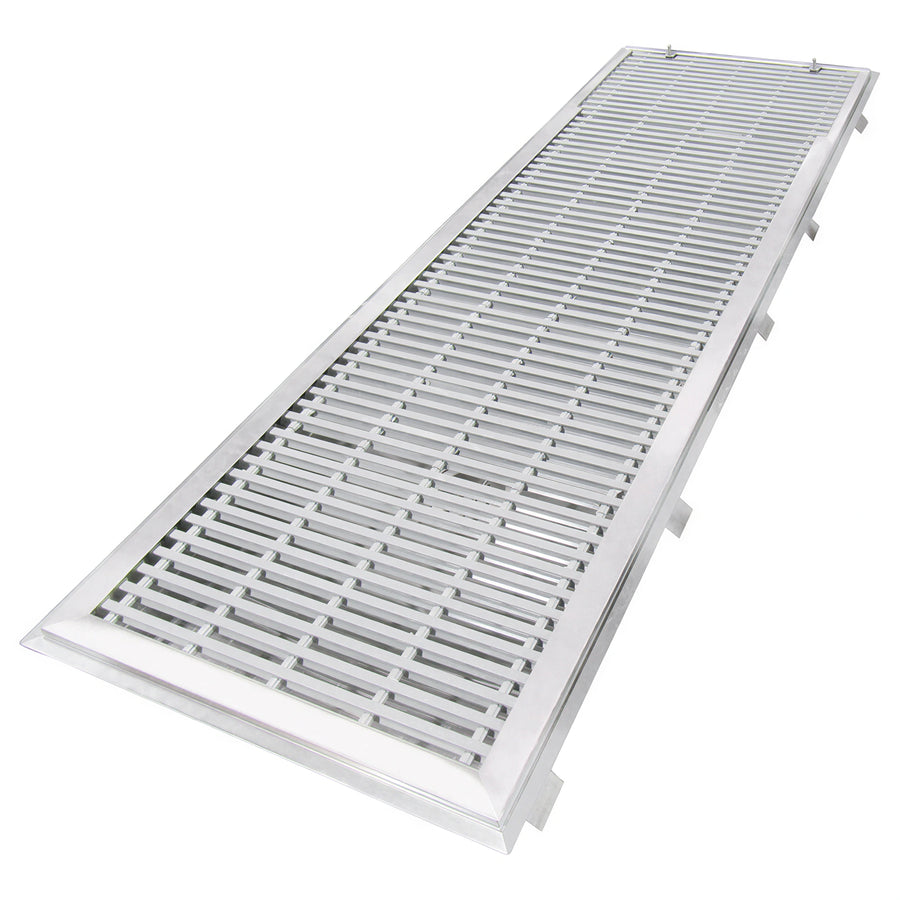

IMC/Teddy SEC-ASFT-3096-PFG Anti-Splash Stainless Steel Floor Trough with Security Fiberglass Grates, 96"W x 30"D x 6" Deep

SKU: SEC-ASFT-3096-PFG
$8,397.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The IMC/Teddy SEC-ASFT-3096-PFG is a 96 in wide by 30 in deep anti-splash floor trough with a 6 in deep receptacle.

It is constructed from 14 ga type 304 stainless steel with a brushed satin finish and includes PFG-SEC security pultruded fiberglass grating. A locking device is welded to the trough for grating security. Drain components include one 4 in OD tailpiece and a stainless steel beehive strainer.

The product is identified with NSF and Made in USA certifications.

Overall Dimensions:

96.0"W x 30.0"D x 12.25"H

Product Weight:

456.0 lb

Anti-splash trough

The 6 in deep receptacle uses an anti-splash design.

Security fiberglass grating

Includes PFG-SEC security pultruded fiberglass grating.

Welded grating locking device

A locking device is welded on the trough for grating security.

Stainless steel construction

The trough is made from 14 ga type 304 stainless steel.

Drain components

Includes one 4 in OD tailpiece and a stainless steel beehive strainer.

Brushed satin finish

Exposed stainless steel surfaces have a brushed satin finish.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Receptacle depth 6 in
Trough width 96 in
Trough depth 30 in
Trough material 14 ga type 304 stainless steel
Grating type PFG-SEC security pultruded fiberglass
Tailpiece 1 x 4 in OD
Strainer Stainless steel beehive
Grating locking device Welded on trough
Finish Brushed satin

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download PDF Floor troughs brochure PDF Download PDF Security brochure PDF Download

Frequently Asked Questions

The trough is 96 in wide by 30 in deep, with an overall height of 12.25 in and a 6 in deep receptacle.
The trough is constructed from 14 ga type 304 stainless steel and has a brushed satin finish.
The product includes PFG-SEC security pultruded fiberglass grating.
A locking device welded on the trough secures the grating.
The product includes one 4 in OD tailpiece and a stainless steel beehive strainer.
Yes. NSF and Made in USA are identified for this product.
