IMC/Teddy

IMC/Teddy NWR-72-SG Floor Water Receptacle, 72"W x 6"D, 4" Deep, 16-Gauge Stainless Steel, Subway Grating

SKU: NWR-72-SG
$3,338.40
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

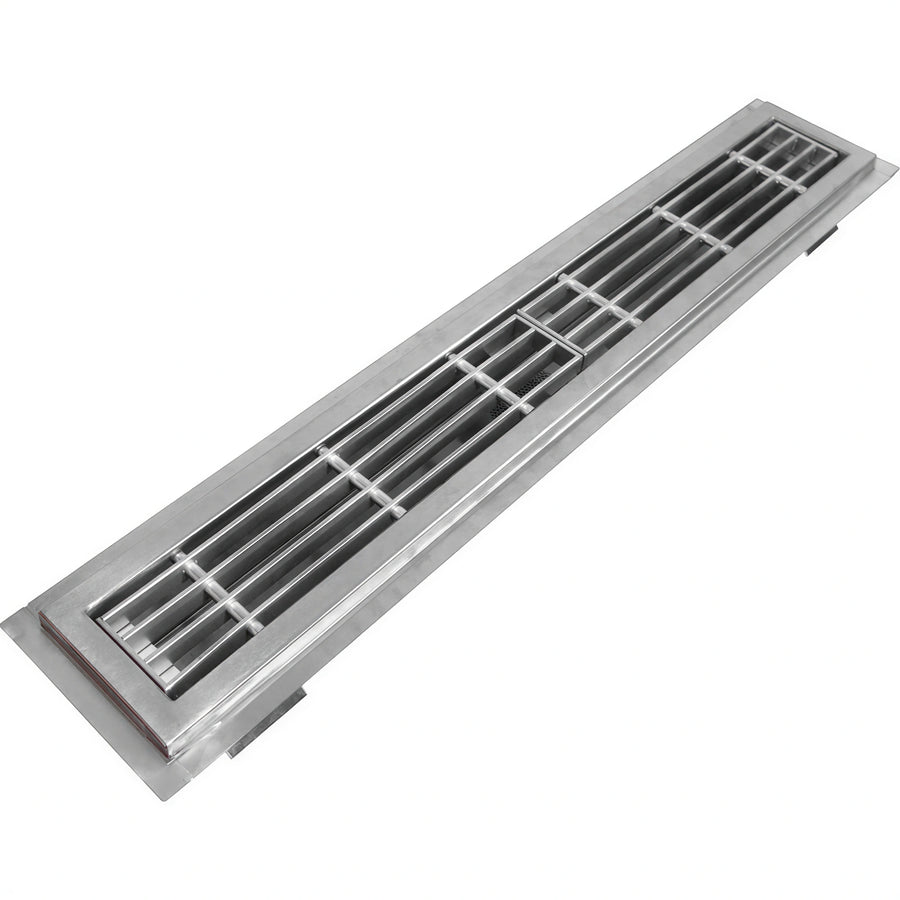

The IMC/Teddy NWR-72-SG is a 72-inch-wide floor water receptacle with a 6-inch overall depth and a 4-inch receptacle depth. It features 16-gauge 304 stainless steel construction, a brushed satin finish, and SG subway-style stainless steel grating.

  • Includes one 3-inch OD tailpiece and a stainless steel beehive strainer.
  • Features a recessed flange and 1-inch-deep ledge for grating support.
  • Made in the USA and NSF certified.

Overall Dimensions:

72.0"W x 6.0"D x 7.0"H

Product Weight:

60.0 lb

Stainless steel construction

Constructed from 16-gauge 304 stainless steel in a one-piece NWR floor water receptacle design.

Subway-style grating

Includes SG stainless steel subway-style grating.

Drain components

Includes one 3-inch OD tailpiece and a stainless steel beehive strainer.

Recessed flange

The recessed flange supports floor tile and provides a grout pocket.

Brushed satin finish

Exposed surfaces have a brushed satin finish.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Product type Floor water receptacle
Overall width 72 in
Overall depth 6 in
Overall height 7 in
Receptacle depth 4 in
Construction 16 ga 304 stainless steel
Finish Brushed satin
Grate type Subway-style grating
Grate construction Stainless steel
Tailpiece 1, 3 in OD tailpiece
Strainer Stainless steel beehive strainer
Pan type Non anti-splash

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download PDF Floor troughs brochure PDF Download

Frequently Asked Questions

The product is 72 inches wide, 6 inches deep, and 7 inches high, with a 4-inch-deep receptacle.
It uses SG subway-style stainless steel grating.
The receptacle includes one 3-inch OD tailpiece and a stainless steel beehive strainer.
Yes. The NWR-72-SG is NSF certified and made in the USA.
