IMC/Teddy

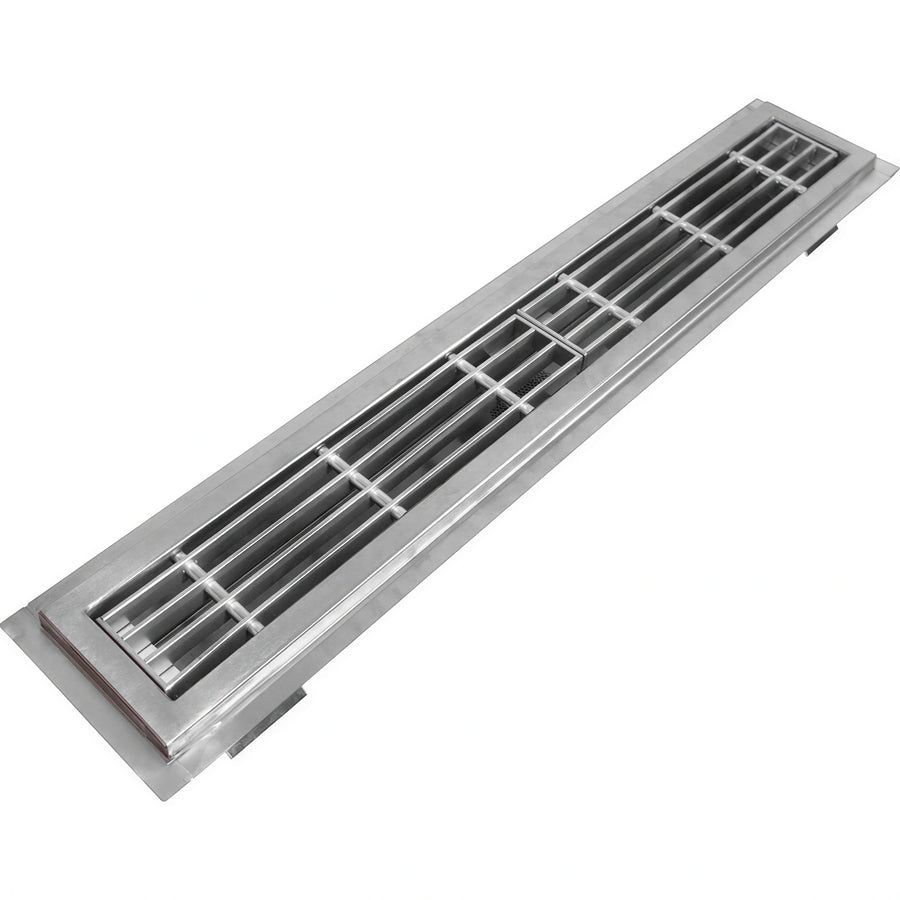

IMC/Teddy NWR-36-SG Floor Water Receptacle, 36"W x 6"D, 4" Deep, Stainless Steel Subway Grating

SKU: NWR-36-SG
$2,403.60
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The IMC/Teddy NWR-36-SG is a 36-inch-wide floor water receptacle for commercial and institutional applications, including areas beneath ice machines, in front of walk-ins, and other large water discharge areas.

  • Construction: 16/304 stainless steel with a brushed satin finish.
  • Drainage: 4-inch-deep receptacle with one 3-inch OD tailpiece and a stainless steel beehive strainer.
  • Grating: Stainless steel SG subway-style grating.
  • Installation support: Recessed flange supports floor tile and provides a grout pocket.

Overall Dimensions:

36.0"W x 6.0"D x 7.0"H

Product Weight:

30.0 lb

Stainless steel construction

Constructed from 16/304 stainless steel with a brushed satin finish.

Subway-style grating

Includes stainless steel SG subway-style grating.

Integrated drainage

The receptacle includes one 3-inch OD tailpiece and a stainless steel beehive strainer.

Recessed tile flange

The recessed flange supports floor tile and provides a grout pocket.

Commercial water management

Designed for use beneath ice machines, in front of walk-ins, and in other large water discharge areas.

Non anti-splash pan

The authoritative product attributes identify the pan type as non anti-splash.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Product type Floor water receptacle
Overall width 36 in
Overall depth 6 in
Overall height 7 in
Receptacle depth 4 in
Construction 16/304 stainless steel
Grating type Subway-style grating
Grate construction Stainless steel
Finish Brushed satin
Pan type Non anti-splash
Drain tailpiece 1 x 3 in OD
Strainer Stainless steel beehive strainer
Product weight 30 lb
Country of manufacture Made in USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The floor water receptacle measures 36 inches wide, 6 inches deep, and 7 inches high. The receptacle itself is 4 inches deep.
It is constructed from 16/304 stainless steel and has a brushed satin finish.
The NWR-36-SG uses stainless steel SG subway-style grating.
Yes. It includes one 3-inch OD tailpiece and a stainless steel beehive strainer.
The NWR model is generally used beneath ice machines, in front of walk-ins, and in large water discharge areas.
Yes. The product is NSF certified and made in the USA.
