Play manufacturer video for IMC/Teddy LG-2196 Louvered Floor Trough Grating, 21" W x 96" L x 1" H, 16/304 Stainless Steel, One-PieceIMC/Teddy LG-2196 Louvered Floor Trough Grating, 21" W x 96" L x 1" H, 16/304 Stainless Steel, One-Piece
SKU: LG-2196
$2,081.40

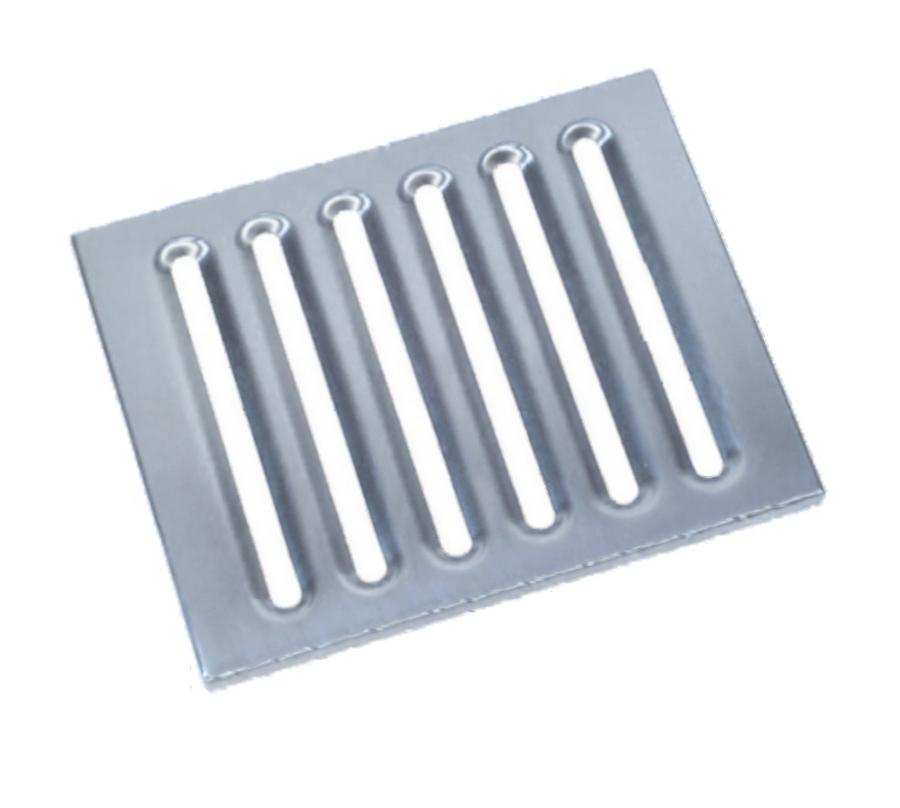

The IMC/Teddy LG-2196 is a louvered floor trough grating measuring 21 in wide x 96 in long x 1 in high. It is constructed of 16GA Type 304 stainless steel with die-formed louvers in a one-piece, formed and fully welded design.
Surfaces are polished and ground smooth and have a brushed satin finish.
Overall Dimensions:
96.0"W x 21.0"D x 1.0"HProduct Weight:
96.0 lbStainless steel construction
Constructed of 16GA Type 304 stainless steel.
Die-formed louvers
The grating uses die-formed louvers.
One-piece design
Built as a one-piece grating with formed and fully welded construction.
Brushed satin finish
Surfaces are polished and ground smooth with a brushed satin finish.
Product type
Louvered floor trough grating
Nominal size
21 in W x 96 in L x 1 in H
Material
Stainless steel
Gauge
16GA
Stainless steel grade
Type 304
Louver type
Die-formed
Design
One-piece
Construction
Formed and fully welded
Surface preparation
Polished and ground smooth
Finish
Brushed satin
Frequently Asked Questions
The catalog lists the grating at 21 in wide x 96 in long x 1 in high.
It is made from 16GA Type 304 stainless steel.
Yes. The LG-2196 has a one-piece design and is formed and fully welded.
The surfaces are polished and ground smooth with a brushed satin finish.
