Customize IMC/Teddy Model no. IDFD-SQ
Play manufacturer video for IMC/Teddy IDFD-SQ Indirect Floor Drain, 11-1/2" Square, 6-1/2" Deep, Stainless SteelIMC/Teddy IDFD-SQ Indirect Floor Drain, 11-1/2" Square, 6-1/2" Deep, Stainless Steel

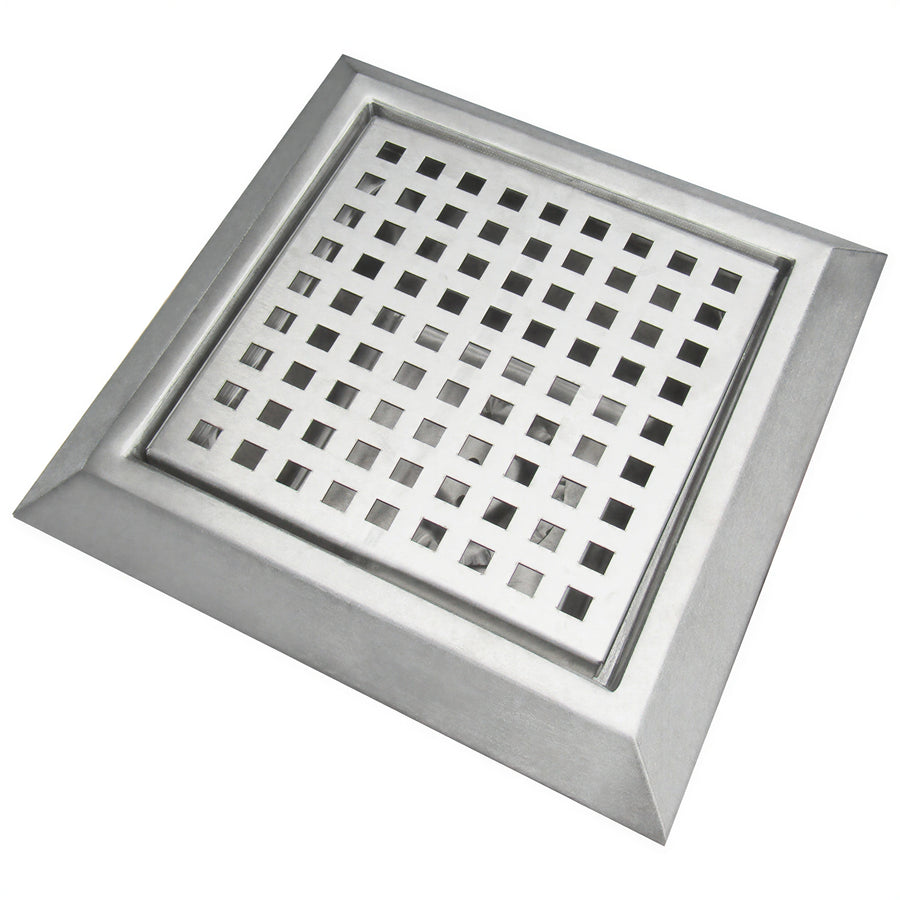

The IMC/Teddy IDFD-SQ is an indirect floor drain with an 11-1/2-inch square, 6-1/2-inch-deep receptacle. It has 16-gauge 304 stainless steel construction, a brushed satin finish, a 4-inch-diameter drain pipe with a perforated strainer, and an SQ grid grating.
- Sloping top flange and coved bottom
- Weep holes and clamping flange for waterproof-membrane drainage
- NSF listed and made in the USA
Overall Dimensions:
13.5"W x 13.5"D x 9.5"HStainless steel construction
Constructed from 16-gauge 304 stainless steel.
Indirect drainage
Specified for use as an indirect or dedicated drain.
Drain assembly
Includes a 4-inch-diameter drain pipe with a perforated strainer located at the center.
Sloping top flange
The top flange slopes to the floor.
Coved bottom
The coved bottom is designed to support complete drainage of waste water.
Waterproof-membrane drainage
Weep holes and a clamping flange provide a path for floor leaks to be captured by a waterproof membrane.
SQ grid grating
Specified with SQ grid grating.
Brushed satin finish
Finished in brushed satin stainless steel.
