Play manufacturer video for IMC/Teddy IDFD Indirect Floor Drain, 11-1/2" x 11-1/2", 6-1/2" Deep, Stainless Steel, Perforated GratingIMC/Teddy IDFD Indirect Floor Drain, 11-1/2" x 11-1/2", 6-1/2" Deep, Stainless Steel, Perforated Grating

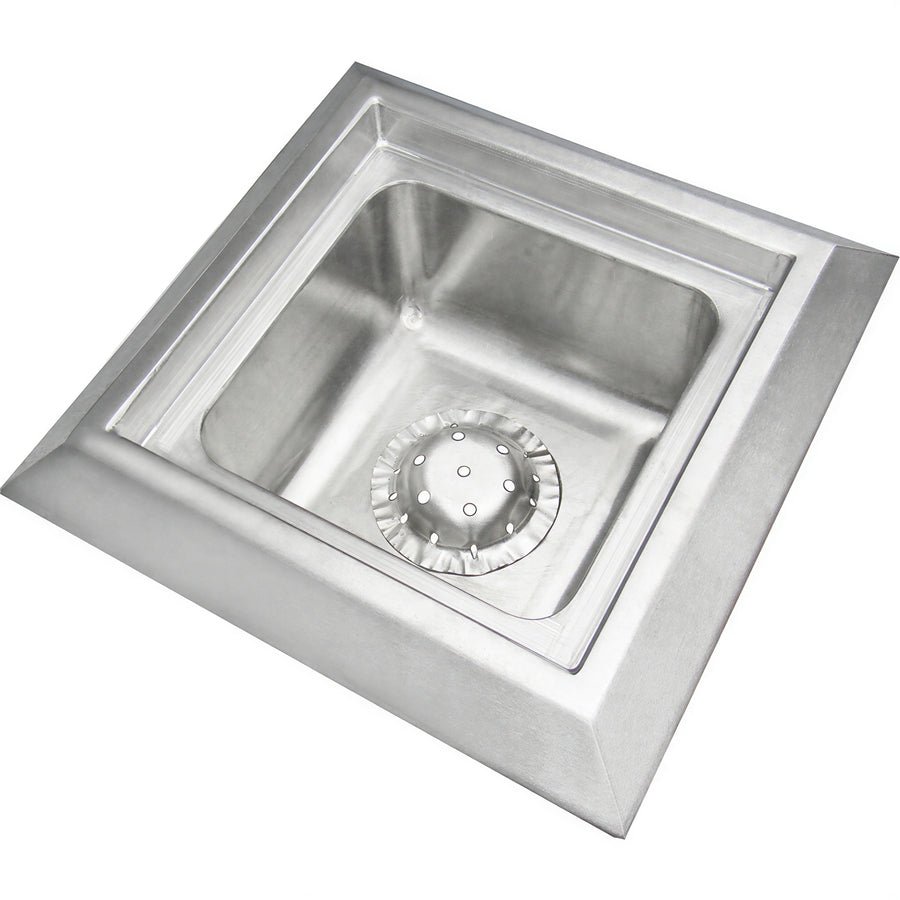

The IDFD is an indirect floor drain for indirect or dedicated drain applications. It has a 6-1/2-inch-deep receptacle, a sloped top flange, a coved bottom, and a 4-inch-diameter drain pipe with a perforated strainer.
Constructed from fully welded 16-gauge Type 304 stainless steel with a brushed satin finish, the drain includes weep holes and a clamping flange for use with a waterproof membrane. The perforated grating is made of 12-gauge stainless steel.
Overall Dimensions:
13.5"W x 13.5"D x 9.5"HIndirect or dedicated drainage
Designed for use as an indirect or dedicated drain.
Stainless steel construction
Fully welded 16-gauge Type 304 stainless steel construction with a brushed satin finish.
Square deep receptacle
The receptacle measures 11-1/2 in x 11-1/2 in and is 6-1/2 in deep.
Sloped top flange
The top flange is sloped to the floor.
Coved bottom
The coved bottom supports complete drainage of waste water.
Drain pipe and strainer
Includes a 4 in diameter drain pipe with a perforated strainer.
Leak-management features
Weep holes and a clamping flange provide a pathway for floor leaks to be captured by a waterproof membrane and guided into the drain.
Perforated grating
The grating is perforated 12-gauge stainless steel.
Certifications & Compliance
