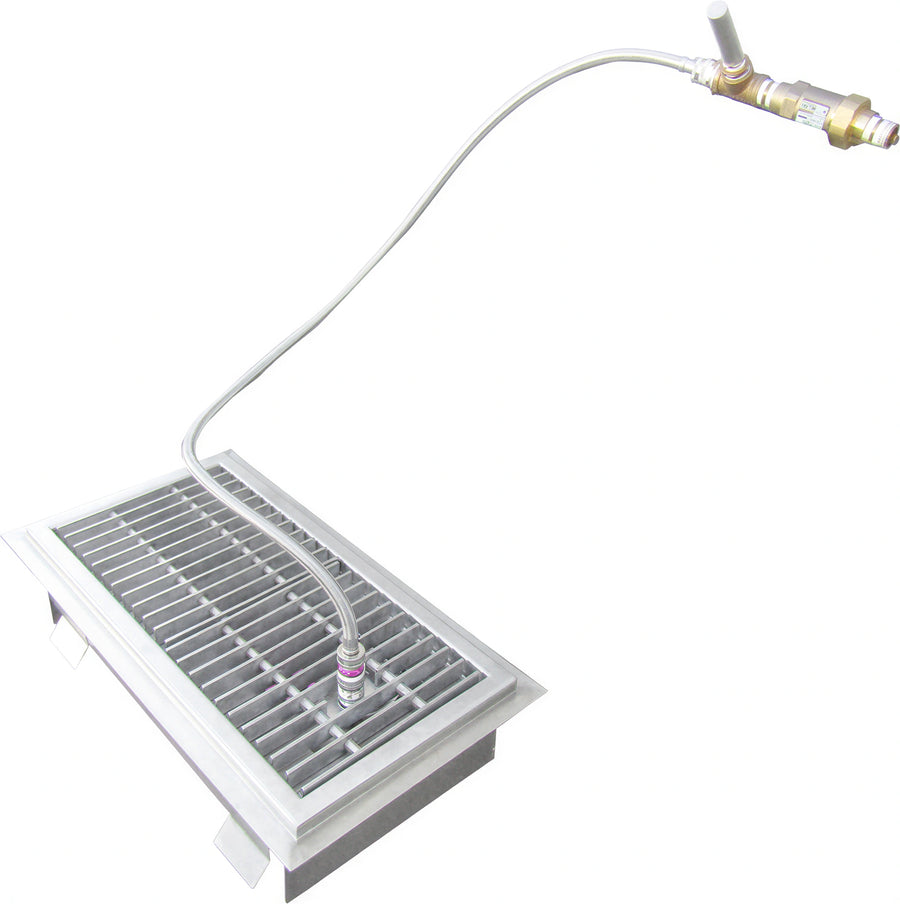

Play manufacturer video for IMC/Teddy HDCI Floor Drain Insert, 18-Gauge Type 304 Stainless Steel, Perforated Bottom, Tempering ValveIMC/Teddy HDCI Floor Drain Insert, 18-Gauge Type 304 Stainless Steel, Perforated Bottom, Tempering Valve
The HDCI HydroCool Insert is designed for commercial and institutional buildings or large food preparation facilities where hot drain water must be cooled. It is constructed from 18-gauge Type 304 stainless steel and includes a drain tempering valve that activates when drainage fluids reach or exceed 110°F.
The insert has a perforated bottom with 1/32-inch seepage holes, overflow holes on both sides, and 1-3/4-inch flanges on the length sides. Its specified plumbing assembly includes a flexible hose with water hammer arrestor and backflow preventer. The HDCI is a one-piece assembly plus the grating section; the trough is sold separately.
Hot-drain cooling
Designed for applications where hot drain water must be cooled, including commercial and institutional buildings or large food preparation facilities.
Temperature-triggered tempering valve
The drain tempering valve is triggered when drainage fluids are at or above 110°F.
Stainless steel construction
Constructed of 18-gauge Type 304 stainless steel.

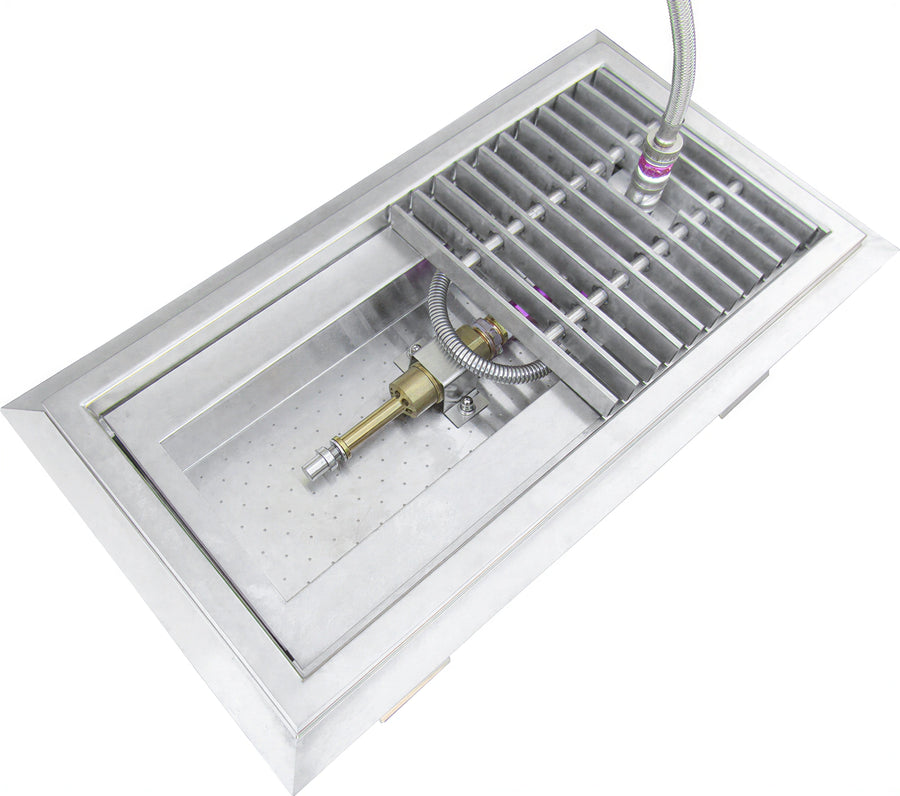

Perforated bottom
The bottom has 1/32-inch seepage holes.
Overflow openings
1-inch x 7-1/2-inch overflow holes are provided on both sides of the insert.
Plumbing protection
The specified flexible hose includes a water hammer arrestor and backflow preventer.
Installation flexibility
Can be used with IMC troughs or retrofitted in the field.
Assembly format
One-piece assembly plus the grating section.
