IMC/Teddy

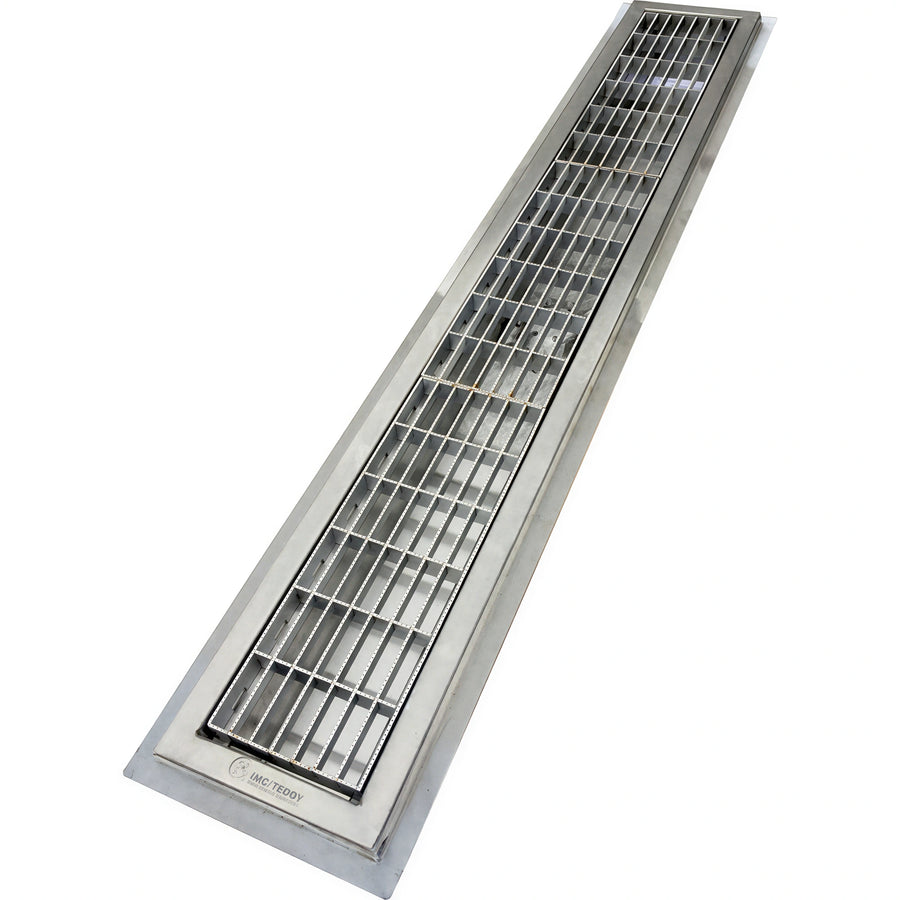

IMC/Teddy FWR-30-SQ Stainless Steel Floor Water Receptacle, 30"W x 7-1/2"D, 4" Deep, Square Grid Grate

SKU: FWR-30-SQ
$1,823.40
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The IMC/Teddy FWR-30-SQ is a 30-inch-wide floor water receptacle with a 4-inch-deep receptacle, square grid grating, and a 7-1/2-inch short-side depth.

  • Constructed of 16-gauge 304 stainless steel with a brushed satin finish.
  • Includes one 4-inch OD tailpiece and a stainless steel beehive strainer.
  • The receptacle is integrally pitched toward the waste outlet for drainage.
  • Identified as NSF and Made in USA.

Overall Dimensions:

30.0"W x 7.5"D x 7.0"H

Product Weight:

25.0 lb

Stainless steel construction

Built from 16-gauge 304 stainless steel with a brushed satin finish.

Square grid grating

Includes stainless steel square grid grating.

Integral drainage pitch

The receptacle is pitched toward the waste outlet.

Waste outlet components

Includes one 4-inch OD tailpiece and a stainless steel beehive strainer.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Construction 16-gauge 304 stainless steel
Finish Brushed satin
Receptacle depth 4 in.
Width 30 in.
Depth (short side) 7.5 in.
Grate type Square grid grating
Grate construction Stainless steel
Pan type Non anti-splash
Tailpiece One 4 in. OD tailpiece
Strainer Stainless steel beehive strainer
Drainage design Integral pitch toward waste outlet

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The authoritative dimensions are 30 in. wide x 7.5 in. deep x 7 in. high. The receptacle depth is 4 in., and the product weight is 25 lb.
It is constructed from 16-gauge 304 stainless steel and has a brushed satin finish.
It uses stainless steel square grid grating.
Yes. It includes one 4 in. OD tailpiece and a stainless steel beehive strainer.
The product specifications identify it as NSF and Made in USA.
