IMC/Teddy FT30-28-PFG-ADA Floor Trough with Drain, 336"W x 30"D x 4"H, Stainless Steel, Fiberglass Grating
SKU: FT30-28-PFG-ADA
$21,851.40

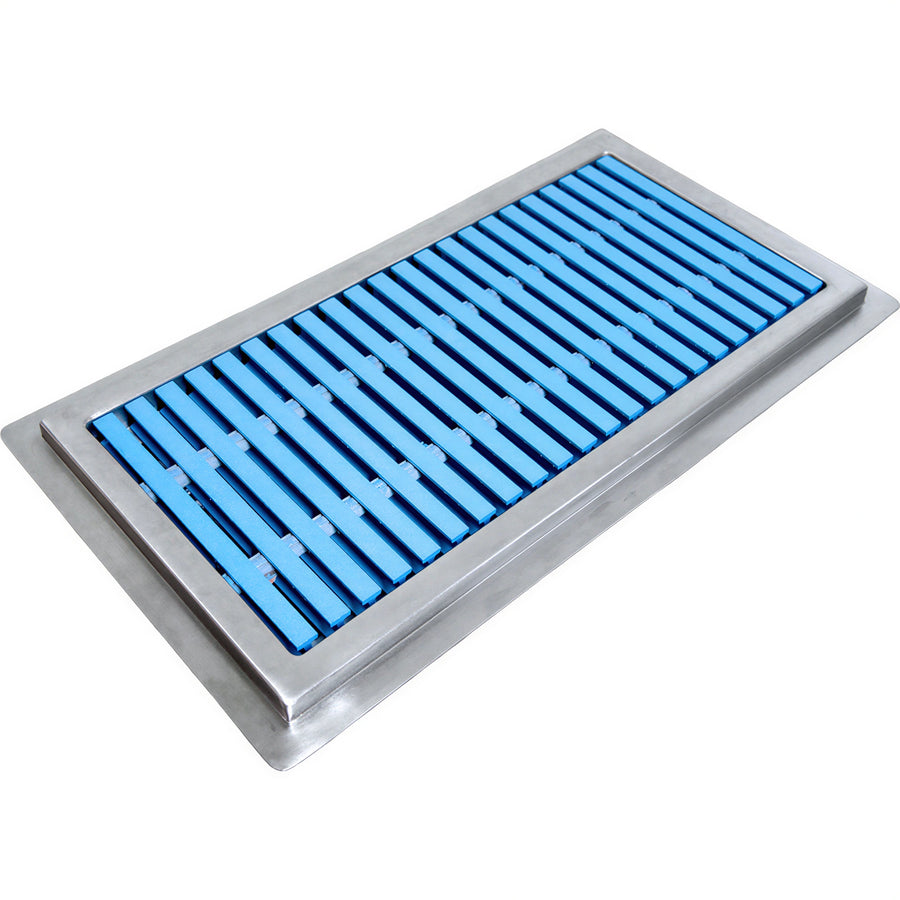

The IMC/Teddy FT30-28-PFG-ADA is a 336-inch-wide floor trough with a 30-inch short-side depth and 4-inch overall height. It combines 14-gauge 304 stainless steel construction with blue PFG-ADA pultruded fiberglass grating and a drain.
- Integral coved corners and a pitch of 1/4 inch per foot toward the waste outlet support drainage.
- A recessed flange supports floor tile and provides a grout pocket.
- Joints are TIG welded and leak-proof, with exposed surfaces finished in brush satin.
The pan type is non-anti-splash.
Overall Dimensions:
336.0"W x 30.0"D x 4.0"HProduct Weight:
840.0 lbStainless steel trough
Constructed from 14-gauge 304 stainless steel.
PFG-ADA fiberglass grating
Includes blue pultruded fiberglass grating identified as PFG-ADA.
Drainage design
Features integral coved corners and a 1/4-inch-per-foot pitch toward the waste outlet.
Recessed flange
Supports floor tile and provides a grout pocket.
TIG-welded joints
Joints are TIG welded and leak-proof.
Non-anti-splash pan
The authoritative pan type is non anti-splash.
Product type
Floor trough
Overall width
336 in
Overall depth
30 in
Overall height
4 in
Trough material
14-gauge 304 stainless steel
Grating construction
Pultruded fiberglass
Grating model
PFG-ADA
Grating color
Blue
Grating spacing
0.4 in
Drain
Included
Pan type
Non anti-splash
Waste outlet
6.5 in
Finish
Brush satin
Weight
840 lb
Frequently Asked Questions
The listed physical dimensions are 336 in wide by 30 in deep by 4 in high.
The trough is made from 14-gauge 304 stainless steel.
It includes blue PFG-ADA pultruded fiberglass grating with 0.4-inch spacing.
Yes. The exact product specification identifies it as a floor trough with a drain.
No. The authoritative pan type is non anti-splash.
The joints are TIG welded and leak-proof.
