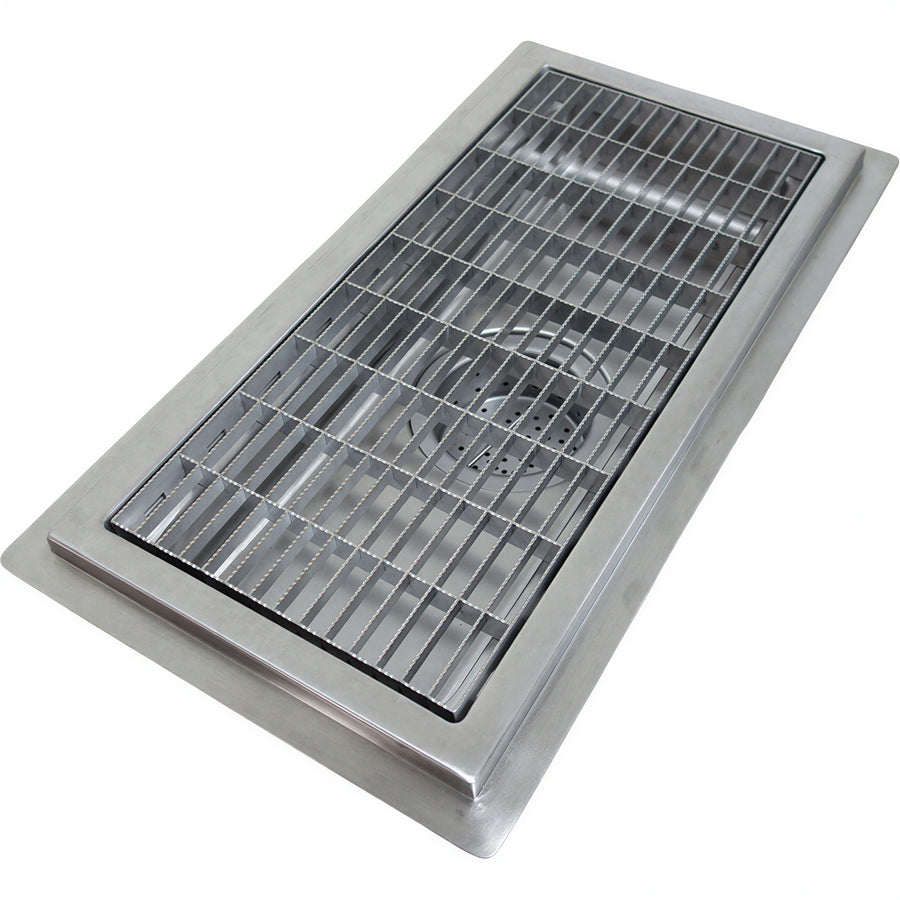

Play manufacturer video for IMC/Teddy FT30-25-SQ 14-Gauge 304 Stainless Steel Floor Trough with Drain and Square Grid Grate, 300"W x 30"D x 4" DeepIMC/Teddy FT30-25-SQ 14-Gauge 304 Stainless Steel Floor Trough with Drain and Square Grid Grate, 300"W x 30"D x 4" Deep
The IMC/Teddy FT30-25-SQ is an FT floor trough measuring 300 in wide by 30 in deep with a 4 in overall depth. It is specified in 14-gauge 304 stainless steel with a drain and square grid grating.
FT documentation describes integral coves, a pitch toward the waste outlet, and a recessed flange for floor tile and grout. Exposed surfaces are finished in brushed satin.
- 300 in wide by 30 in deep by 4 in overall depth
- 14-gauge 304 stainless steel trough construction
- Drain with square grid grating
- Non anti-splash pan type
Overall Dimensions:
300.0"W x 30.0"D x 4.0"HProduct Weight:
1100.0 lb14-gauge 304 stainless steel construction
The trough is specified as 14-gauge 304 stainless steel.
Square grid grating
The exact product specification identifies the grating as square grid grating, and category data identifies the grates as stainless steel.
Drainage design
FT documentation describes integral coves and a 1/4 in per foot pitch toward a 6 1/2 in waste outlet.
Perforated waste basket
FT documentation states that a perforated waste basket is provided at each drain.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Welded construction
FT documentation describes TIG-welded, leak-proof joints and brushed satin exposed surfaces.
Anchor straps
FT documentation states that anchor straps are welded to the trough sides to secure the trough to the floor.
Pan type
The pan is specified as non anti-splash.
