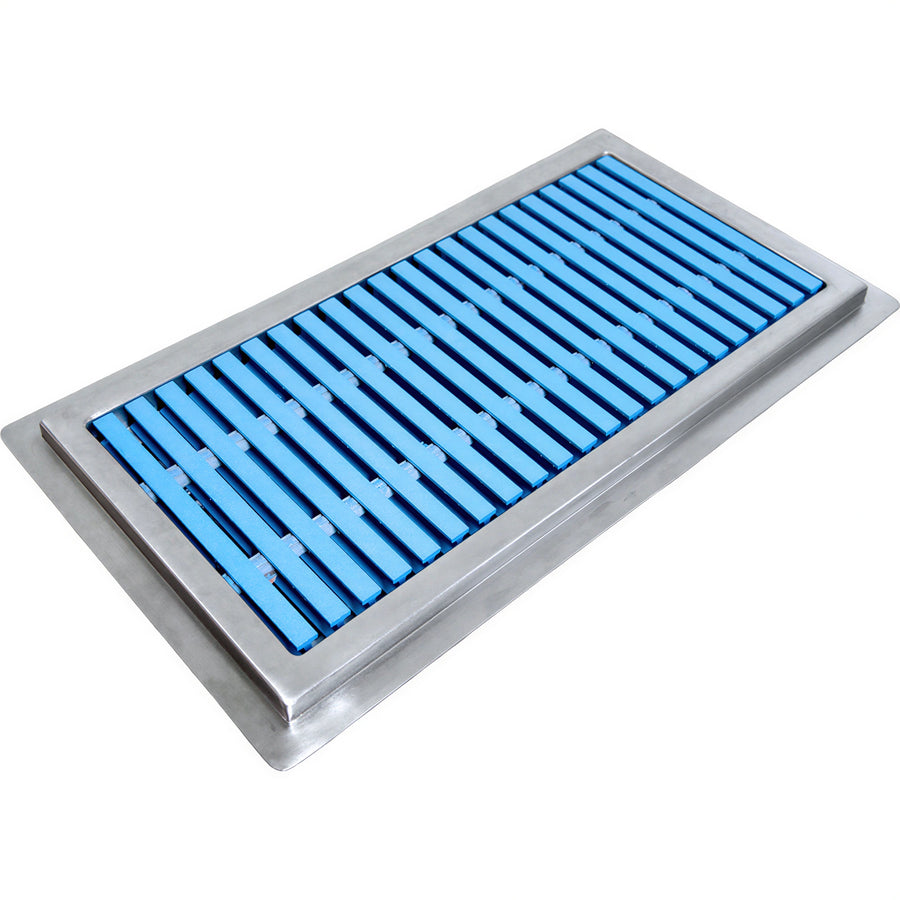

Play manufacturer video for IMC/Teddy FT30-25-PFG-ADA Floor Trough with Drain, 300"W x 30"D x 4" Deep, Stainless Steel with Blue Fiberglass GratingIMC/Teddy FT30-25-PFG-ADA Floor Trough with Drain, 300"W x 30"D x 4" Deep, Stainless Steel with Blue Fiberglass Grating
The FT30-25-PFG-ADA is an FT floor trough measuring 300 inches wide, 30 inches deep, and 4 inches deep overall. It has a 14/304 stainless steel trough, drain, and blue PFG-ADA pultruded fiberglass grating.
- Integral coved corners and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
- The trough includes a recessed flange and integrated ledge for grating support.
- Exposed surfaces have a brushed satin finish.
Overall Dimensions:
300.0"W x 30.0"D x 4.0"HProduct Weight:
750.0 lbStainless steel trough
The trough is constructed from 14/304 stainless steel.
PFG-ADA fiberglass grating
The included grating is blue, pultruded fiberglass with PFG-ADA construction and 0.4 in. bar spacing.
Drainage design
Integral coves and a 1/4 in. per ft. pitch direct water toward the 6 1/2 in. OD waste outlet.
Waste outlet and tailpiece
The FT design includes a 6 1/2 in. OD waste outlet and a 4 in. OD x 3 in. long tailpiece.
Recessed flange and grating ledge
The recessed flange supports floor tile and provides a grout pocket; the integrated 1 in. ledge supports the grating.
Welded construction
Joints are TIG welded and leak-proof.
Brushed satin finish
Exposed surfaces are finished in brushed satin.
Non-anti-splash pan
The authoritative category attributes identify the pan type as non anti-splash.
