IMC/Teddy FT30-21-PFG-ADA Floor Trough with Drain, 252"W x 30"D x 4" Deep, 14 ga Stainless Steel, Blue Fiberglass Grating
- Dimensions
- 252.0"W × 30.0"D × 4.0"H
- Trough type
- FT floor trough
- Trough construction
- 14/304 stainless steel
- Grating construction
- PFG-ADA pultruded fiberglass
- Grating color
- Blue
- Grating spacing
- 0.4 in
Specifications
Description

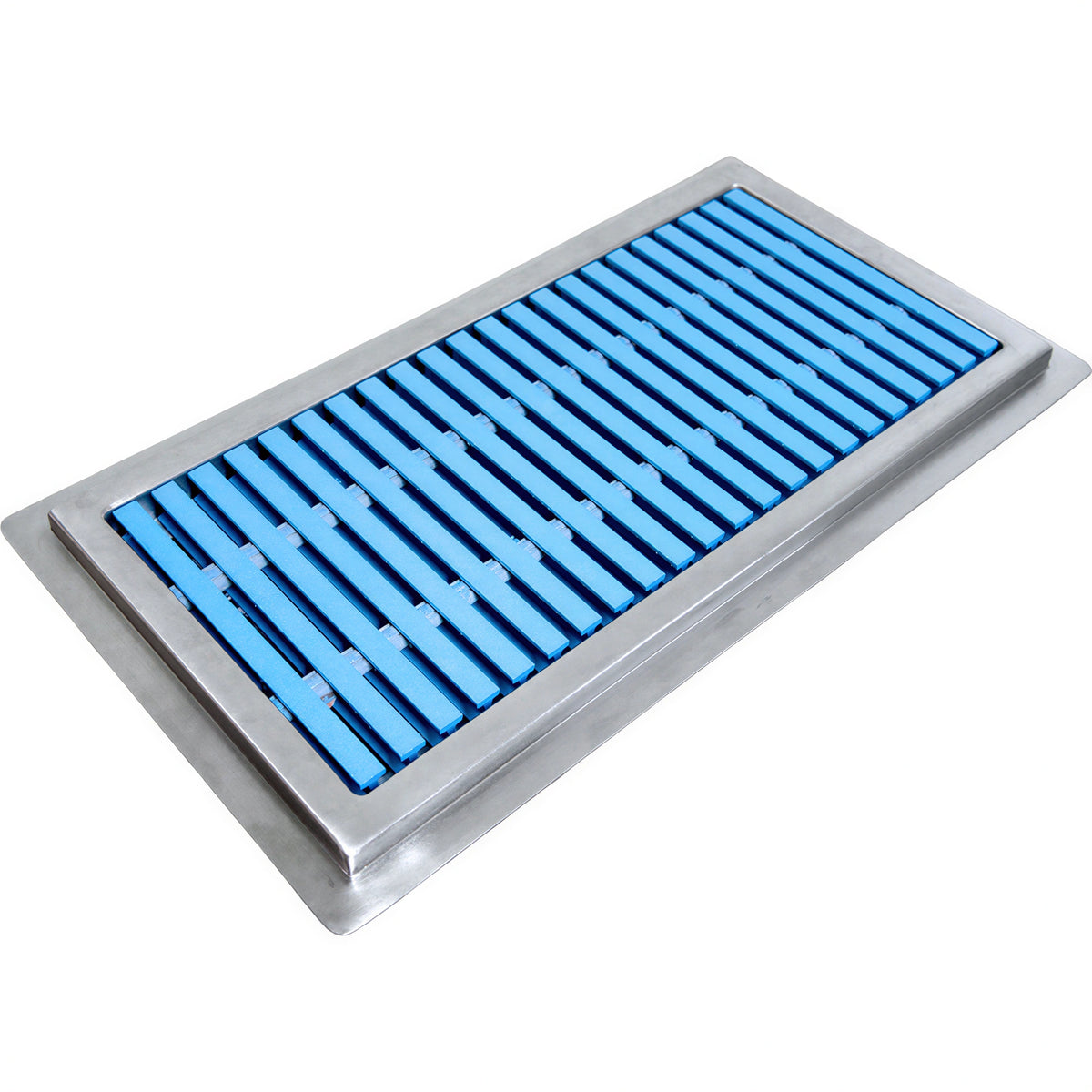

The IMC/Teddy FT30-21-PFG-ADA is an FT floor trough measuring 252 in wide by 30 in deep and 4 in overall depth. It is constructed from 14/304 stainless steel and configured with a drain and blue PFG-ADA pultruded fiberglass grating.
The FT design includes integral coves and a pitch toward the waste outlet. The PFG-ADA grating is identified as ADA compliant, with blue bars spaced 0.4 in apart.
- 14/304 stainless steel trough construction
- Blue PFG-ADA pultruded fiberglass grating
- Non-anti-splash pan type
- Brush satin finish on exposed surfaces
Overall Dimensions:
252.0"W x 30.0"D x 4.0"HProduct Weight:
630.0 lbStainless steel construction
The trough is constructed from 14/304 stainless steel.
PFG-ADA fiberglass grating
The product uses blue pultruded fiberglass grating identified as PFG-ADA.
ADA-compliant grating
The supplied product literature identifies PFG-ADA blue grating bars as ADA compliant.
Drainage design
FT documentation specifies integral coves and a 1/4 in per foot pitch toward the waste outlet.
Perforated waste basket
FT specifications state that a perforated waste basket is provided at each drain.
Non-anti-splash pan
The authoritative category attributes identify the pan type as non anti-splash.
Brush satin finish
Exposed surfaces are finished brush satin.
