Play manufacturer video for IMC/Teddy FT30-16-SG-ADA Stainless Steel Floor Trough with Drain, Subway Grating, 192"W x 30"D x 4" DeepIMC/Teddy FT30-16-SG-ADA Stainless Steel Floor Trough with Drain, Subway Grating, 192"W x 30"D x 4" Deep
The FT30-16-SG-ADA is an FT floor trough measuring 192 in wide, 30 in deep on the short side, and 4 in deep overall. It is constructed from 14 ga 304 stainless steel and includes a drain with SG-ADA subway-style stainless steel grating.
- SG-ADA grating bars are spaced 0.5 in apart.
- Standard FT construction includes integral coves, a pitch toward the waste outlet, a recessed flange with grout pocket, and TIG-welded leakproof joints.
- The pan type is non-anti-splash.
Overall Dimensions:
192.0"W x 30.0"D x 4.0"HProduct Weight:
704.0 lbStainless steel construction
The trough is constructed from 14 ga 304 stainless steel.

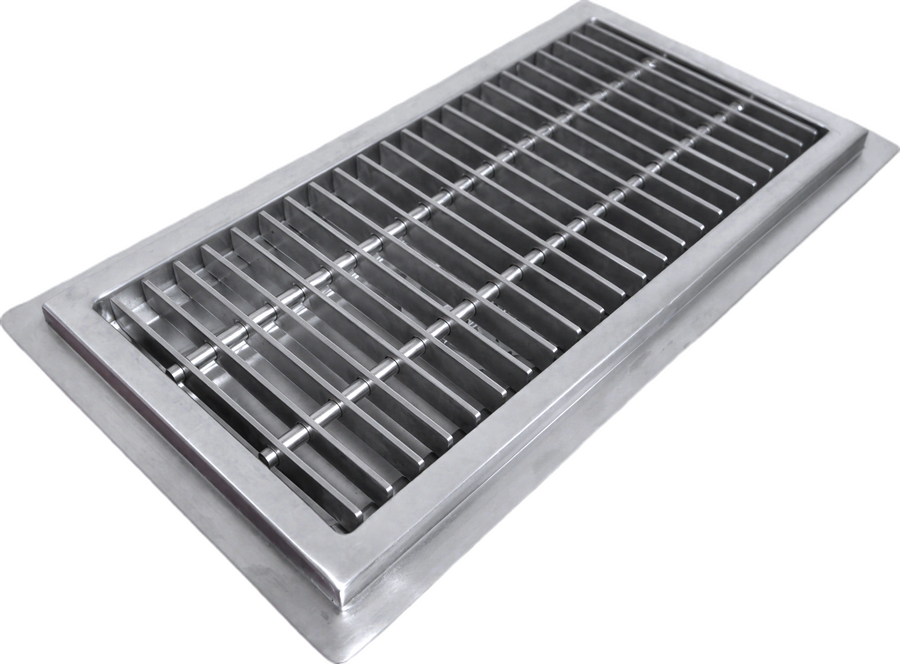

SG-ADA subway grating
Includes stainless steel SG-ADA subway-style grating with 0.5 in spacing between grating bars.
Drain included
The product specification identifies this floor trough as including a drain. Standard FT documentation specifies a 6.5 in OD waste outlet and a 4 in OD x 3 in long tailpiece.
Pitched drainage design
Standard FT construction includes integral coves and a pitch of 0.25 in per foot toward the waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
Standard FT joints are TIG welded and leakproof, with exposed surfaces finished in brush satin.
Non-anti-splash pan
The authoritative category attributes identify the pan type as non-anti-splash.
