Play manufacturer video for IMC/Teddy FT30-13-SQ 14 Ga Stainless Steel Floor Trough with Drain, Square Grid Grating, 156"W x 30"D x 4" DeepIMC/Teddy FT30-13-SQ 14 Ga Stainless Steel Floor Trough with Drain, Square Grid Grating, 156"W x 30"D x 4" Deep

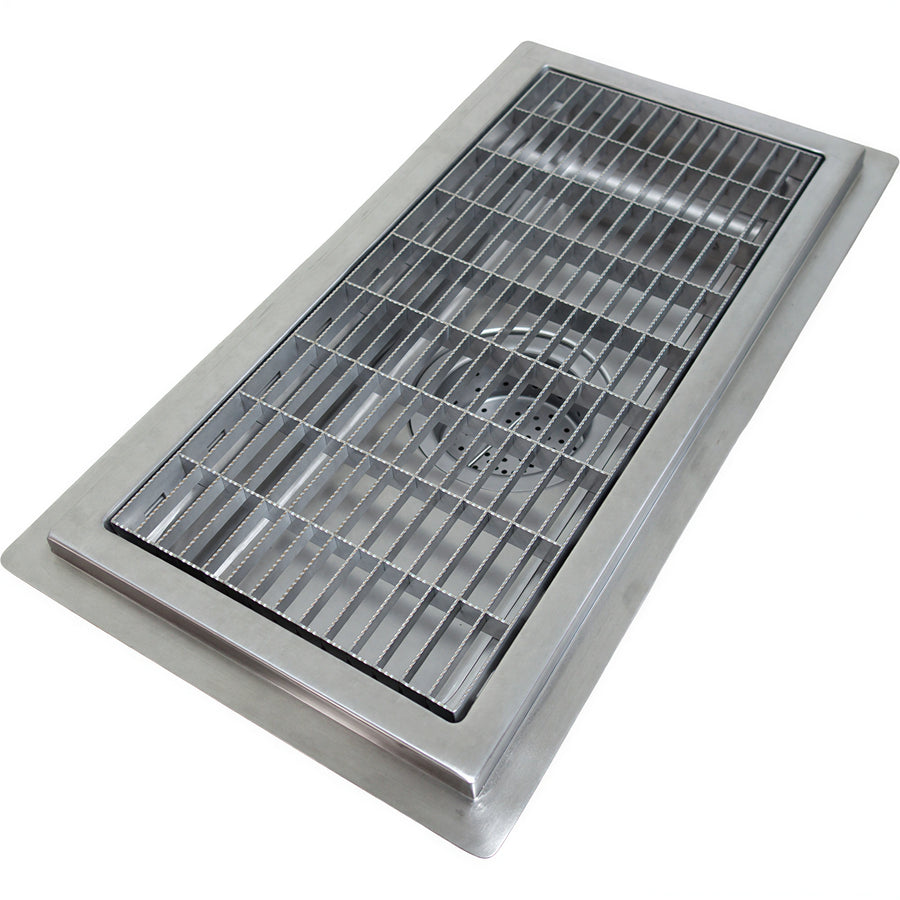

IMC/Teddy FT30-13-SQ is a 156-inch-wide FT floor trough constructed from 14-gauge 304 stainless steel, with a 30-inch short-side depth and 4-inch overall depth.
The trough includes a drain and stainless steel square grid grating. Its FT design includes integral coves, a pitched bottom for drainage, a recessed flange, and a non-anti-splash pan.
- 14-gauge 304 stainless steel trough construction
- Stainless steel square grid grating
- Brush satin finish on exposed surfaces
- Recessed flange with an integral ledge for grating
Overall Dimensions:
156.0"W x 30.0"D x 4.0"HProduct Weight:
572.0 lbStainless steel construction
The trough is specified as 14-gauge 304 stainless steel.
Square grid grating
The included SQ grating is constructed from stainless steel bars arranged in a square grid.
Drainage design
The FT trough design has integral coves and a 1/4 in per foot pitch toward a 6 1/2 in OD waste outlet with a 4 in OD tailpiece.
Waste collection
FT trough documentation specifies a perforated waste basket at each drain.
Recessed installation flange
The recessed flange supports floor tile and provides a grout pocket.
Grating support ledge
A 1 in deep ledge for IMC grating is integral with the trough.
Welded construction
The joints are TIG welded and leak-proof.
Brushed finish
Exposed surfaces are finished brush satin.
