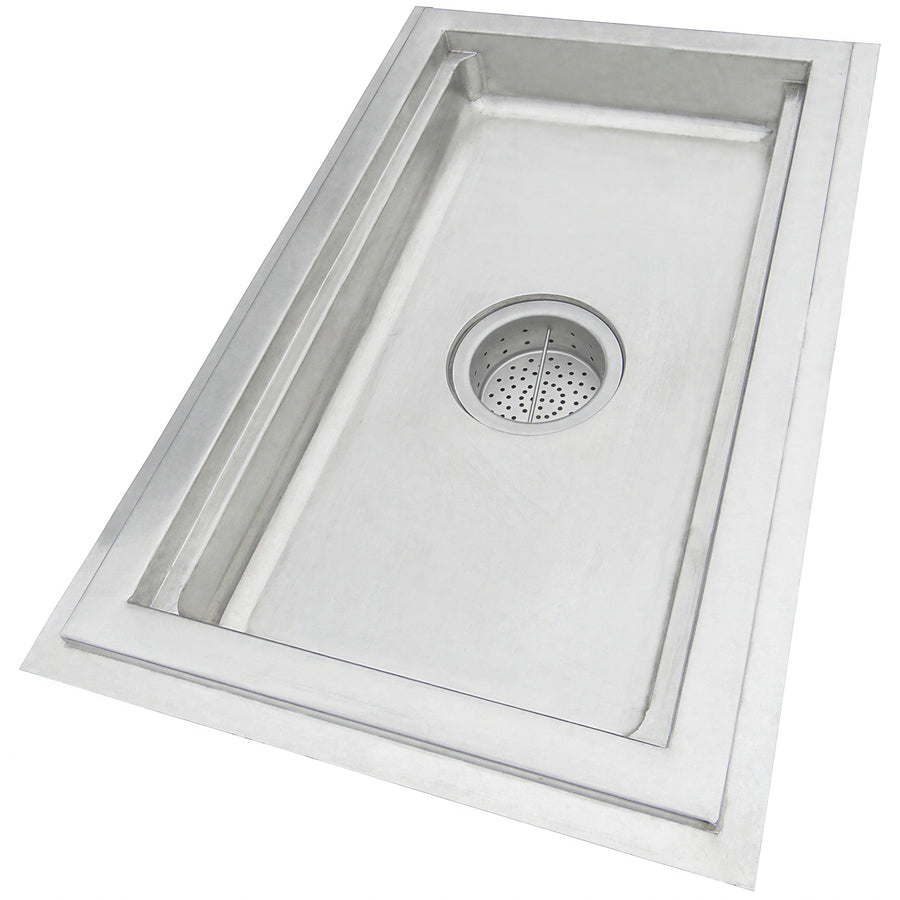

Play manufacturer video for IMC/Teddy FT30-12 Stainless Steel Floor Trough with Basket Strainer, 144"W x 30"D x 4" DeepIMC/Teddy FT30-12 Stainless Steel Floor Trough with Basket Strainer, 144"W x 30"D x 4" Deep
SKU: FT30-12
$6,355.20
The IMC/Teddy FT30-12 is a 144-inch-wide, 30-inch-deep, 4-inch-deep stainless steel floor trough with a basket strainer, 6-1/2-inch waste outlet, and 4-inch OD tailpiece.
- 14/304 stainless steel construction
- Integral coves and a 1/4-inch-per-foot pitch toward the waste outlet
- Recessed flange provides support for floor tile and a grout pocket
- TIG-welded, leak-proof joints with a brushed satin finish
Overall Dimensions:
144.0"W x 30.0"D x 4.0"HProduct Weight:
216.0 lbStainless steel construction
Constructed from 14/304 stainless steel.
Basket strainer
Includes a basket strainer.
Waste outlet
Features a 6-1/2-inch OD waste outlet.
Tailpiece
Includes a 4-inch OD tailpiece.
Drainage pitch
The trough is pitched 1/4 inch per foot toward the waste outlet.
Integral coves
Integral coves are part of the FT trough design.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Welded construction
Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
Overall width
144 in
Overall depth
30 in
Overall height
4 in
Material
14/304 stainless steel
Strainer
Basket strainer
Waste outlet
6-1/2 in OD
Tailpiece
4 in OD
Pan type
Non anti-splash
Drainage pitch
1/4 in per ft toward waste outlet
Product weight
216 lb
Frequently Asked Questions
The floor trough is 144 inches wide, 30 inches deep, and 4 inches high.
It is made of 14/304 stainless steel.
Yes. It includes a basket strainer.
The trough has a 6-1/2-inch OD waste outlet and a 4-inch OD tailpiece.
The product weight is 216 pounds.
