Play manufacturer video for IMC/Teddy FT24-25-SQ 14-Gauge Stainless Steel Floor Trough with Drain, Square Grid Grating, 300"W x 24"D x 4" DeepIMC/Teddy FT24-25-SQ 14-Gauge Stainless Steel Floor Trough with Drain, Square Grid Grating, 300"W x 24"D x 4" Deep

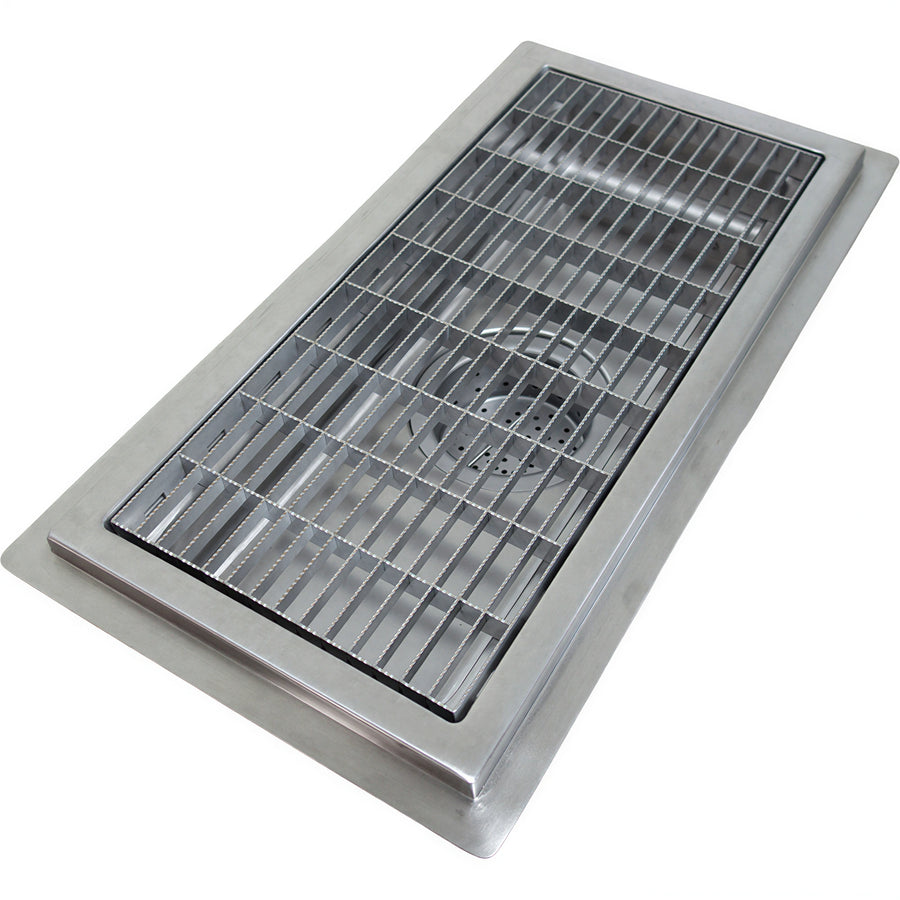

The IMC/Teddy FT24-25-SQ is a floor trough measuring 300 in wide x 24 in deep x 4 in overall height. It is specified with 14-gauge 304 stainless steel construction, a drain, and square grid grating.
- Drainage: Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
- Grating: Square grid grating with stainless steel construction and a serrated top surface.
- Installation: A recessed flange supports floor tile and provides a grout pocket.
- Construction: TIG-welded joints, brush satin exposed surfaces, and welded anchor straps.
Overall Dimensions:
300.0"W x 24.0"D x 4.0"HProduct Weight:
900.0 lbStainless steel construction
The trough is specified as 14-gauge 304 stainless steel.
Drainage design
Integral coves and a 1/4-inch-per-foot pitch lead toward a 6 1/2-inch OD waste outlet.
Square grid grating
The specified SQ grating uses stainless steel bars with a serrated top surface.
Perforated waste basket
A perforated waste basket is provided at each drain.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
Joints are TIG welded and leak-proof, with exposed surfaces finished in brush satin.
Floor anchoring
Welded anchor straps secure the trough to the floor.
Pan type
The listed pan type is non anti-splash.
