Play manufacturer video for IMC/Teddy FT24-17-SG-ADA Floor Trough with Drain, 204"W x 24"D x 4" Deep, 14 ga Stainless Steel, Subway GratingIMC/Teddy FT24-17-SG-ADA Floor Trough with Drain, 204"W x 24"D x 4" Deep, 14 ga Stainless Steel, Subway Grating
The IMC/Teddy FT24-17-SG-ADA is a floor trough measuring 204 in wide with a 24 in short-side depth and 4 in pan depth. It has a 14 ga 304 stainless steel trough, drain, and SG-ADA subway-style grating.
- Construction: 14 ga 304 stainless steel trough.
- Grating: SG-ADA subway-style stainless steel grating with bars spaced 1/2 in apart.
- Drainage: Includes a drain, 6.5 in OD waste outlet, 4 in OD tailpiece, and perforated waste basket.
- Pan type: Non anti-splash.
Overall Dimensions:
204.0"W x 24.0"D x 4.0"HProduct Weight:
612.0 lb14 ga 304 stainless steel construction
The trough is constructed from 14 ga 304 stainless steel.

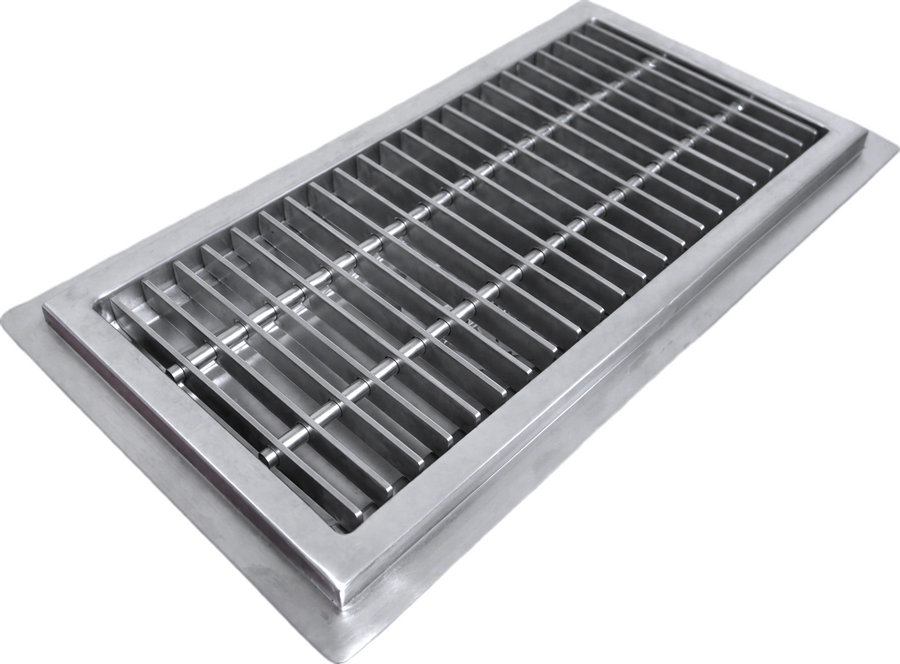

SG-ADA subway-style grating
The included SG-ADA grating is a stainless steel subway-style grating with bars spaced 1/2 in apart.
Included drain
The floor trough includes a drain with a 6.5 in OD waste outlet and 4 in OD tailpiece.
Perforated waste basket
A perforated waste basket is provided at the drain.
Integral coved design
The FT trough design includes integral coves and a pitch of 1/4 in per foot toward the waste outlet.
Non anti-splash pan
The specified pan type is non anti-splash.
TIG-welded joints
The FT trough specification identifies TIG-welded, leak-proof joints.
