Play manufacturer video for IMC/Teddy FT24-11-PFG-ADA Floor Trough Drain, 14 ga Stainless Steel, Blue Fiberglass Grating, 132"W x 24"D x 4" DeepIMC/Teddy FT24-11-PFG-ADA Floor Trough Drain, 14 ga Stainless Steel, Blue Fiberglass Grating, 132"W x 24"D x 4" Deep

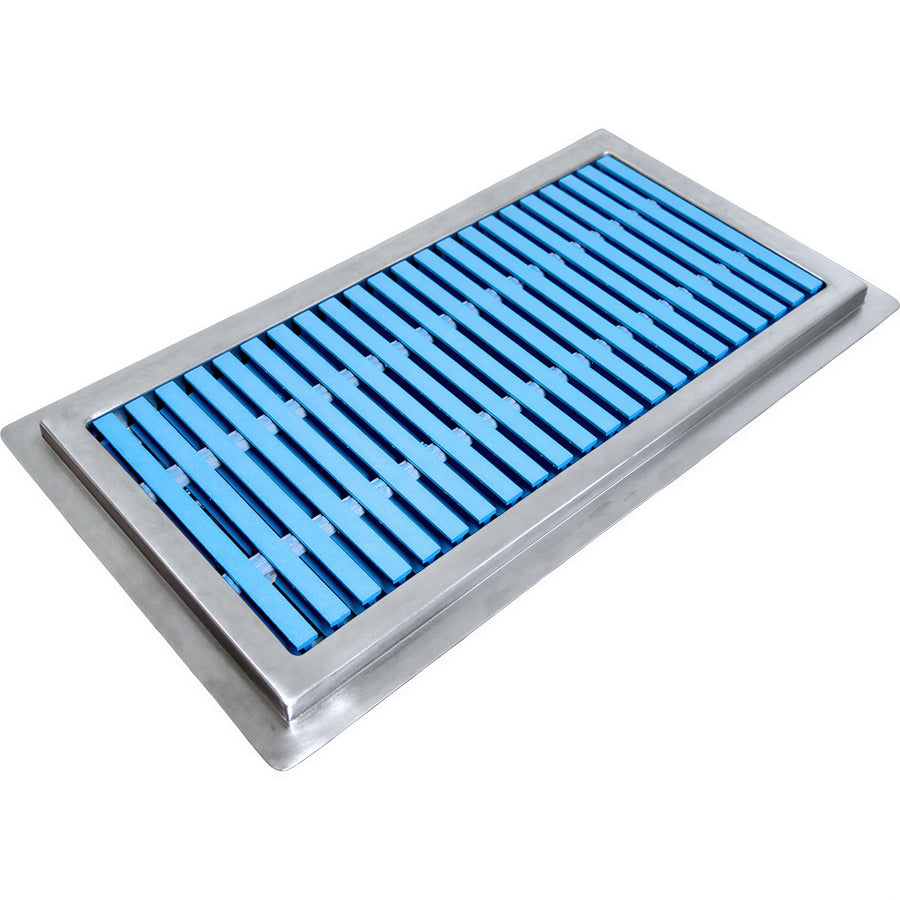

The FT24-11-PFG-ADA is an IMC/Teddy floor trough drain with a 14-gauge 304 stainless steel trough, drain, and blue PFG-ADA pultruded fiberglass grating.
- Measures 132 inches wide by 24 inches on the short side, with a 4-inch overall trough depth.
- The standard FT design includes integral coved corners, a recessed flange, and a 1-inch grating ledge.
- The trough is pitched 1/4 inch per foot toward the 6 1/2-inch OD waste outlet.
- Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
- The FT design includes a perforated waste basket at each drain and a 4-inch OD x 3-inch tailpiece.
Overall Dimensions:
132.0"W x 24.0"D x 4.0"HProduct Weight:
286.0 lb14-gauge 304 stainless steel
The trough is constructed from 14-gauge 304 stainless steel.
Blue PFG-ADA grating
The included grating is pultruded fiberglass with blue PFG-ADA grating bars spaced 0.4 inch apart.
Integral coved corners
The standard FT design has integral coved corners.
Pitched drainage
The trough is pitched 1/4 inch per foot toward a 6 1/2-inch OD waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
Perforated waste basket
A perforated waste basket is provided at each drain.
Non anti-splash pan
The authoritative pan type is listed as non anti-splash.
