Play manufacturer video for IMC/Teddy FT18-34-SG-ADA Stainless Steel Floor Trough with Drain, 408"W x 18"D x 4" Deep, 14 Ga, Subway GratingIMC/Teddy FT18-34-SG-ADA Stainless Steel Floor Trough with Drain, 408"W x 18"D x 4" Deep, 14 Ga, Subway Grating
The IMC/Teddy FT18-34-SG-ADA is a 408-inch-wide floor trough made from 14-gauge 304 stainless steel. It measures 18 inches front-to-back and 4 inches overall, with a drain and SG-ADA subway-style stainless steel grating.
- Grating: SG-ADA subway-style stainless steel grating with bars spaced 1/2 inch apart.
- Drainage: Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
- Waste outlet: Standard FT construction includes a 6 1/2-inch OD waste outlet with a 4-inch OD tailpiece.
- Installation: A recessed flange supports floor tile and provides a grout pocket.
- Construction: TIG-welded joints and brush-satin exposed surfaces.
Overall Dimensions:
408.0"W x 18.0"D x 4.0"HProduct Weight:
952.0 lb14-gauge 304 stainless steel
The trough is constructed from 14-gauge 304 stainless steel.

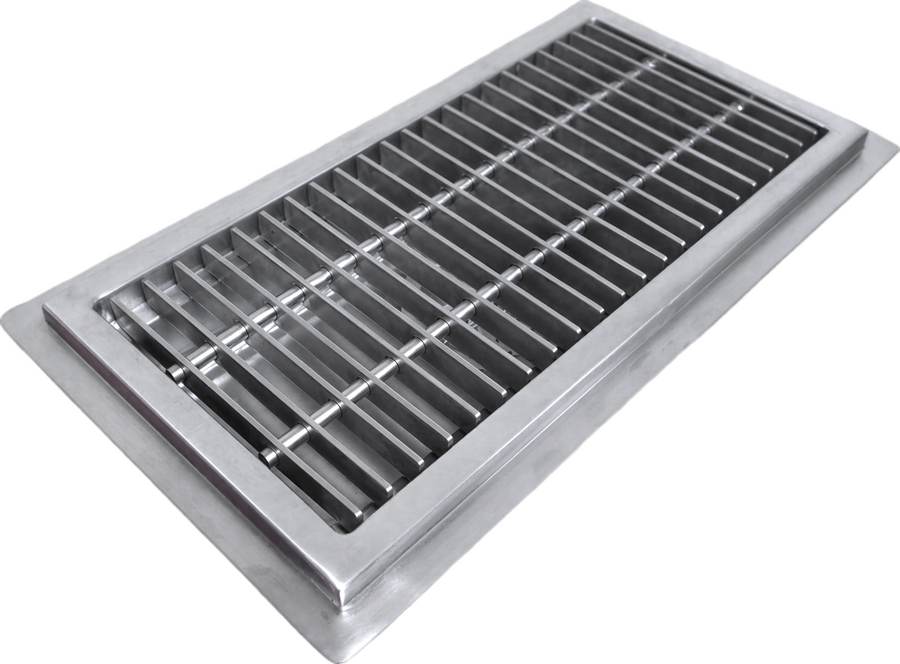

SG-ADA subway grating
The included stainless steel subway-style grating has SG-ADA bars spaced 1/2 in apart.
Integral drainage design
Integral coves and a 1/4 in per foot pitch direct water toward the waste outlet.
Waste outlet and tailpiece
Standard FT construction identifies a 6 1/2 in OD waste outlet with a 4 in OD tailpiece.
Perforated waste basket
A perforated waste basket is provided at each drain.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded construction
Joints are TIG welded and leak-proof, with exposed surfaces finished in brush satin.
