Play manufacturer video for IMC/Teddy FT18-28-PFG-ADA Floor Trough with Drain, 336"W x 18"D x 4" Deep, 14 ga Stainless Steel, Blue Fiberglass GratingIMC/Teddy FT18-28-PFG-ADA Floor Trough with Drain, 336"W x 18"D x 4" Deep, 14 ga Stainless Steel, Blue Fiberglass Grating

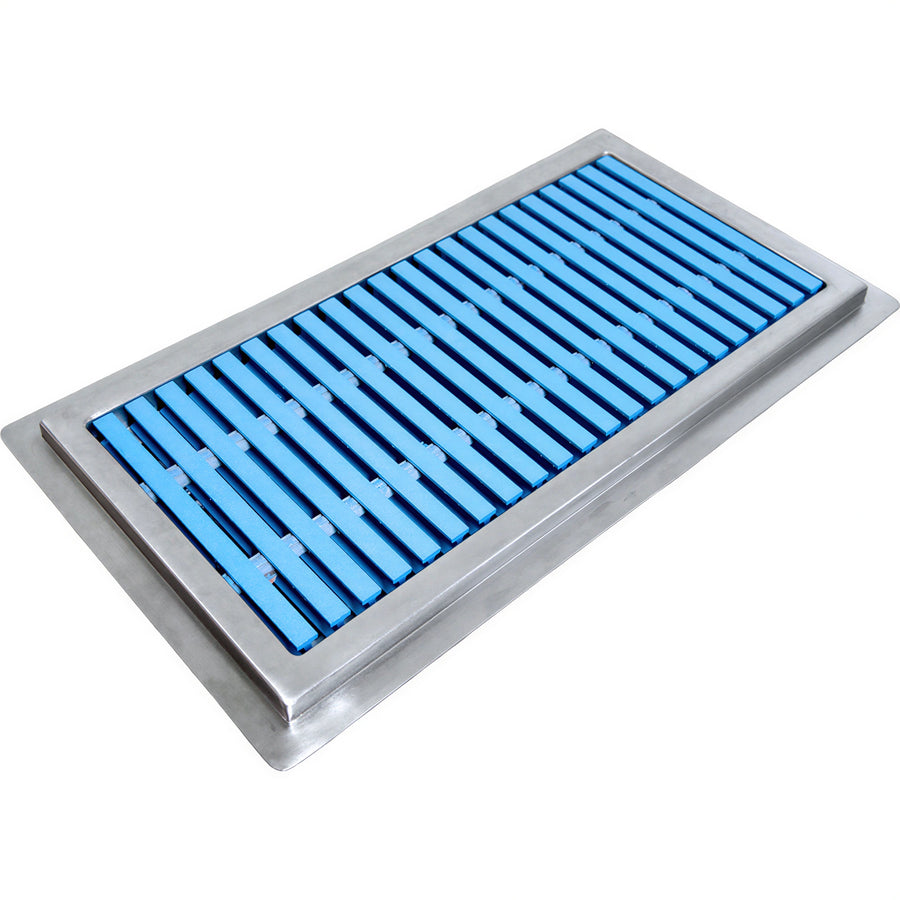

The IMC/Teddy FT18-28-PFG-ADA is a floor trough measuring 336 inches wide, 18 inches deep on the short side, and 4 inches deep overall. It is constructed from 14-gauge 304 stainless steel and includes a drain with blue PFG-ADA pultruded fiberglass grating.
- FT trough design includes integral coves and a 1/4-inch-per-foot pitch toward the waste outlet.
- The recessed flange supports floor tile and provides a grout pocket.
- Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
- PFG-ADA blue grating bars are spaced 0.4 inches apart.
Overall Dimensions:
336.0"W x 18.0"D x 4.0"HProduct Weight:
560.0 lb304 stainless steel construction
The trough is constructed from 14-gauge 304 stainless steel.
PFG-ADA fiberglass grating
The product includes blue PFG-ADA pultruded fiberglass grating with 0.4-inch bar spacing.
Integral drainage design
FT troughs use integral coves and a 1/4-inch-per-foot pitch toward the waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
FT trough joints are TIG welded and leak-proof.
Non-anti-splash pan
The authoritative pan type is listed as non-anti-splash.
