Play manufacturer video for IMC/Teddy FT18-24-SG-ADA Floor Trough with Drain, 288"W x 18"D x 4" Deep, 14/304 Stainless Steel, Subway GratingIMC/Teddy FT18-24-SG-ADA Floor Trough with Drain, 288"W x 18"D x 4" Deep, 14/304 Stainless Steel, Subway Grating
SKU: FT18-24-SG-ADA
$21,048.60
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

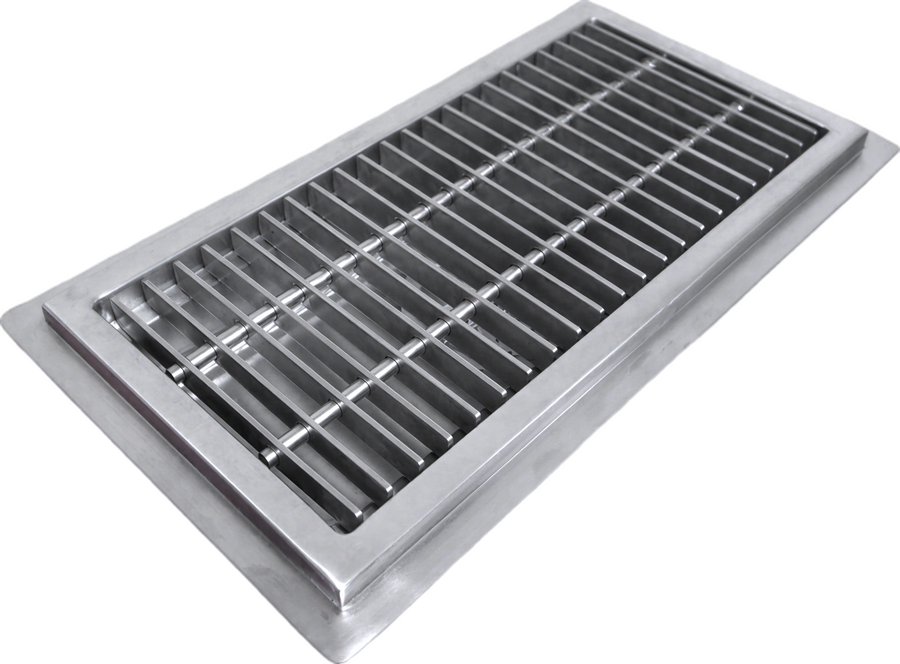

The IMC/Teddy FT18-24-SG-ADA is a 288-inch-wide floor trough with an 18-inch short-side depth and 4-inch pan depth. It is made from 14-gauge 304 stainless steel and includes a drain with SG-ADA subway-style grating.
- Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
- Recessed flange supports floor tile and provides a grout pocket.
- Exposed surfaces have a brushed satin finish.
Overall Dimensions:
288.0"W x 18.0"D x 4.0"HProduct Weight:
672.0 lbSG-ADA subway grating
SG-ADA compliant grating bars are spaced 1/2 in apart.
Stainless steel construction
The trough is constructed from 14-gauge 304 stainless steel.
Drainage pitch
The trough is pitched 1/4 in per foot toward the waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
Joints are TIG welded and leak-proof.
Non anti-splash pan
The pan type is identified as non anti-splash.
Product Type
Floor trough
Width (long side)
288 in
Depth (short side)
18 in
Pan Depth
4 in
Trough Construction
14 ga 304 stainless steel
Pan Type
Non anti-splash
Grate Type
SG-ADA subway-style grating
Grate Construction
Stainless steel grates
Drain
Included
Grating Bar Spacing
1/2 in
Drainage Pitch
1/4 in per foot toward waste outlet
Weight
672 lb
Certifications & Compliance
Frequently Asked Questions
It is 288 in wide, 18 in deep on the short side, and 4 in deep at the pan.
Yes. The FT18-24-SG-ADA includes a drain.
It uses SG-ADA subway-style grating with grating bars spaced 1/2 in apart.
No. The pan type is identified as non anti-splash.
The trough is made from 14-gauge 304 stainless steel.
The product weight is 672 lb.
