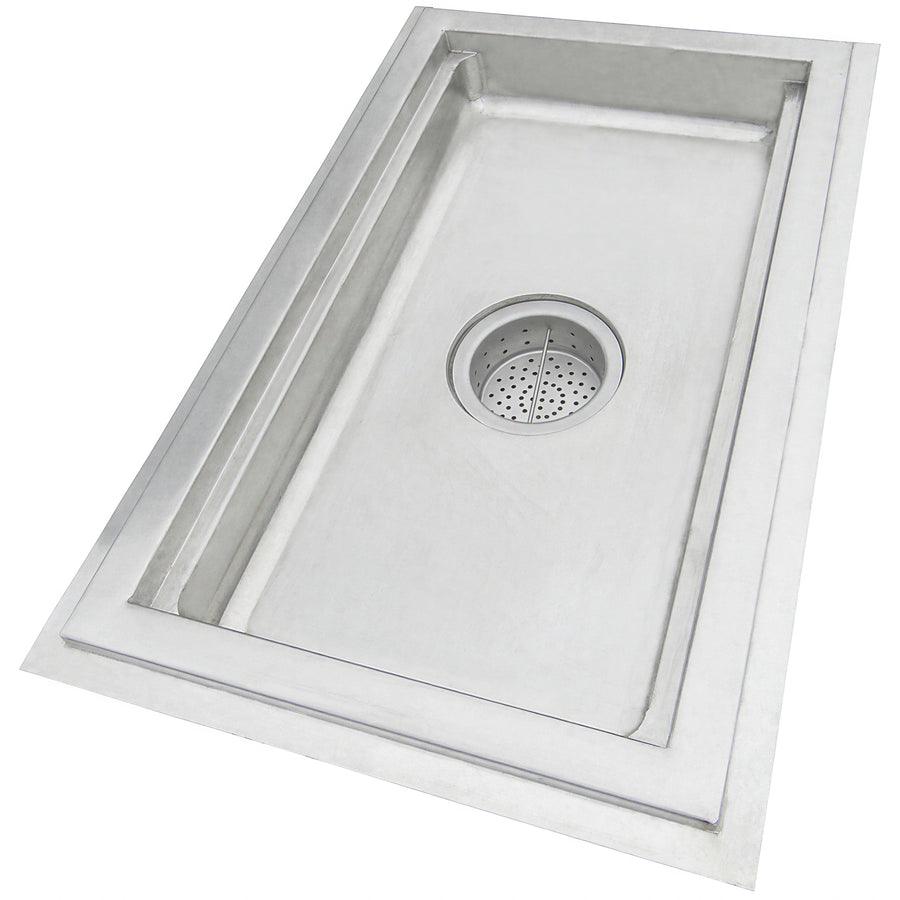

Play manufacturer video for IMC/Teddy FT18-21 Floor Trough, 252"W x 18"D x 4" Deep, 14/304 Stainless Steel, with Basket StrainerIMC/Teddy FT18-21 Floor Trough, 252"W x 18"D x 4" Deep, 14/304 Stainless Steel, with Basket Strainer
The IMC/Teddy FT18-21 is a standard floor trough measuring 252 inches wide by 18 inches on the short side, with a 4-inch pan depth. It is constructed from 14/304 stainless steel and includes a basket strainer.
The trough has a 6-1/2-inch waste outlet, 4-inch OD tailpiece, integral coves, and a 1/4-inch-per-foot pitch toward the waste outlet. Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
- Recessed flange supports floor tile and provides a grout pocket.
- Pan type is non anti-splash.
Overall Dimensions:
252.0"W x 18.0"D x 4.0"HProduct Weight:
252.0 lb14/304 stainless steel construction
The trough is constructed from 14 gauge 304 stainless steel.
Basket strainer
A basket strainer is included.
Waste outlet
The trough has a 6-1/2-inch waste outlet.
Tailpiece
Includes a 4-inch OD tailpiece.
Pitched drainage
The trough is pitched 1/4 inch per foot toward the waste outlet.
Integral coves
Integral coves are part of the FT floor trough design.
Welded construction
Joints are TIG welded and leak-proof.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
