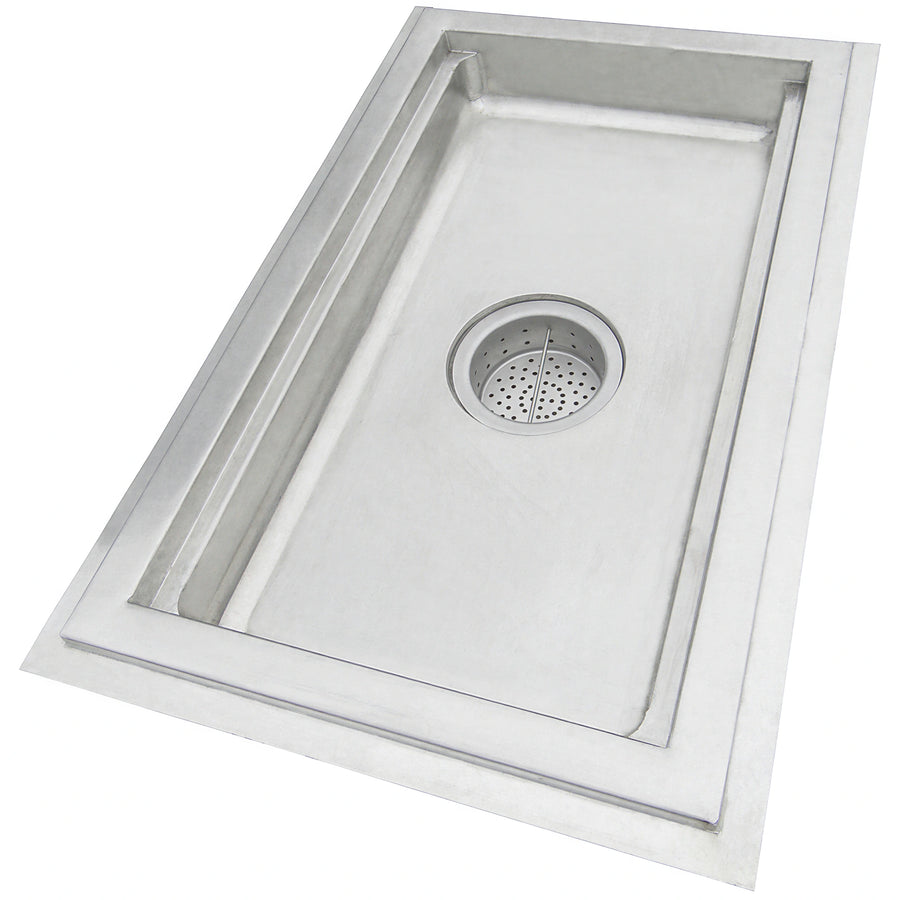

Play manufacturer video for IMC/Teddy FT18-16 Stainless Steel Floor Trough, 192"W x 18"D x 4" Deep, Basket Strainer, 6-1/2" Waste OutletIMC/Teddy FT18-16 Stainless Steel Floor Trough, 192"W x 18"D x 4" Deep, Basket Strainer, 6-1/2" Waste Outlet
SKU: FT18-16
$7,425.00
The IMC/Teddy FT18-16 is a 192-inch-wide stainless steel floor trough with an 18-inch overall depth and 4-inch overall height.
- Construction: 14-gauge 304 stainless steel
- Drainage: Integral coves and a 1/4-inch-per-foot pitch toward the waste outlet
- Waste connection: 6-1/2-inch OD waste outlet with a 4-inch OD tailpiece
- Included component: Basket strainer
- Pan type: Non anti-splash
Overall Dimensions:
192.0"W x 18.0"D x 4.0"HProduct Weight:
192.0 lbStainless steel construction
The trough is specified as 14-gauge 304 stainless steel.
Integral coved drainage
Integral coves and a 1/4-inch-per-foot pitch direct drainage toward the 6-1/2-inch OD waste outlet.
Waste outlet and tailpiece
The unit has a 6-1/2-inch OD waste outlet and a 4-inch OD tailpiece.
Basket strainer
A basket strainer is included.
Non anti-splash pan
The specified pan type is non anti-splash.
TIG-welded construction
The FT cutsheet specifies TIG-welded, leak-proof joints and brush-satin exposed surfaces.
Floor anchoring
Anchor straps are welded to the sides to secure the trough to the floor.
Overall width
192 in
Overall depth
18 in
Overall height
4 in
Weight
192.0 lb
Construction
14-gauge 304 stainless steel
Pan type
Non anti-splash
Waste outlet
6-1/2 in OD
Tailpiece
4 in OD
Basket strainer
Included
Drainage pitch
1/4 in per foot toward waste outlet
Frequently Asked Questions
The floor trough is 192 inches wide x 18 inches deep x 4 inches high.
It is specified as 14-gauge 304 stainless steel.
The product includes a basket strainer and has a 6-1/2-inch OD waste outlet with a 4-inch OD tailpiece.
The specified pan type is non anti-splash.
