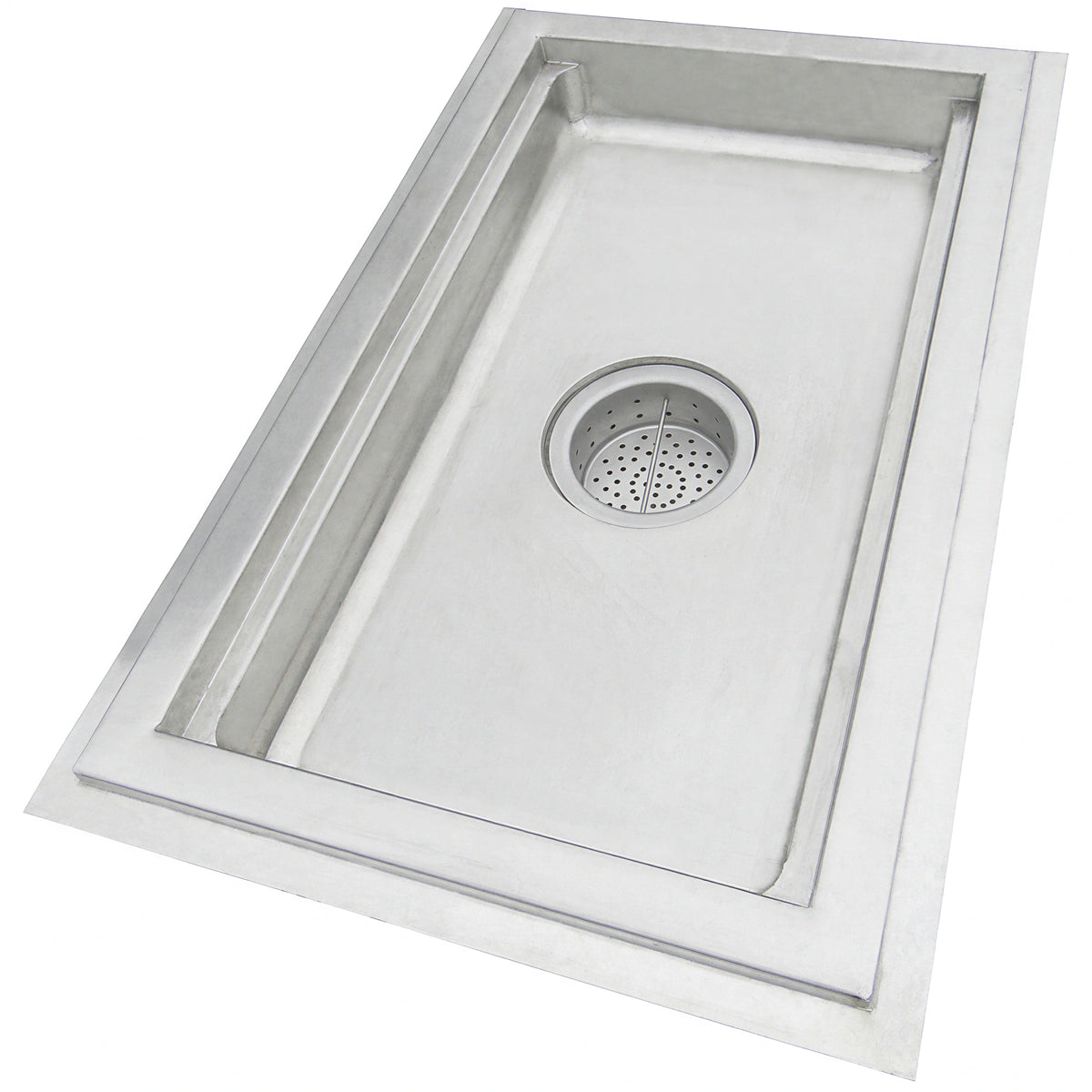

IMC/Teddy FT12-30 Floor Trough, 360"W x 12"D x 4" Deep, 14 ga 304 Stainless Steel, with Basket Strainer
$12,611.40
/each
Ships in 16–19 business days
- Dimensions
- 360.0"W × 12.0"D × 4.0"H
- Product Type
- Floor trough
- Overall Width
- 360 in
- Overall Depth
- 12 in
- Overall Height
- 4 in
- Material and Gauge
- 14-gauge 304 stainless steel
Specifications
Product Type
Floor trough
Overall Width
360 in
Overall Depth
12 in
Overall Height
4 in
Material and Gauge
14-gauge 304 stainless steel
Pan Type
Non anti-splash
Basket Strainer
Included
Waste Outlet
6-1/2 in
Tailpiece
4 in OD
Drainage Pitch
1/4 in per foot
Product Weight
300 lb
Description
The IMC/Teddy FT12-30 is a 360-inch floor trough constructed of 14-gauge 304 stainless steel. It is 12 inches wide and 4 inches deep overall, with a basket strainer, 6-1/2-inch waste outlet, and 4-inch OD tailpiece.
- Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
- TIG-welded joints provide a leak-proof trough construction.
- The recessed flange supports floor tile and provides a grout pocket.
- Exposed surfaces have a brush satin finish.
Overall Dimensions:
360.0"W x 12.0"D x 4.0"HProduct Weight:
300.0 lbStainless steel construction
Constructed of 14-gauge 304 stainless steel.
Basket strainer
Includes a basket strainer for the floor trough drain.
Pitched drainage
The trough is pitched 1/4 inch per foot toward the 6-1/2-inch waste outlet.
Integral coves
Integral coves support drainage toward the waste outlet.
TIG-welded joints
Joints are TIG welded and leak-proof.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Brush satin finish
Exposed surfaces are finished in brush satin.
Documentation
Frequently Asked Questions
The floor trough is 360 inches wide, 12 inches deep, and 4 inches high overall.
It is constructed of 14-gauge 304 stainless steel.
Yes. The FT12-30 is specified with a basket strainer.
It has a 6-1/2-inch waste outlet and a 4-inch OD tailpiece.
The authoritative product attributes identify the pan type as non anti-splash.
