Play manufacturer video for IMC/Teddy FT12-15-SQ Floor Trough with Drain, 180"W x 12"D x 4" Deep, 14-Gauge 304 Stainless Steel, Square Grid GratingIMC/Teddy FT12-15-SQ Floor Trough with Drain, 180"W x 12"D x 4" Deep, 14-Gauge 304 Stainless Steel, Square Grid Grating

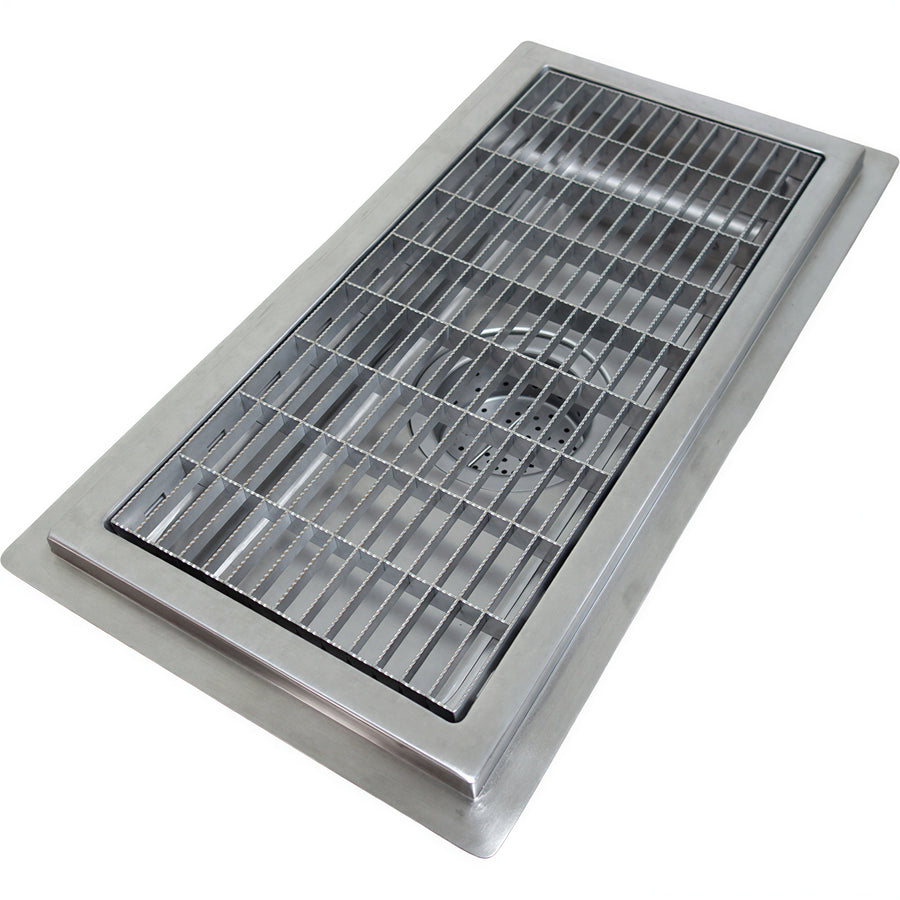

The IMC/Teddy FT12-15-SQ is a floor trough measuring 180 inches wide x 12 inches deep x 4 inches overall depth. It is constructed from 14-gauge 304 stainless steel and includes a drain with square grid grating.
- Integral coves and a pitched floor direct water toward the waste outlet.
- Recessed flange supports floor tile and provides a grout pocket.
- Joints are TIG welded, and exposed surfaces have a brushed satin finish.
- The pan type is non anti-splash.
Overall Dimensions:
180.0"W x 12.0"D x 4.0"HProduct Weight:
300.0 lb14-gauge 304 stainless steel
The trough is constructed from 14-gauge 304 stainless steel.
Drain assembly
The exact product is specified with a drain; FT floor trough specifications identify a perforated waste basket at each drain.
Square grid grating
Includes stainless steel square grid grating.
Pitched drainage design
Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Welded brushed-satin construction
Joints are TIG welded and leakproof, with brushed satin exposed surfaces.
