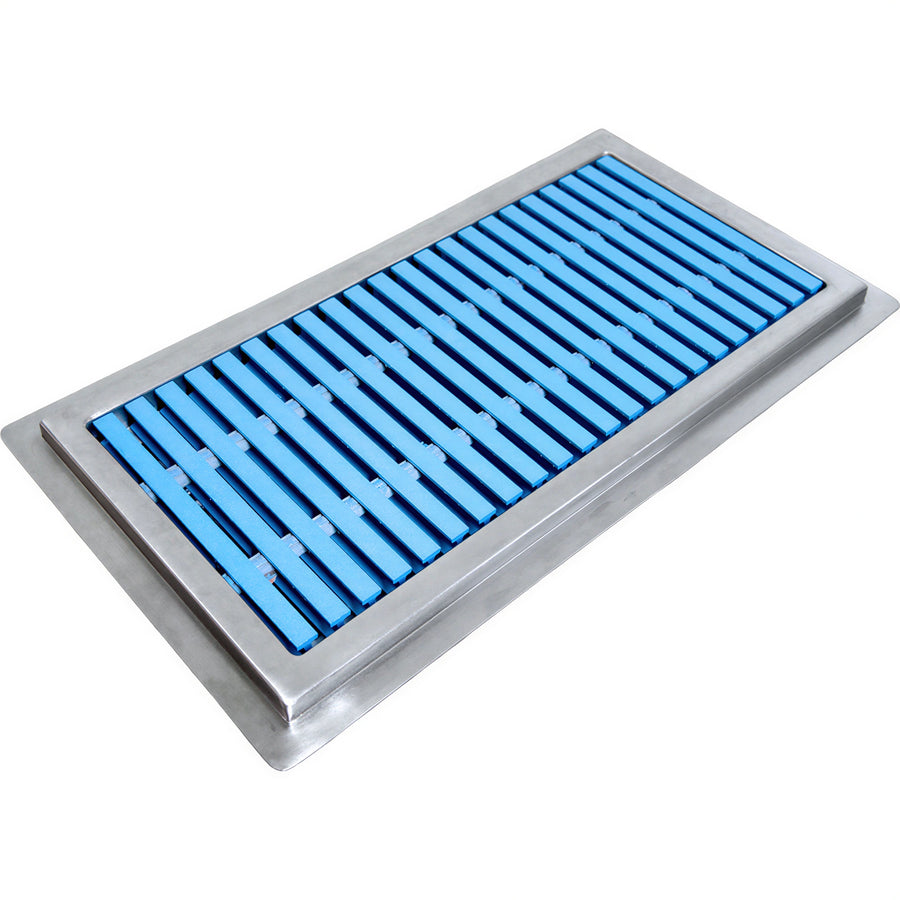

Play manufacturer video for IMC/Teddy FT12-15-PFG-ADA Floor Trough, 180"W x 12"D x 4" Deep, 14 ga Stainless Steel, Blue Pultruded Fiberglass GratingIMC/Teddy FT12-15-PFG-ADA Floor Trough, 180"W x 12"D x 4" Deep, 14 ga Stainless Steel, Blue Pultruded Fiberglass Grating
The IMC/Teddy FT12-15-PFG-ADA is an FT floor trough measuring 180 inches wide, with a 12-inch short-side dimension and 4-inch overall depth. It is constructed of 14-gauge 304 stainless steel and supplied with blue PFG-ADA pultruded fiberglass grating.
The trough includes a drain, integral coved corners, a pitch toward the waste outlet, and a recessed flange with a 1-inch grating ledge. Joints are TIG welded, and exposed surfaces have a brushed satin finish.
Overall Dimensions:
180.0"W x 12.0"D x 4.0"HProduct Weight:
240.0 lbStainless steel trough
Constructed of 14-gauge 304 stainless steel, identified in the FT documentation as Type 300 series stainless steel.
Blue PFG-ADA grating
Pultruded fiberglass grating with blue compliant grating bars spaced 0.4 inches apart.
Integrated drainage design
Includes a drain, integral coved corners, and a pitch toward the waste outlet.
Recessed flange
The recessed flange provides a grout pocket and includes a 1-inch-deep ledge for the grating.
TIG-welded joints
FT trough joints are TIG welded and documented as leak-proof.
Brushed satin finish
Exposed surfaces have a brushed satin finish.
