Play manufacturer video for IMC/Teddy FT-3096-SG-ADA Stainless Steel Floor Trough, 96"W x 30"D, 4" Deep, Subway GratingIMC/Teddy FT-3096-SG-ADA Stainless Steel Floor Trough, 96"W x 30"D, 4" Deep, Subway Grating
SKU: FT-3096-SG-ADA
$9,602.40
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

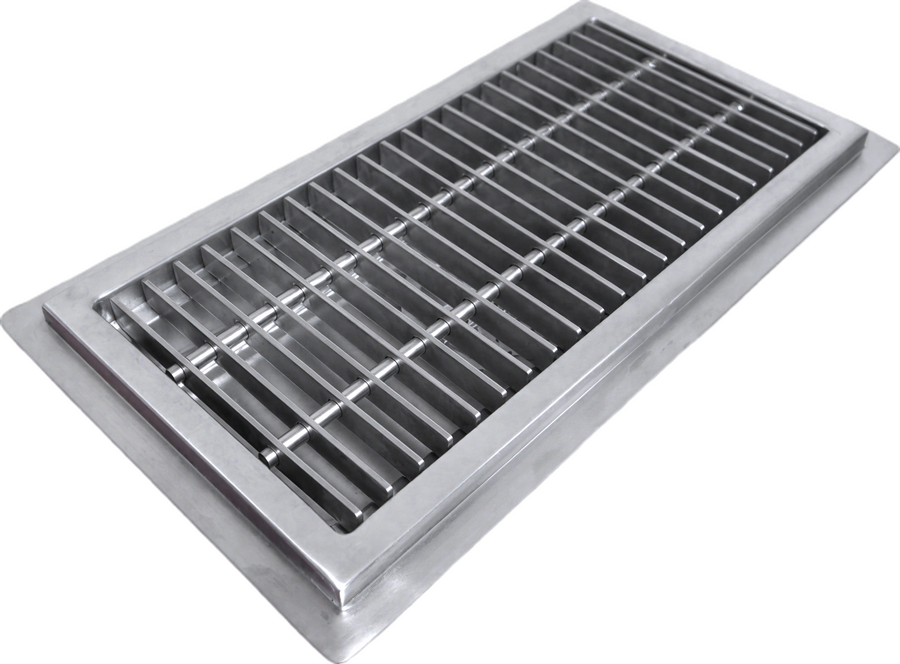

The IMC/Teddy FT-3096-SG-ADA is a 96-inch stainless steel floor trough with a 4-inch-deep receptacle and SG-ADA subway grating.
- Constructed of 14-gauge 304 stainless steel with a brushed satin finish.
- Includes one 6-1/2-inch waste outlet, perforated waste basket, 4-inch OD tailpiece, and anchor straps.
- Integral coves and a 1/4-inch-per-foot pitch direct drainage toward the waste outlet.
Overall Dimensions:
96.0"W x 30.0"D x 12.25"HProduct Weight:
488.0 lbStainless steel construction
The trough is constructed of 14-gauge 304 stainless steel.
SG-ADA subway grating
Includes SG-ADA subway-style stainless steel grating with bars spaced 1/2 inch apart.
Drainage design
Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
Waste outlet assembly
Includes one 6-1/2-inch OD waste outlet, perforated waste basket, and 4-inch OD tailpiece.
Anchor straps
Anchor straps are included to secure the trough to the floor.
Brushed satin finish
Exposed surfaces have a brushed satin finish.
TIG-welded joints
The floor trough joints are TIG welded.
Width
96 in
Depth
30 in
Height
12.25 in
Weight
488 lb
Receptacle depth
4 in
Trough construction
14-gauge 304 stainless steel
Finish
Brushed satin
Grating type
SG-ADA subway-style grating
Grating construction
Stainless steel
Grating bar spacing
1/2 in
Waste outlet
One 6-1/2 in OD outlet
Tailpiece
4 in OD
Waste basket
Perforated, one included
Anchor straps
Included
Drainage pitch
1/4 in per foot toward waste outlet
Pan type
Non anti-splash
Certifications & Compliance
Frequently Asked Questions
The floor trough is 96 inches wide, 30 inches deep, and 12.25 inches high, with a 4-inch-deep receptacle.
It includes SG-ADA subway-style stainless steel grating with bars spaced 1/2 inch apart.
The unit includes one 6-1/2-inch OD waste outlet, a perforated waste basket, and a 4-inch OD tailpiece.
Yes. Anchor straps are included.
The product is specified as NSF and Made in USA.
