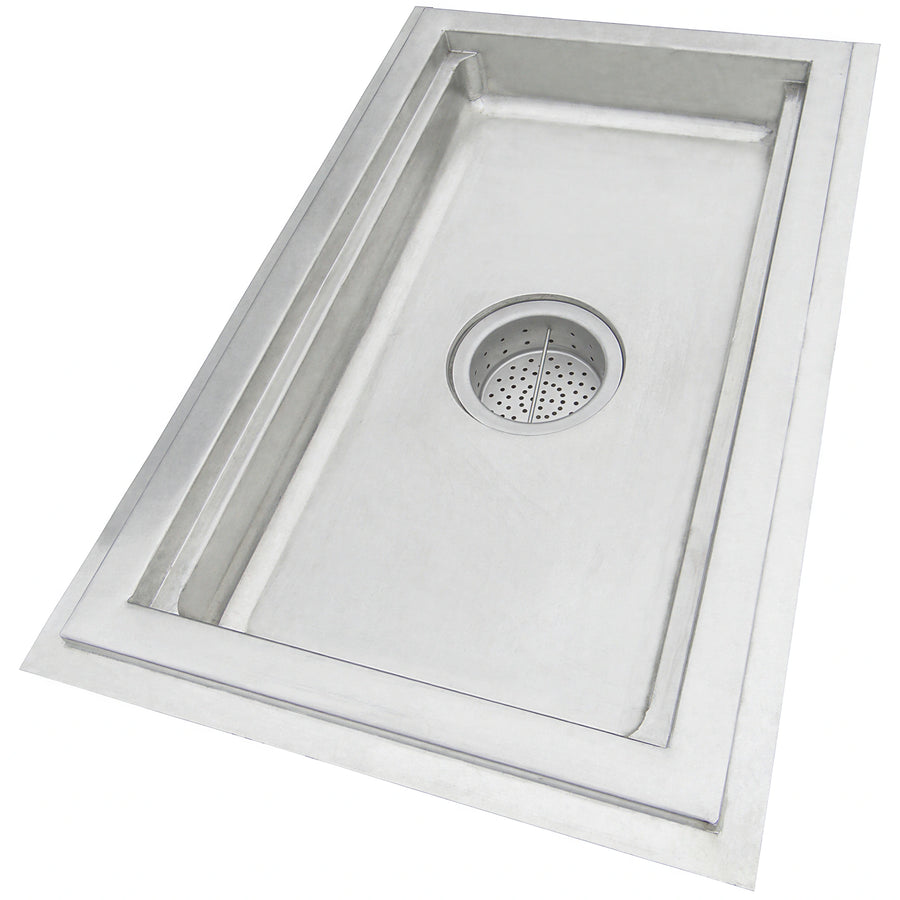

Play manufacturer video for IMC/Teddy FT-3084 Stainless Steel Floor Trough, 84"W x 30"D, 4" Deep Receptacle, 6-1/2" Waste Outlet with Perforated BasketIMC/Teddy FT-3084 Stainless Steel Floor Trough, 84"W x 30"D, 4" Deep Receptacle, 6-1/2" Waste Outlet with Perforated Basket
SKU: FT-3084
$4,300.20
The IMC/Teddy FT-3084 is an 84 in wide by 30 in deep floor trough with a 4 in deep receptacle, one 6.5 in OD waste outlet, and a 4 in OD tailpiece.
- Constructed of 14-gauge 304 stainless steel with a brushed satin finish.
- Includes a perforated waste basket and anchor straps.
- Features integral coves, a recessed flange, and a 1/4 in per foot pitch toward the waste outlet.
- Joints are TIG welded and leak-proof.
- Made in USA and NSF certified.
Overall Dimensions:
84.0"W x 30.0"D x 12.25"HProduct Weight:
150.0 lbStainless steel construction
Constructed of 14-gauge 304 stainless steel with a brushed satin finish.
Waste outlet and basket
Includes one 6.5 in OD waste outlet, a perforated waste basket, and a 4 in OD tailpiece.
Integral drainage design
Integral coves and a 1/4 in per foot pitch direct drainage toward the waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Anchor straps
Welded anchor straps are included to secure the trough to the floor.
TIG-welded joints
Joints are TIG welded and leak-proof.
Receptacle depth
4 in
Waste outlet count
1
Waste outlet diameter
6.5 in OD
Tailpiece diameter
4 in OD
Waste basket
Perforated
Material
304 stainless steel
Material gauge
14 gauge
Finish
Brushed satin
Drain pitch
1/4 in per ft toward waste outlet
Pan type
Non anti-splash
Certifications & Compliance
Frequently Asked Questions
The floor trough is 84 in wide, 30 in deep, and 12.25 in high.
The receptacle is 4 in deep.
It has one 6.5 in OD waste outlet with a perforated waste basket and a 4 in OD tailpiece.
It is made of 14-gauge 304 stainless steel and has a brushed satin finish.
Yes. Anchor straps are included.
Yes. The FT-3084 is NSF certified and Made in USA.
