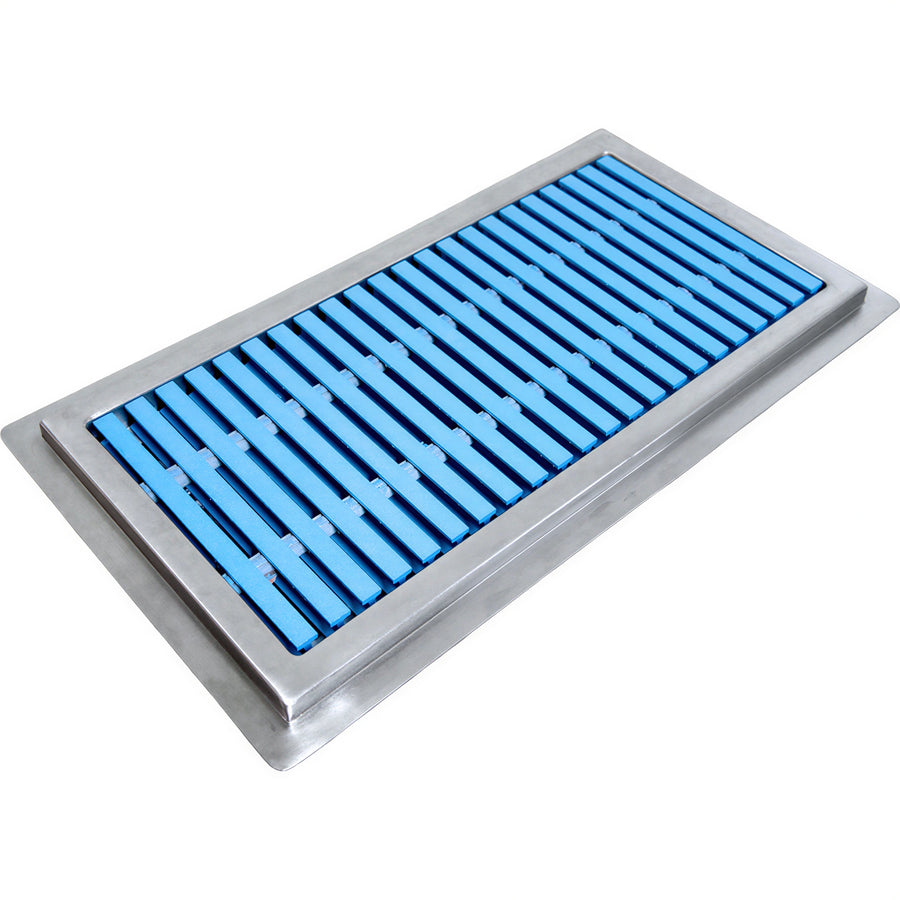

Play manufacturer video for IMC/Teddy FT-3048-PFG-ADA Floor Trough, 48"W x 30"D, 4" Deep, Stainless Steel, Blue Fiberglass GratingIMC/Teddy FT-3048-PFG-ADA Floor Trough, 48"W x 30"D, 4" Deep, Stainless Steel, Blue Fiberglass Grating
The IMC/Teddy FT-3048-PFG-ADA is a 48 in wide by 30 in deep floor trough with a 4 in deep receptacle and blue PFG-ADA pultruded fiberglass grating.
- Construction: 14 gauge 304 stainless steel with a brushed satin finish.
- Drainage: Integral coves and a 1/4 in per foot pitch direct drainage toward the 6-1/2 in waste outlet.
- Drain assembly: Includes a perforated waste basket and 4 in OD tailpiece.
- Installation: Includes anchor straps, with a recessed flange that supports floor tile and provides a grout pocket.
- Grating: Blue PFG-ADA pultruded fiberglass grating with 0.4 in bar spacing.
Overall Dimensions:
48.0"W x 30.0"D x 12.25"HProduct Weight:
244.0 lbBlue PFG-ADA fiberglass grating
Pultruded fiberglass grating in blue, with PFG-ADA bars spaced 0.4 in apart.
304 stainless steel construction
The trough is constructed from 14 gauge 304 stainless steel and has a brushed satin finish.
Integrated drainage
Integral coves and a 1/4 in per foot pitch direct flow toward the 6-1/2 in waste outlet.
Waste collection assembly
The exact model includes one 6-1/2 in waste outlet, a perforated waste basket and a 4 in OD tailpiece.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Anchor straps
Anchor straps are included for securing the trough to the floor.
