IMC/Teddy FT-3030-SG-ADA Stainless Steel Floor Trough, 30"W x 30"D, 4" Deep, Subway Grating

SKU: FT-3030-SG-ADA
$3,971.40
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

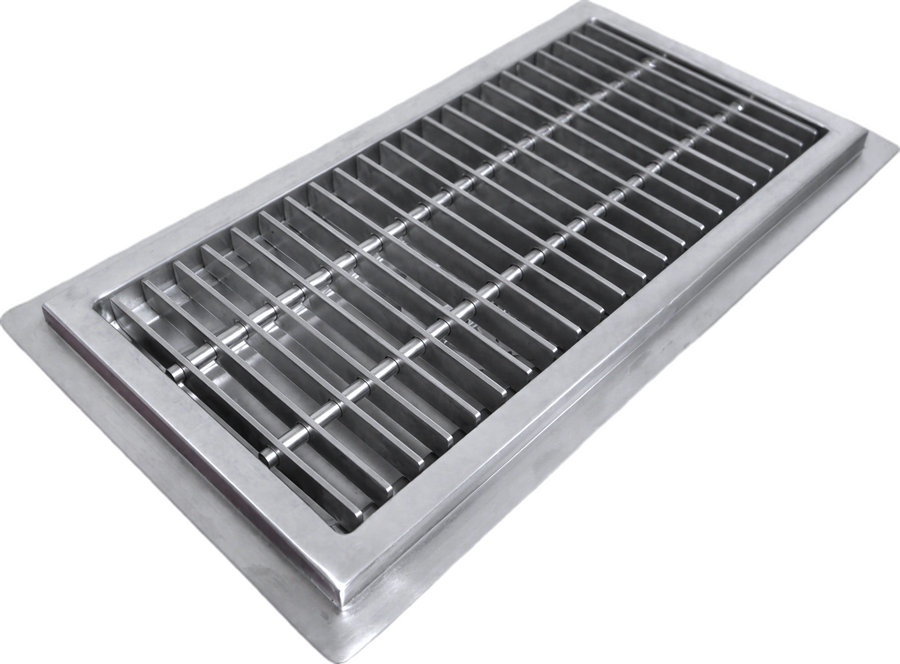

The IMC/Teddy FT-3030-SG-ADA is a 30 in x 30 in stainless steel floor trough with a 4 in deep receptacle and SG-ADA subway grating.

It includes one 6-1/2 in waste outlet with a perforated waste basket, a 4 in OD tailpiece, and anchor straps. The trough has a brushed satin finish and is made in the USA.

  • 14 gauge type 304 stainless steel construction
  • SG-ADA subway-style stainless steel grating
  • NSF

Overall Dimensions:

30.0"W x 30.0"D x 12.25"H

Product Weight:

153.0 lb

Stainless steel construction

The trough is constructed from 14 gauge type 304 stainless steel.

SG-ADA subway grating

The stainless steel SG-ADA grating uses 1/2 in bar spacing and is identified as ADA compliant in the manufacturer literature.

Waste outlet and basket

Includes one 6-1/2 in waste outlet with a perforated waste basket and 4 in OD tailpiece.

Anchor straps

Anchor straps are included to secure the trough to the floor.

Integral drainage design

The floor trough has integral coves and a 1/4 in per foot pitch toward the waste outlet.

Brushed satin finish

Exposed surfaces have a brushed satin finish.

Product Type Floor trough
Overall Width 30 in
Overall Depth 30 in
Receptacle Depth 4 in
Overall Height 12.25 in
Material and Gauge 14 gauge type 304 stainless steel
Finish Brushed satin
Grating Type SG-ADA subway-style grating
Grating Construction Type 300 series stainless steel bars
Grating Bar Spacing 1/2 in
Pan Type Non-anti-splash
Waste Outlet One 6-1/2 in outlet
Tailpiece 4 in OD
Waste Basket Perforated
Drain Pitch 1/4 in per foot toward the waste outlet
Anchor Straps Included
Product Weight 153 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download PDF Floor troughs brochure PDF Download

Frequently Asked Questions

The product measures 30 in wide x 30 in deep x 12.25 in high.
The receptacle is 4 in deep.
The product includes SG-ADA subway-style stainless steel grating with 1/2 in bar spacing. Manufacturer literature identifies the SG-ADA grating as ADA compliant.
It includes one 6-1/2 in waste outlet, a perforated waste basket, and a 4 in OD tailpiece.
Yes. Anchor straps are included.
The trough is made from 14 gauge type 304 stainless steel.
The authoritative product data identifies NSF and Made in USA.
