IMC/Teddy

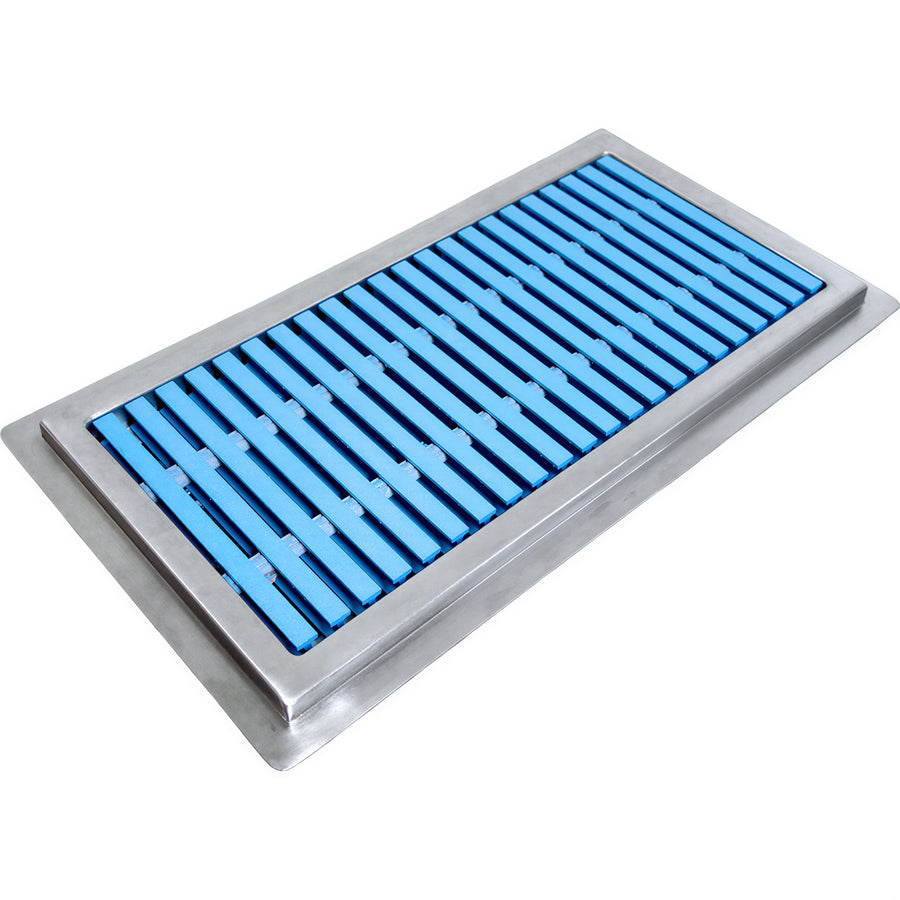

IMC/Teddy FT-2484-PFG-ADA Floor Trough, 84"W x 24"D x 4" Deep, 14 ga Stainless Steel, Blue Fiberglass Grate

SKU: FT-2484-PFG-ADA
$5,343.60
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

FT-2484-PFG-ADA is an IMC/Teddy FT floor trough measuring 84 in wide by 24 in deep with a 4 in deep receptacle.

The trough uses 14 ga 304 stainless steel construction with a brushed satin finish and includes blue PFG-ADA pultruded fiberglass grating.

  • One 6-1/2 in waste outlet with perforated waste basket
  • 4 in OD tailpiece
  • Anchor straps included
  • NSF listed and Made in USA

Overall Dimensions:

84.0"W x 24.0"D x 12.25"H

Product Weight:

322.0 lb

Stainless steel construction

The trough is constructed from 14 ga 304 stainless steel and has a brushed satin finish.

PFG-ADA fiberglass grating

Includes blue pultruded fiberglass grating identified as PFG-ADA; the grating bars are spaced 0.4 in apart and designated ADA compliant.

Drain outlet assembly

Includes one 6-1/2 in waste outlet, a perforated waste basket and a 4 in OD tailpiece.

Anchor straps

Anchor straps are included.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Trough type FT floor trough
Width 84 in
Depth 24 in
Height 12.25 in
Receptacle depth 4 in
Weight 322 lb
Construction 14 ga 304 stainless steel
Finish Brushed satin
Grating PFG-ADA pultruded fiberglass, blue
Grating spacing 0.4 in
Waste outlet 6-1/2 in with perforated waste basket
Tailpiece 4 in OD
Anchor straps Included
Pan type Non anti-splash

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The listed product dimensions are 84 in wide, 24 in deep and 12.25 in high.
The receptacle is 4 in deep.
The product includes blue PFG-ADA pultruded fiberglass grating. The PFG-ADA grating bars are spaced 0.4 in apart and designated ADA compliant.
The trough includes one 6-1/2 in waste outlet, a perforated waste basket and a 4 in OD tailpiece.
Yes. Anchor straps are included.
The authoritative category data identifies the pan type as non anti-splash.
