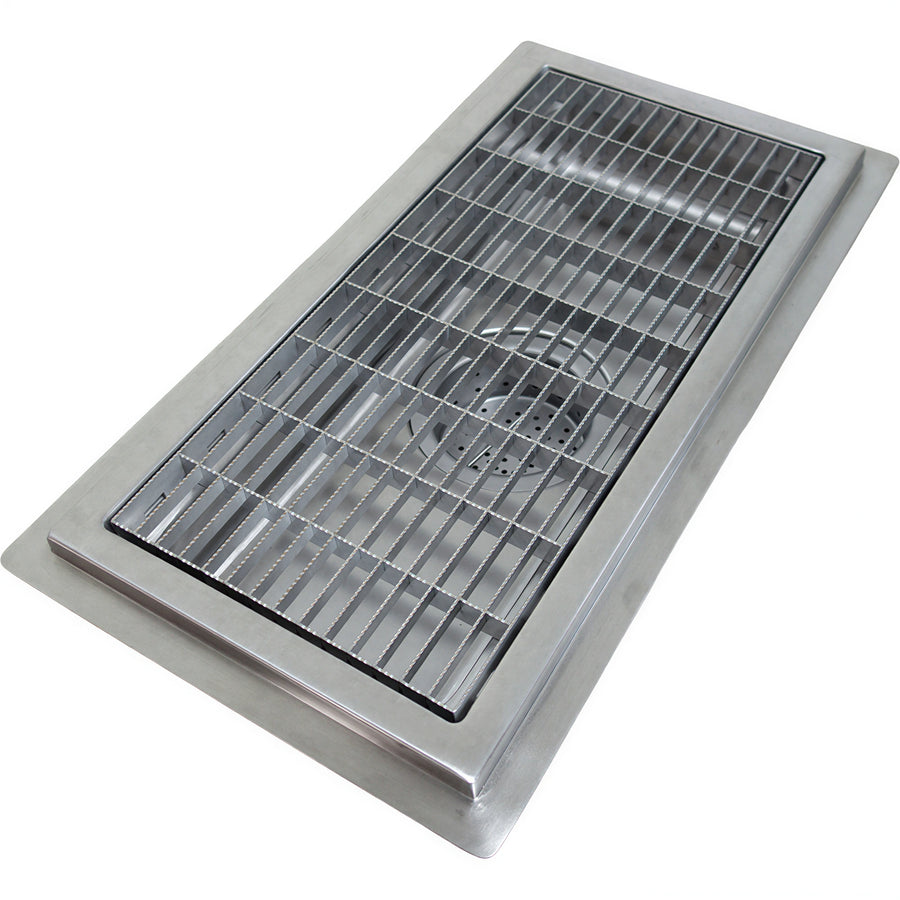

Play manufacturer video for IMC/Teddy FT-2430-SQ Stainless Steel Floor Trough, 30"W x 24"D x 4" Deep, Square Grid GratingIMC/Teddy FT-2430-SQ Stainless Steel Floor Trough, 30"W x 24"D x 4" Deep, Square Grid Grating
SKU: FT-2430-SQ
$2,791.20
The FT-2430-SQ is a 30 in wide by 24 in deep stainless steel floor trough with a 4 in deep receptacle and square grid grating.
- Constructed of 14 ga 304 stainless steel with a brushed satin finish.
- Includes one 6-1/2 in waste outlet, perforated waste basket, 4 in OD tailpiece, and anchor straps.
- Features integral coves and a pitch of 1/4 in per foot toward the waste outlet.
- Made in the USA and NSF certified.
Overall Dimensions:
30.0"W x 24.0"D x 12.25"HProduct Weight:
81.0 lbStainless steel construction
Constructed of 14 ga 304 stainless steel.
Square grid grating
Includes square grid grating made with stainless steel grates.
Deep receptacle
The trough receptacle is 4 in deep.
Waste outlet
Includes one 6-1/2 in waste outlet with a 4 in OD tailpiece.
Perforated waste basket
A perforated waste basket is included at the drain.
Anchor straps
Anchor straps are included to secure the trough to the floor.
Drainage design
Integral coves and a 1/4 in per foot pitch direct drainage toward the waste outlet.
Brushed satin finish
Exposed surfaces have a brushed satin finish.
Overall width
30 in
Overall depth
24 in
Overall height
12.25 in
Product weight
81 lb
Receptacle depth
4 in
Trough construction
14 ga stainless steel
Stainless steel grade
304
Finish
Brushed satin
Grate type
Square grid grating
Grate construction
Stainless steel grates
Waste outlet
1 x 6-1/2 in OD
Tailpiece
4 in OD
Waste basket
Perforated
Pan type
Non anti-splash
Anchor straps
Included
Certifications & Compliance
Frequently Asked Questions
The overall dimensions are 30 in wide, 24 in deep, and 12.25 in high. The product weight is 81 lb.
The receptacle is 4 in deep.
The product includes square grid grating with stainless steel grates.
It includes one 6-1/2 in waste outlet, a perforated waste basket, and a 4 in OD tailpiece.
Yes. Anchor straps are included.
The pan type is specified as non anti-splash.
The product is made in the USA.
