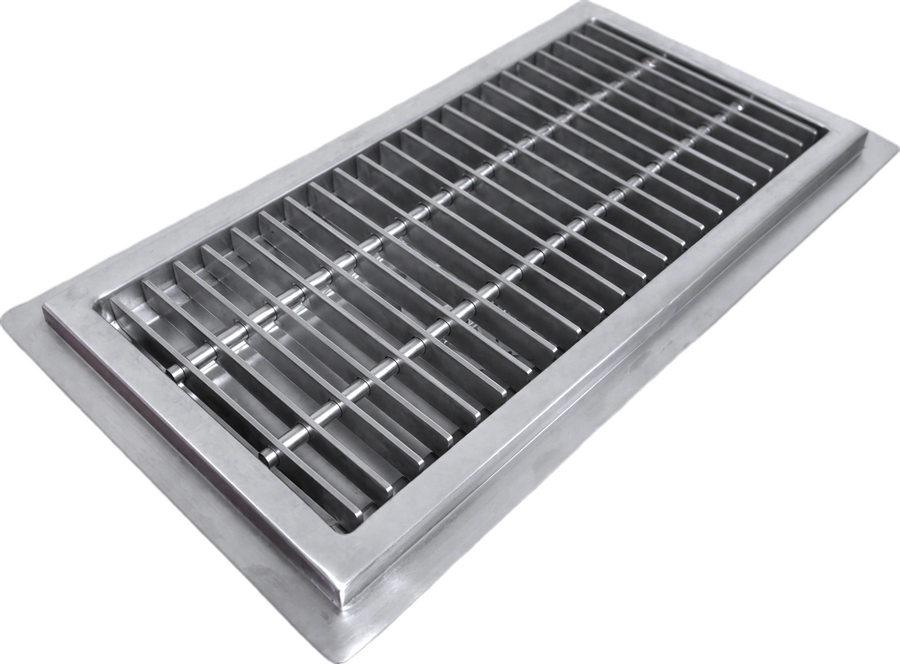

Play manufacturer video for IMC/Teddy FT-2430-SG-ADA Stainless Steel Floor Trough with ADA Subway Grating, 30"W x 24"D x 4" DeepIMC/Teddy FT-2430-SG-ADA Stainless Steel Floor Trough with ADA Subway Grating, 30"W x 24"D x 4" Deep
The IMC/Teddy FT-2430-SG-ADA is a 30 in wide by 24 in deep floor trough with a 4 in deep receptacle and SG-ADA subway-style stainless steel grating.
It is constructed from 14 gauge 304 stainless steel with a brushed satin finish. The unit includes one 6-1/2 in waste outlet, a perforated waste basket, a 4 in OD tailpiece, and anchor straps.
- Integral coves and a 1/4 in per foot pitch direct drainage toward the waste outlet.
- The recessed flange supports floor tile and provides a grout pocket.
Overall Dimensions:
30.0"W x 24.0"D x 12.25"HProduct Weight:
115.0 lbSG-ADA subway grating
Stainless steel subway-style grating with SG-ADA grating bars spaced 1/2 in apart.
Stainless steel construction
14 gauge 304 stainless steel construction with a brushed satin finish.
Waste outlet assembly
One 6-1/2 in waste outlet with a perforated waste basket and 4 in OD tailpiece.
Drainage design
Integral coves and a 1/4 in per foot pitch toward the waste outlet.
Anchor straps
Anchor straps are included to secure the trough to the floor.
Recessed flange
Recessed flange supports floor tile and provides a grout pocket.
