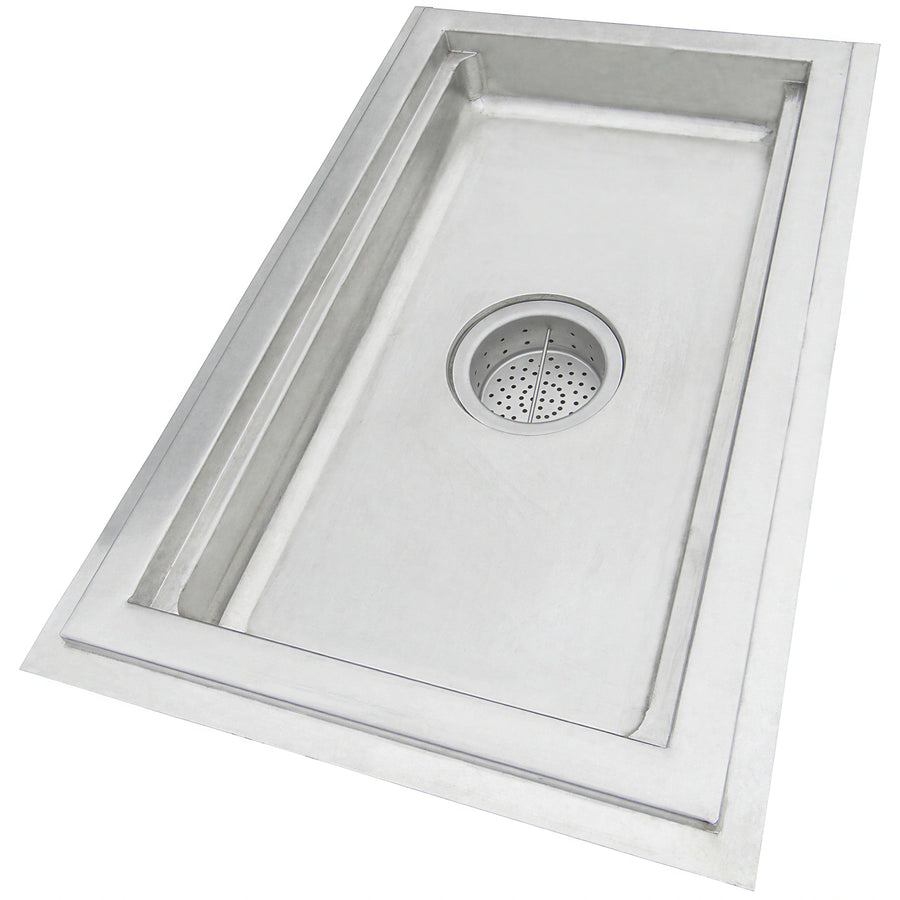

Play manufacturer video for IMC/Teddy FT-2430 Stainless Steel Floor Trough, 30"W x 24"D, 4" Deep, 6-1/2" Waste Outlet with Perforated BasketIMC/Teddy FT-2430 Stainless Steel Floor Trough, 30"W x 24"D, 4" Deep, 6-1/2" Waste Outlet with Perforated Basket
SKU: FT-2430
$2,121.60
The IMC/Teddy FT-2430 is a standard stainless steel floor trough with a 4 in deep receptacle, one 6-1/2 in waste outlet, and a perforated waste basket.
- 14/304 stainless steel construction with a brushed satin finish
- Includes a 4 in OD tailpiece and anchor straps
- Integral coves and a 1/4 in per foot pitch direct drainage toward the waste outlet
- Made in USA and NSF certified
Overall Dimensions:
30.0"W x 24.0"D x 12.25"HProduct Weight:
37.0 lbStainless steel construction
Constructed from 14/304 stainless steel with a brushed satin finish.
Drainage design
Integral coves and a 1/4 in per foot pitch direct drainage toward the 6-1/2 in waste outlet.
Waste outlet
Includes one 6-1/2 in waste outlet with a perforated waste basket.
Tailpiece
Includes a 4 in OD tailpiece.
Anchor straps
Welded anchor straps are included to secure the trough to the floor.
Receptacle depth
The trough has a 4 in deep receptacle.
Product type
Standard floor trough
Trough construction
14/304 stainless steel
Receptacle depth
4 in
Waste outlet
(1) 6-1/2 in waste outlet
Waste basket
Perforated; included
Tailpiece
4 in OD; included
Finish
Brushed satin
Anchor straps
Included
Pan type
Non anti-splash
Pitch to waste outlet
1/4 in per foot
Certifications & Compliance
Frequently Asked Questions
The listed product dimensions are 30 in wide, 24 in deep, and 12.25 in high, with a listed weight of 37 lb.
The receptacle is 4 in deep.
The FT-2430 has one 6-1/2 in waste outlet with a perforated waste basket and includes a 4 in OD tailpiece.
It is constructed from 14/304 stainless steel and has a brushed satin finish.
Yes. Anchor straps are included.
Yes. NSF is listed as an authoritative certification for this product.
The product is identified as Made in USA.
