IMC/Teddy

IMC/Teddy FT-2184-PFG Stainless Steel Floor Trough with Fiberglass Grating, 84"W x 21"D x 4" Deep

SKU: FT-2184-PFG
$5,130.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

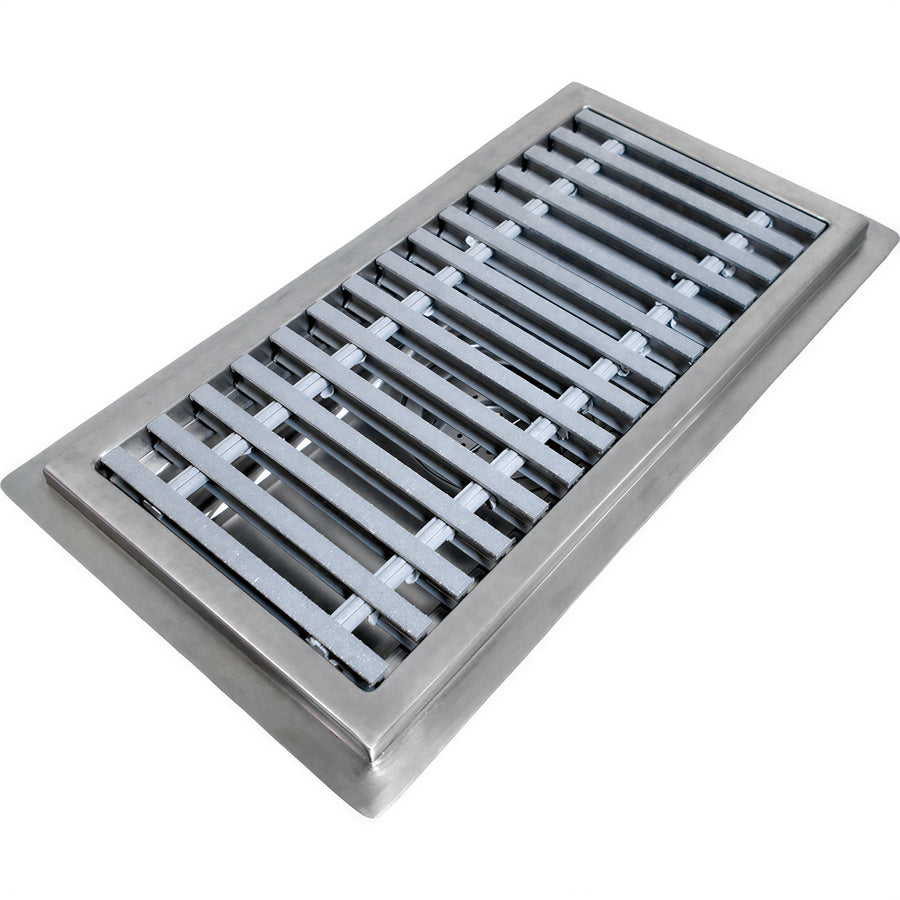

The IMC/Teddy FT-2184-PFG is an 84-inch stainless steel floor trough with a 4-inch-deep receptacle and grey pultruded fiberglass grating.

  • Constructed of 14 gauge 304 stainless steel with a brushed satin finish.
  • Includes one 6-1/2-inch waste outlet, perforated waste basket, 4-inch OD tailpiece, and anchor straps.
  • The trough is pitched 1/4 inch per foot toward the waste outlet.

Overall Dimensions:

84.0"W x 21.0"D x 12.25"H

Product Weight:

322.0 lb

Stainless steel construction

Constructed of 14 gauge 304 stainless steel with a brushed satin finish.

Pultruded fiberglass grating

Includes grey pultruded fiberglass grating.

Waste outlet assembly

Includes one 6-1/2-inch waste outlet, perforated waste basket, and 4-inch OD tailpiece.

Anchor straps

Welded anchor straps are included to secure the trough to the floor.

Pitched drainage

The trough is pitched 1/4 inch per foot toward the waste outlet.

Pan type

Non anti-splash pan design.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Product type Standard floor trough
Receptacle depth 4 in
Waste outlet One 6-1/2 in OD outlet
Tailpiece 4 in OD
Waste basket Perforated, included
Anchor straps Included
Construction 14 gauge 304 stainless steel
Finish Brushed satin
Grating construction Pultruded fiberglass
Grating color Grey
Pan type Non anti-splash
Drainage pitch 1/4 in per foot toward waste outlet

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download PDF Floor troughs brochure PDF Download

Frequently Asked Questions

The floor trough is 84 inches wide, 21 inches deep, and 12.25 inches high, with a 4-inch-deep receptacle.
It is constructed of 14 gauge 304 stainless steel with a brushed satin finish.
The unit includes grey pultruded fiberglass grating.
It includes one 6-1/2-inch OD waste outlet, a perforated waste basket, a 4-inch OD tailpiece, and anchor straps.
