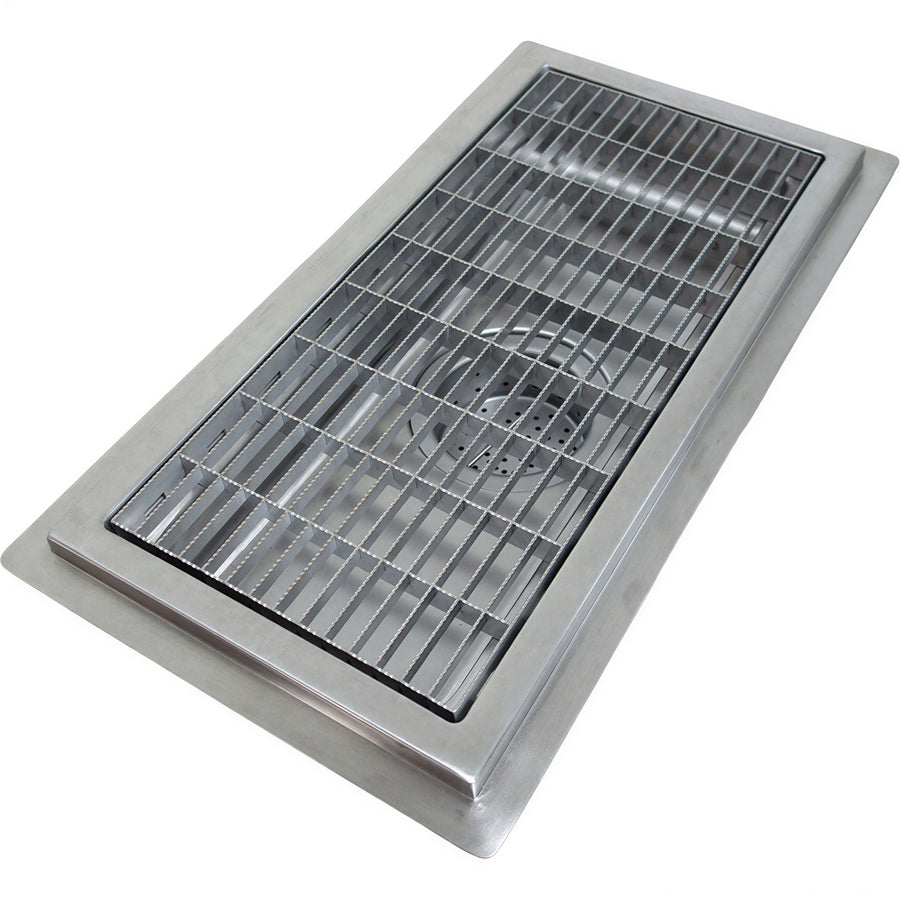

Play manufacturer video for IMC/Teddy FT-2172-SQ 14-Gauge Stainless Steel Floor Trough, 72"W x 21"D x 4" Deep, Square Grid GratingIMC/Teddy FT-2172-SQ 14-Gauge Stainless Steel Floor Trough, 72"W x 21"D x 4" Deep, Square Grid Grating
The IMC/Teddy FT-2172-SQ floor trough measures 72 inches wide by 21 inches deep and has a 4-inch-deep receptacle. It is constructed of 14-gauge 304 stainless steel with a brushed satin finish and SQ square grid grating.
The trough includes one 6-1/2-inch waste outlet, a perforated waste basket, a 4-inch OD tailpiece, and anchor straps. FT trough construction includes integral coves, a 1/4-inch-per-foot pitch toward the waste outlet, and a recessed flange with a grout pocket.
- 14-gauge 304 stainless steel construction
- SQ square grid grating
- One 6-1/2-inch waste outlet
- Perforated waste basket and 4-inch OD tailpiece
- Anchor straps included
- Brushed satin finish
Overall Dimensions:
72.0"W x 21.0"D x 12.25"HProduct Weight:
194.0 lbStainless steel construction
Constructed of 14-gauge 304 stainless steel with a brushed satin finish.
SQ square grid grating
Specified with SQ square grid grating and stainless steel grates.
Waste outlet assembly
Includes one 6-1/2-inch waste outlet, a perforated waste basket, and a 4-inch OD tailpiece.
Anchor straps
Anchor straps are included to secure the trough to the floor.
Drainage design
FT trough construction includes integral coves and a 1/4-inch-per-foot pitch toward the waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Pan type
Specified as a non-anti-splash pan.
