Play manufacturer video for IMC/Teddy FT-2124-SQ Stainless Steel Floor Trough, 24"W x 21"D x 4" Deep, Square Grid GratingIMC/Teddy FT-2124-SQ Stainless Steel Floor Trough, 24"W x 21"D x 4" Deep, Square Grid Grating
SKU: FT-2124-SQ
$2,552.40

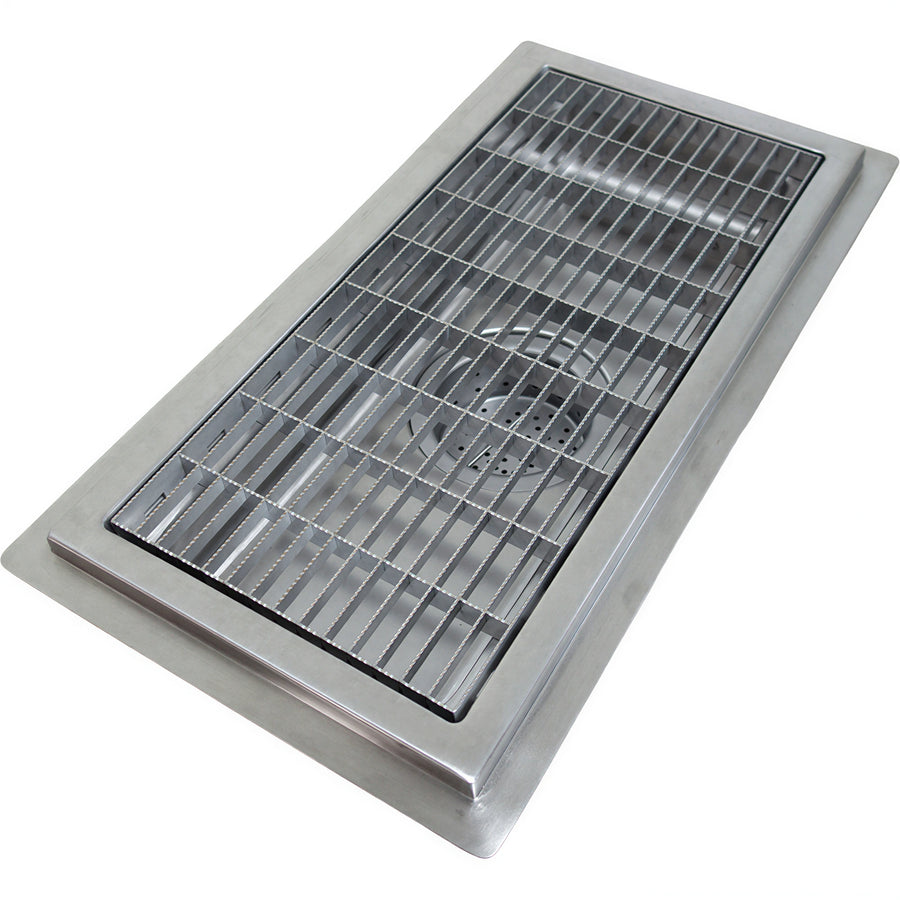

The IMC/Teddy FT-2124-SQ is a 24 in wide by 21 in deep floor trough with a 4 in deep receptacle and square grid grating.
- Constructed of 14/304 stainless steel with a brushed satin finish.
- Includes a 6-1/2 in waste outlet, perforated waste basket, 4 in OD tailpiece, and anchor straps.
- Features integral coves and a 1/4 in per foot pitch toward the waste outlet.
- Includes a recessed flange and 1 in deep ledge for grating support.
Overall Dimensions:
24.0"W x 21.0"D x 12.25"HProduct Weight:
65.0 lbStainless steel construction
Constructed of 14/304 stainless steel with a brushed satin finish.
Square grid grating
Includes square grid grating constructed with stainless steel grates.
Waste outlet assembly
Includes one 6-1/2 in waste outlet, perforated waste basket, and 4 in OD tailpiece.
Drainage design
Integral coves and a 1/4 in per foot pitch direct drainage toward the waste outlet.
Floor installation support
Welded anchor straps secure the trough to the floor.
Flange and grating ledge
A recessed flange supports floor tile and provides a grout pocket; the integrated ledge is 1 in deep for IMC grating.
Welded construction
Joints are TIG welded and leak-proof.
Overall width
24 in
Overall depth
21 in
Overall height
12.25 in
Receptacle depth
4 in
Product weight
65 lb
Construction
14/304 stainless steel
Trough gauge
14 ga
Finish
Brushed satin
Grating type
Square grid grating
Grate construction
Stainless steel grates
Pan type
Non anti-splash
Waste outlet
6-1/2 in
Tailpiece
4 in OD
Waste basket
Perforated
Anchor straps
Included
Certifications & Compliance
Frequently Asked Questions
The product is 24 in wide, 21 in deep, and 12.25 in high, with a 4 in deep receptacle.
It includes square grid grating with stainless steel grates.
The trough includes one 6-1/2 in waste outlet, a perforated waste basket, and a 4 in OD tailpiece.
It has 14/304 stainless steel construction with a brushed satin finish.
Yes. Anchor straps are included.
