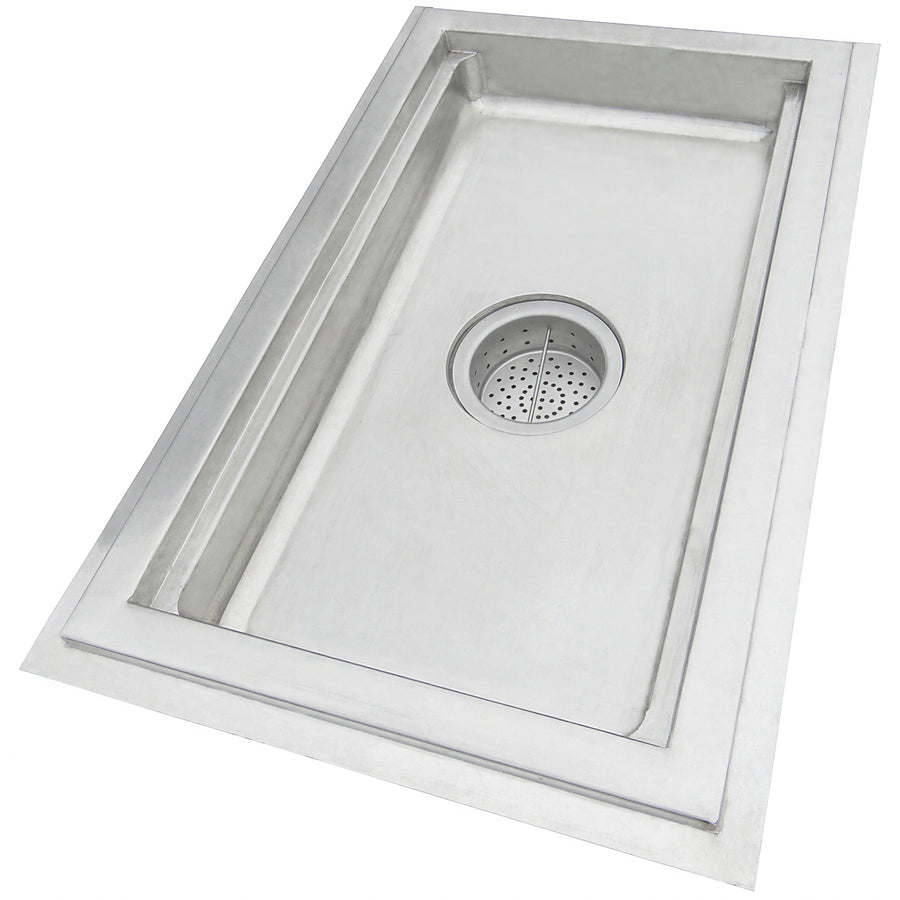

Play manufacturer video for IMC/Teddy FT-1896 Stainless Steel Floor Trough, 96"W x 18"D, 4" Deep, 6-1/2" Waste Outlet with Perforated BasketIMC/Teddy FT-1896 Stainless Steel Floor Trough, 96"W x 18"D, 4" Deep, 6-1/2" Waste Outlet with Perforated Basket
The IMC/Teddy FT-1896 is a floor trough measuring 96 inches wide by 18 inches deep, with a 4-inch-deep receptacle.
It is constructed from 14-gauge 304 stainless steel with a brushed satin finish and includes one 6-1/2-inch waste outlet, a perforated waste basket, a 4-inch OD tailpiece, and anchor straps.
- Integral coved corners and a 1/4-inch-per-foot pitch direct drainage toward the waste outlet.
- TIG-welded joints are specified as leak-proof.
- Recessed flange supports floor tile and provides a grout pocket.
Overall Dimensions:
96.0"W x 18.0"D x 12.25"HProduct Weight:
83.0 lbStainless steel construction
Constructed from 14-gauge 304 stainless steel.
Waste outlet assembly
Includes one 6-1/2-inch OD waste outlet, perforated waste basket, and 4-inch OD tailpiece.
Pitched drainage
The trough is pitched 1/4 inch per foot toward the waste outlet.
Integral coves
Integral coved corners are part of the floor trough design.
Anchor straps
Anchor straps are included to secure the trough to the floor.
Brushed satin finish
Exposed surfaces have a brushed satin finish.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
Joints are specified as TIG welded and leak-proof.
