Play manufacturer video for IMC/Teddy FT-1836 Stainless Steel Floor Trough, 36"W x 18"D, 4" Deep, Non-Anti-SplashIMC/Teddy FT-1836 Stainless Steel Floor Trough, 36"W x 18"D, 4" Deep, Non-Anti-Splash
SKU: FT-1836
$2,284.20

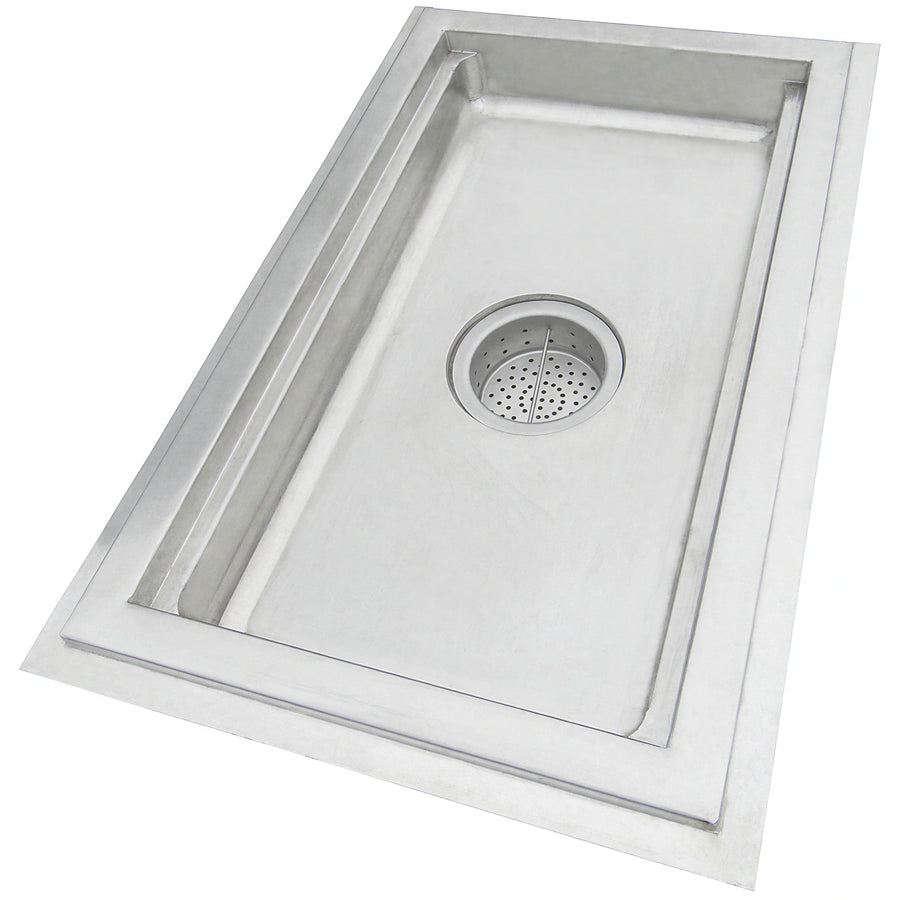

The IMC/Teddy FT-1836 is a 36 in wide by 18 in deep stainless steel floor trough with a 4 in deep receptacle and non-anti-splash pan type.
- 14/304 stainless steel construction with a brushed satin finish.
- One 6-1/2 in OD waste outlet with a perforated waste basket and 4 in OD tailpiece.
- Includes anchor straps.
- Integral coves and a 1/4 in per foot pitch toward the waste outlet.
- TIG-welded, leakproof joints.
Overall Dimensions:
36.0"W x 18.0"D x 12.25"HProduct Weight:
33.0 lbStainless steel construction
Constructed of 14/304 stainless steel with a brushed satin finish.
Waste outlet assembly
Includes one 6-1/2 in OD waste outlet, a perforated waste basket, and a 4 in OD tailpiece.
Drainage design
Integral coves and a 1/4 in per foot pitch direct the trough toward the waste outlet.
Anchor straps
Anchor straps are included.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
Joints are TIG welded and leakproof.
Pan type
Specified as non-anti-splash.
Width
36 in
Depth
18 in
Height
12.25 in
Weight
33 lb
Receptacle depth
4 in
Material
14/304 stainless steel
Finish
Brushed satin
Pan type
Non-anti-splash
Waste outlet
(1) 6-1/2 in OD
Waste basket
Perforated
Tailpiece
4 in OD
Anchor straps
Included
Drainage pitch
1/4 in per foot toward waste outlet
Joint construction
TIG welded and leakproof
Certifications & Compliance
Frequently Asked Questions
The FT-1836 is 36 in wide, 18 in deep, and 12.25 in high.
The receptacle is 4 in deep.
The trough has one 6-1/2 in OD waste outlet with a perforated waste basket and a 4 in OD tailpiece.
Yes. Anchor straps are included.
No. The FT-1836 is specified as non-anti-splash.
It is constructed of 14/304 stainless steel and has a brushed satin finish.
The product is identified as Made in USA.
