IMC/Teddy

IMC/Teddy FT-1830-PFG-ADA Floor Trough, 30"W x 18"D, 4" Deep, 14 ga Stainless Steel, Blue Fiberglass Grating

SKU: FT-1830-PFG-ADA
$2,830.80
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

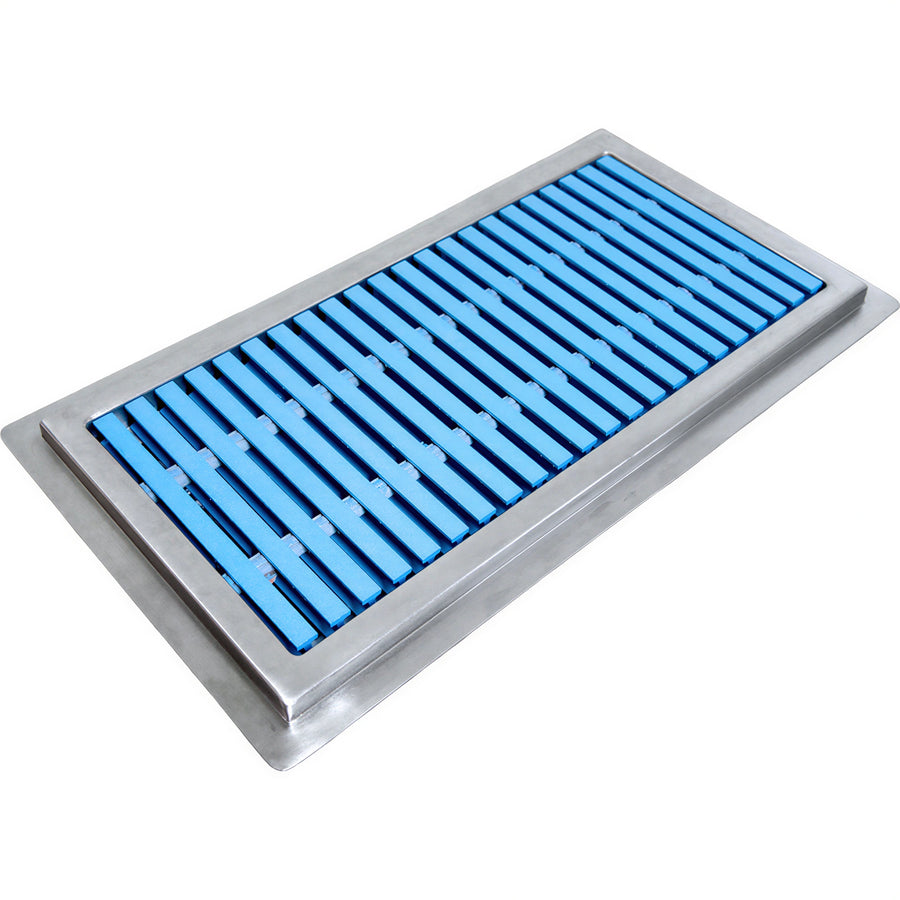

The IMC/Teddy FT-1830-PFG-ADA is a floor trough measuring 30 in wide by 18 in deep, with a 4 in deep receptacle. It is constructed from 14 gauge 304 stainless steel with a brushed satin finish and includes blue PFG-ADA pultruded fiberglass grating.

  • Includes one 6-1/2 in waste outlet, a perforated waste basket, and a 4 in OD tailpiece.
  • Integral coves and a 1/4 in per foot pitch direct drainage toward the waste outlet.
  • Includes anchor straps for securing the trough to the floor.
  • Listed as NSF and Made in USA.

Overall Dimensions:

30.0"W x 18.0"D x 12.25"H

Product Weight:

85.0 lb

Stainless steel construction

Constructed from 14 gauge 304 stainless steel with a brushed satin finish.

PFG-ADA fiberglass grating

Includes blue pultruded fiberglass grating identified as PFG-ADA; the brochure specifies 0.4 in spacing for PFG-ADA blue grating bars.

Drainage design

Integral coves and a 1/4 in per foot pitch direct drainage toward the 6-1/2 in waste outlet.

Included waste components

Includes one 6-1/2 in waste outlet, a perforated waste basket, and a 4 in OD tailpiece.

Floor anchoring

Anchor straps are included for securing the trough to the floor.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Product type Floor trough
Width 30 in
Depth 18 in
Receptacle depth 4 in
Trough construction 14 gauge 304 stainless steel
Finish Brushed satin
Grating construction Pultruded fiberglass
Grating color Blue
Grating model PFG-ADA
Pan type Non anti-splash
Waste outlet 6-1/2 in outlet
Tailpiece 4 in OD
Waste basket Perforated waste basket included
Drainage pitch 1/4 in per foot
Anchor straps Included
Availability Stock item; usually ships in 1-2 days

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The product measures 30.0 in wide by 18.0 in deep and 12.25 in high, with an 85.0 lb weight.
The receptacle is 4 in deep.
The trough includes blue PFG-ADA pultruded fiberglass grating. The brochure identifies the blue PFG-ADA grating bars as ADA compliant with 0.4 in spacing.
The product includes one 6-1/2 in waste outlet, a perforated waste basket, and a 4 in OD tailpiece.
It is constructed from 14 gauge 304 stainless steel and has a brushed satin finish.
Yes. Anchor straps are included.
No. The authoritative category data identifies the pan type as non anti-splash.
The product is Made in USA and is listed as NSF.
