Play manufacturer video for IMC/Teddy FT-1584-SG-ADA Stainless Steel Floor Trough, 84"W x 15"D x 4" Deep, Subway-Style GratingIMC/Teddy FT-1584-SG-ADA Stainless Steel Floor Trough, 84"W x 15"D x 4" Deep, Subway-Style Grating
SKU: FT-1584-SG-ADA
$6,238.80
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

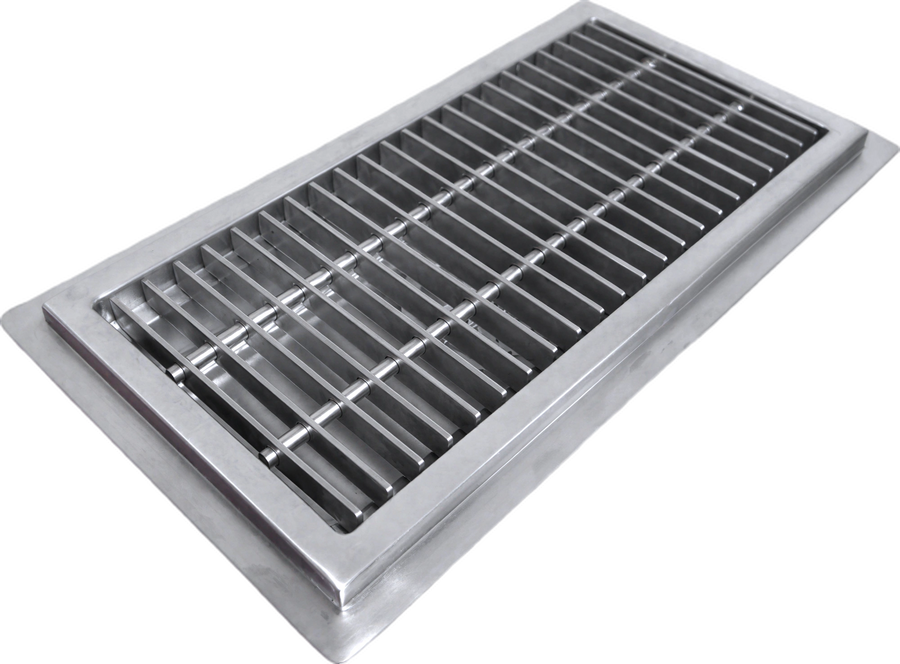

FT-1584-SG-ADA is an 84-inch-wide by 15-inch-deep floor trough with a 4-inch-deep receptacle and SG-ADA subway-style grating.
- 14-gauge 304 stainless steel construction with a brushed satin finish.
- Includes one 6-1/2-inch waste outlet, perforated waste basket, 4-inch OD tailpiece, and anchor straps.
- FT design features integral coves, a 1/4-inch-per-foot pitch toward the waste outlet, recessed flange, and 1-inch ledge.
Overall Dimensions:
84.0"W x 15.0"D x 12.25"HProduct Weight:
238.0 lbSG-ADA subway-style grating
Stainless steel SG-ADA grating bars are spaced 1/2 inch apart.
Stainless steel construction
The trough is constructed of 14-gauge 304 stainless steel with a brushed satin finish.
Pitched drainage
The trough is pitched 1/4 inch per foot toward the 6-1/2-inch waste outlet.
Waste collection
Includes one perforated waste basket at the drain.
Tailpiece
Includes a 4-inch OD tailpiece.
Installation support
Anchor straps are included; the design also has a recessed flange and grout pocket.
Integral coves
The FT trough design includes integral coved corners.
Welded joints
FT trough joints are TIG welded and leak-proof.
Receptacle depth
4 in
Material
14-gauge 304 stainless steel
Finish
Brushed satin
Grating type
SG-ADA subway-style grating
Grating construction
Stainless steel
Grating bar spacing
1/2 in
Pan type
Non anti-splash
Waste outlet
1 x 6-1/2 in outlet
Waste basket
Perforated waste basket
Tailpiece
4 in OD
Drain pitch
1/4 in per foot toward waste outlet
Anchor straps
Included
Certifications & Compliance
Frequently Asked Questions
The listed dimensions are 84 inches wide, 15 inches deep, and 12.25 inches high.
The receptacle is 4 inches deep.
It uses SG-ADA subway-style stainless steel grating with bars spaced 1/2 inch apart.
The unit includes one 6-1/2-inch waste outlet, a perforated waste basket, and a 4-inch OD tailpiece.
Yes. Anchor straps are included.
The trough is made from 14-gauge 304 stainless steel and has a brushed satin finish.
Yes. The product is identified as NSF and Made in USA.
