Play manufacturer video for IMC/Teddy FT-1584-PFG-ADA 84" Floor Trough Drain, 15"D x 4" Deep, 14 ga Stainless Steel, Blue Fiberglass GrateIMC/Teddy FT-1584-PFG-ADA 84" Floor Trough Drain, 15"D x 4" Deep, 14 ga Stainless Steel, Blue Fiberglass Grate
SKU: FT-1584-PFG-ADA
$4,953.00
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

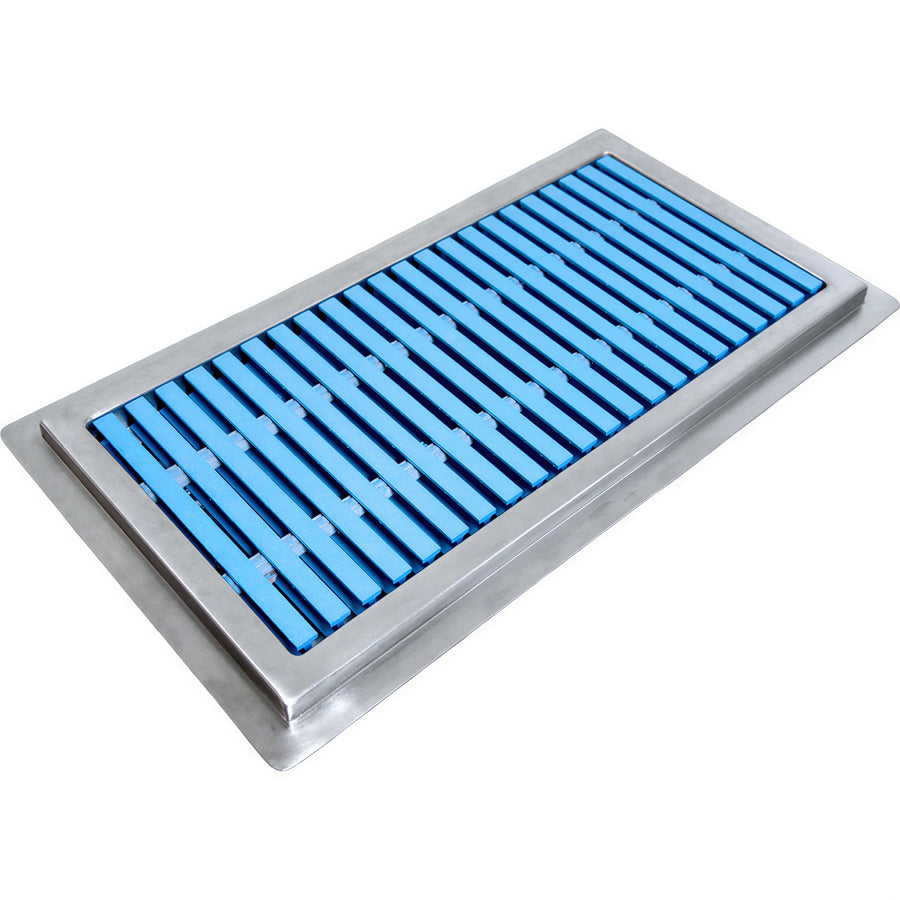

The FT-1584-PFG-ADA is an 84-inch floor trough with a 15-inch depth, 4-inch deep receptacle, and 14 gauge 304 stainless steel construction.
It includes blue PFG-ADA pultruded fiberglass grating, one 6-1/2-inch waste outlet with a perforated waste basket, a 4-inch OD tailpiece, and anchor straps.
- Brushed satin finish
- Non anti-splash pan type
- NSF certified and made in the USA
Overall Dimensions:
84.0"W x 15.0"D x 12.25"HProduct Weight:
238.0 lbStainless steel construction
Constructed from 14 gauge 304 stainless steel with a brushed satin finish.
Blue PFG-ADA grating
Specified with blue pultruded fiberglass PFG-ADA grating.
Waste outlet assembly
Includes one 6-1/2 in waste outlet, perforated waste basket, and 4 in OD tailpiece.
Anchor straps
Anchor straps are included.
Non anti-splash pan
The authoritative category data identifies the pan type as non anti-splash.
Product type
Floor trough
Overall width
84 in
Overall depth
15 in
Overall height
12.25 in
Receptacle depth
4 in
Waste outlet
One 6-1/2 in outlet
Tailpiece
4 in OD
Waste basket
Perforated
Construction
14 gauge 304 stainless steel
Finish
Brushed satin
Grating
Blue PFG-ADA pultruded fiberglass
Grating bar spacing
0.4 in
Pan type
Non anti-splash
Anchor straps
Included
Weight
238 lb
Certifications & Compliance
Frequently Asked Questions
The trough is 84 in wide, 15 in deep, and 12.25 in high, with a 4 in deep receptacle.
It is constructed from 14 gauge 304 stainless steel and has a brushed satin finish.
It uses blue PFG-ADA pultruded fiberglass grating.
The product has one 6-1/2 in waste outlet with a perforated waste basket and a 4 in OD tailpiece.
Yes, anchor straps are included.
Yes, NSF certification is specified for this product.
