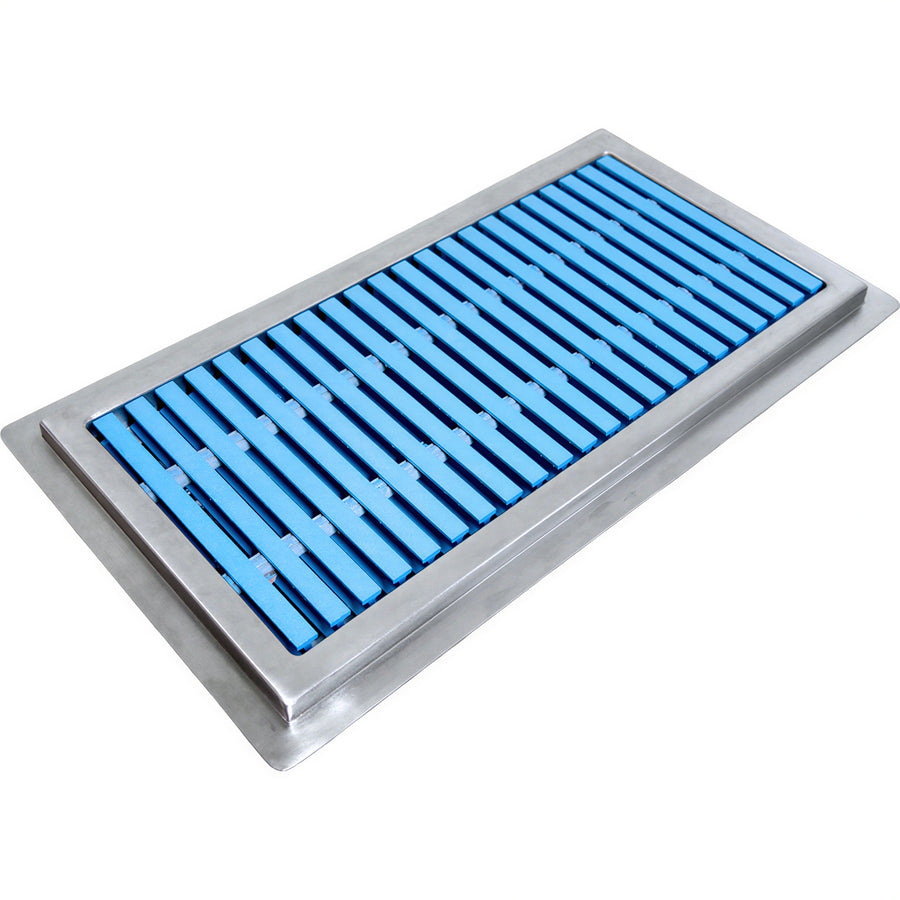

Play manufacturer video for IMC/Teddy FT-1548-PFG-ADA 48" Stainless Steel Floor Trough, 15"D x 4" Deep, with Blue Fiberglass GratingIMC/Teddy FT-1548-PFG-ADA 48" Stainless Steel Floor Trough, 15"D x 4" Deep, with Blue Fiberglass Grating
SKU: FT-1548-PFG-ADA
$3,719.40
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The IMC/Teddy FT-1548-PFG-ADA is a 48-inch FT floor trough with a 4-inch-deep receptacle, 14/304 stainless steel construction, and blue PFG-ADA pultruded fiberglass grating.
- Drainage: Includes one 6-1/2-inch waste outlet with a perforated waste basket and 4-inch OD tailpiece.
- Construction: The trough is made of 14 gauge 304 stainless steel with a brushed satin finish.
- Installation: Anchor straps are included to secure the trough to the floor.
- Design: Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
Overall Dimensions:
48.0"W x 15.0"D x 12.25"HProduct Weight:
136.0 lbStainless steel construction
Constructed from 14 gauge 304 stainless steel with a brushed satin finish.
Blue PFG-ADA grating
Includes blue PFG-ADA pultruded fiberglass grating with grating bars spaced 0.4 inches apart.
Waste outlet assembly
Includes one 6-1/2-inch waste outlet, a perforated waste basket, and a 4-inch OD tailpiece.
Drainage design
Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
Anchor straps
Anchor straps are included to secure the trough to the floor.
Receptacle depth
The trough has a 4-inch-deep receptacle.
Overall width
48 in
Overall depth
15 in
Overall height
12.25 in
Weight
136 lb
Receptacle depth
4 in
Construction
14 gauge 304 stainless steel
Finish
Brushed satin
Grating
Blue PFG-ADA pultruded fiberglass
Waste outlet
1 x 6-1/2 in OD outlet
Tailpiece
4 in OD
Waste basket
Perforated
Anchor straps
Included
Pan type
Non anti-splash
Drainage pitch
1/4 in per foot toward waste outlet
Grating bar spacing
0.4 in
Certifications & Compliance
Frequently Asked Questions
The trough measures 48 inches wide by 15 inches deep by 12.25 inches high, with a 4-inch-deep receptacle.
The unit includes blue PFG-ADA pultruded fiberglass grating. The PFG-ADA grating bars are spaced 0.4 inches apart.
It includes one 6-1/2-inch waste outlet, a perforated waste basket, and a 4-inch OD tailpiece.
The trough is constructed from 14 gauge 304 stainless steel and has a brushed satin finish.
Yes. Anchor straps are included.
Yes. The product data identifies this exact model as NSF and Made in USA.
