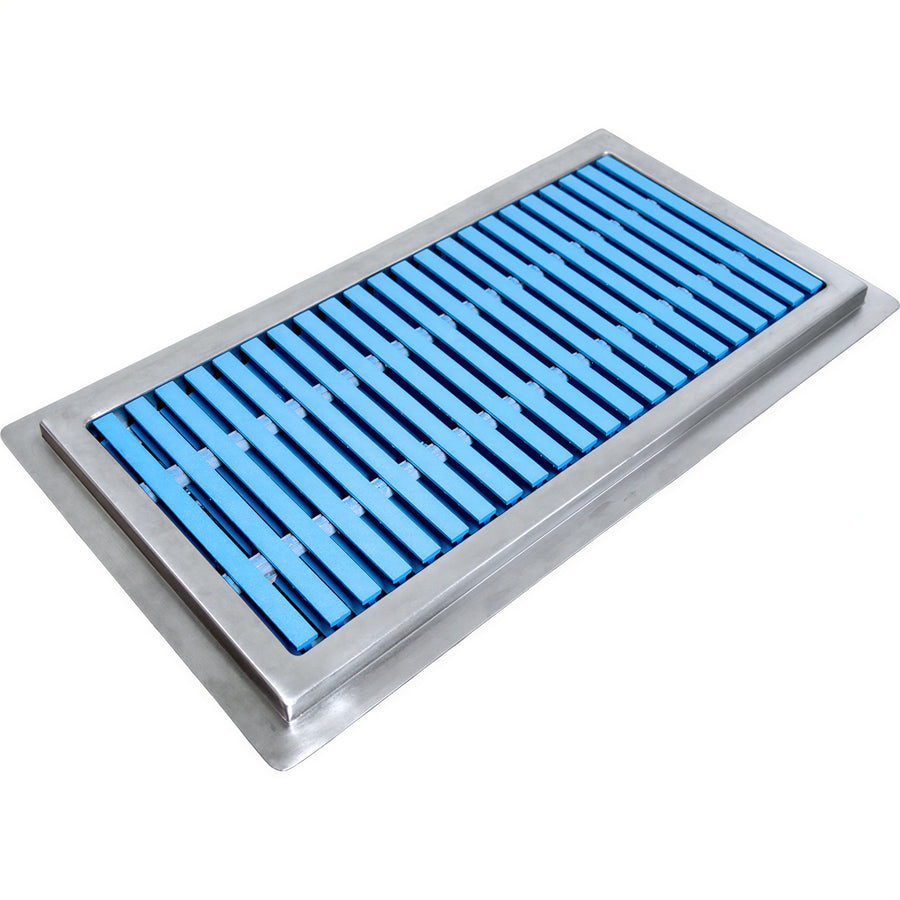

The IMC/Teddy FT-1284-PFG-ADA is an 84 in wide floor trough with a 12 in depth and 4 in deep receptacle.

It is constructed from 14 ga 304 stainless steel with a brushed satin finish and includes blue PFG-ADA pultruded fiberglass grating.

  • One 6-1/2 in waste outlet with perforated waste basket and 4 in OD tailpiece
  • Anchor straps included
  • Integral coved corners and pitch toward the waste outlet
  • NSF and Made in USA

Overall Dimensions:

84.0"W x 12.0"D x 12.25"H

Product Weight:

168.0 lb

Stainless steel construction

Constructed from 14 ga 304 stainless steel with a brushed satin finish.

PFG-ADA grating

Includes blue pultruded fiberglass grating with PFG-ADA designation.

Waste outlet assembly

Includes one 6-1/2 in waste outlet, perforated waste basket and 4 in OD tailpiece.

Anchor straps

Anchor straps are included for securing the trough to the floor.

Drainage design

The FT trough design includes integral coved corners and a 1/4 in per foot pitch toward the waste outlet.

Recessed flange

The standard FT design includes a recessed flange and integral ledge for the grating.

Overall width 84 in
Overall depth 12 in
Overall height 12.25 in
Receptacle depth 4 in
Weight 168 lb
Material 14 ga 304 stainless steel
Finish Brushed satin
Grating PFG-ADA pultruded fiberglass, blue
Waste outlet 1 x 6-1/2 in outlet with perforated waste basket and 4 in OD tailpiece
Anchor straps Included
Pan type Non anti-splash
Drain pitch 1/4 in per foot toward waste outlet
Joints TIG welded and leak-proof

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The trough is 84 in wide, 12 in deep and 12.25 in high, with a 4 in deep receptacle.
The unit includes blue PFG-ADA pultruded fiberglass grating.
It has one 6-1/2 in waste outlet with a perforated waste basket and 4 in OD tailpiece.
Yes. Anchor straps are included.
The trough is made of 14 ga 304 stainless steel and has a brushed satin finish.
Yes. NSF is specified for this exact model.
The product is made in the USA.
The specified pan type is non anti-splash.
