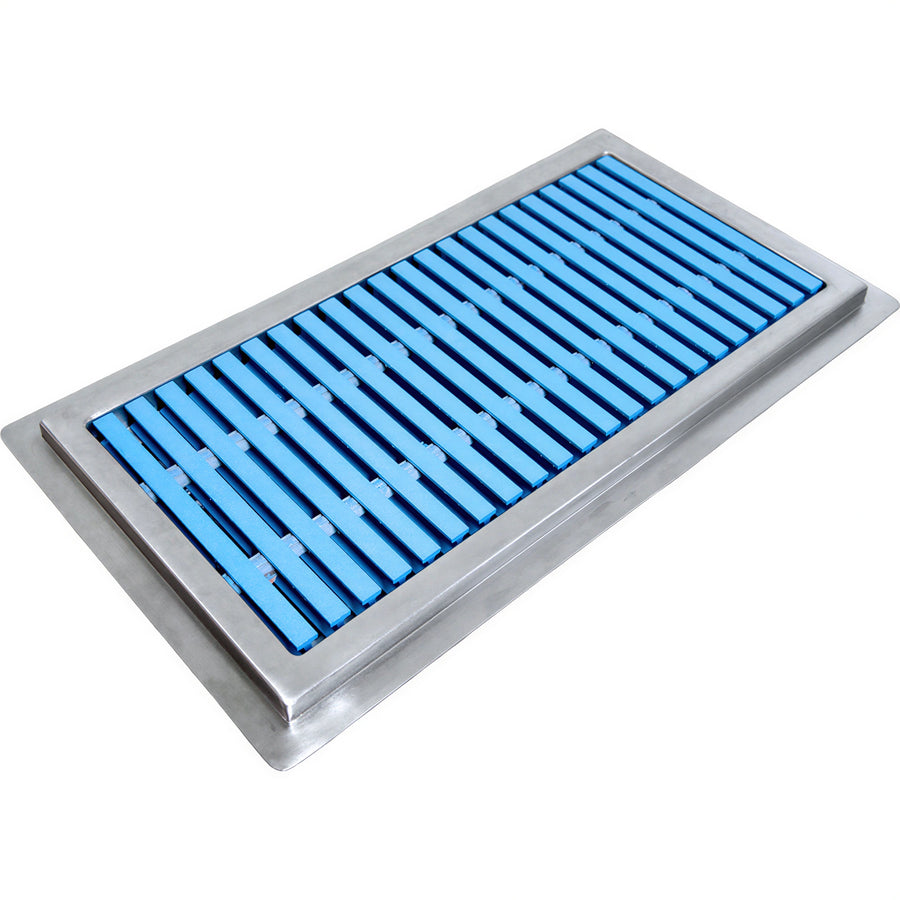

Play manufacturer video for IMC/Teddy FT-1272-PFG-ADA Stainless Steel Floor Trough with Blue Fiberglass Grating, 72"W x 12"D, 4" Deep ReceptacleIMC/Teddy FT-1272-PFG-ADA Stainless Steel Floor Trough with Blue Fiberglass Grating, 72"W x 12"D, 4" Deep Receptacle
The IMC/Teddy FT-1272-PFG-ADA is a 72 in wide stainless steel floor trough with a 12 in overall depth, a 4 in deep receptacle, and blue PFG-ADA pultruded fiberglass grating.
It includes one 6-1/2 in waste outlet, a perforated waste basket, a 4 in OD tailpiece, and anchor straps for floor installation.
- 14 ga type 304 stainless steel construction with a brushed satin finish
- Integral coves and a 1/4 in-per-foot pitch toward the waste outlet
- Blue PFG-ADA grating with 0.4 in bar spacing
- Made in USA and NSF certified
Overall Dimensions:
72.0"W x 12.0"D x 12.25"HProduct Weight:
144.0 lbStainless steel construction
The trough is constructed from 14 ga type 304 stainless steel and has a brushed satin finish.
PFG-ADA fiberglass grating
The included grating is blue, pultruded fiberglass with PFG-ADA compliant bars spaced 0.4 in apart.
Integrated drainage
Integral coves and a 1/4 in-per-foot pitch direct drainage toward the 6-1/2 in waste outlet.
Waste collection
A perforated waste basket is provided with the waste outlet.
Tailpiece
The waste outlet includes a 4 in OD tailpiece.
Floor installation
Welded anchor straps secure the trough to the floor.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
The joints are TIG welded and leak-proof.
