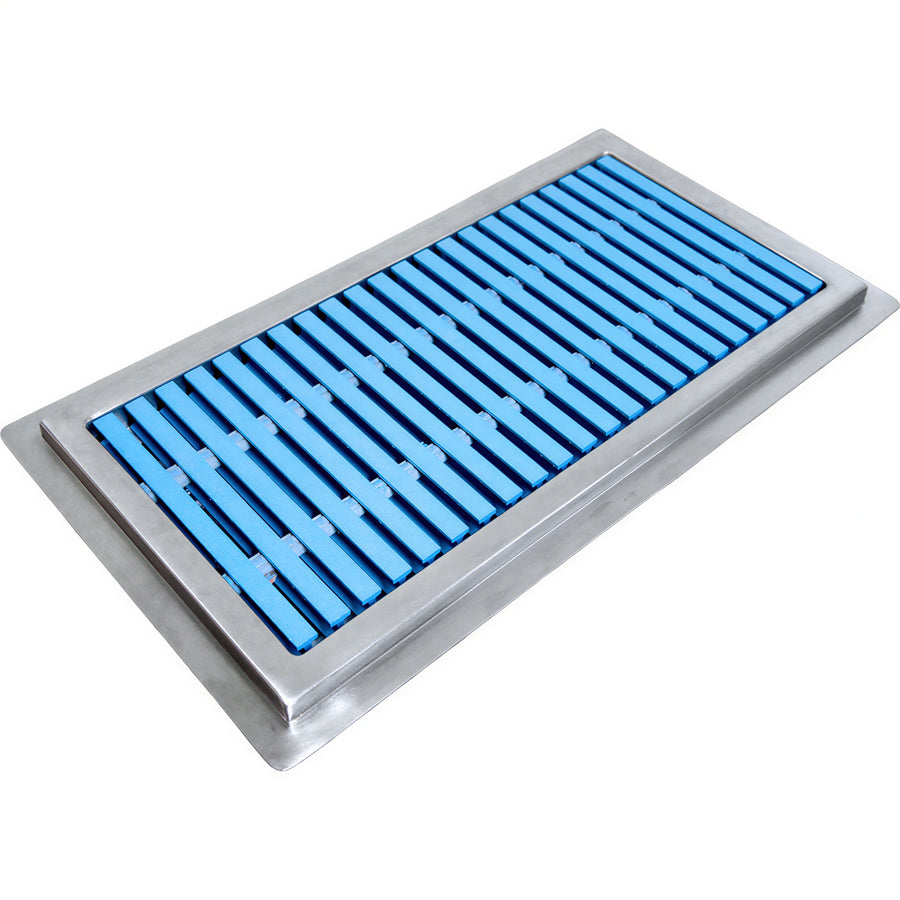

Play manufacturer video for IMC/Teddy FT-1224-PFG-ADA Floor Trough, 24"W x 12"D, 4" Deep, Stainless Steel, Blue Fiberglass GrateIMC/Teddy FT-1224-PFG-ADA Floor Trough, 24"W x 12"D, 4" Deep, Stainless Steel, Blue Fiberglass Grate
The IMC/Teddy FT-1224-PFG-ADA is a 24-inch-wide floor trough with a 4-inch-deep 14 ga 304 stainless steel receptacle and blue PFG-ADA pultruded fiberglass grating.
- Includes a 6-1/2-inch waste outlet, perforated waste basket, 4-inch OD tailpiece, and anchor straps.
- Integral coves and a 1/4-inch-per-foot pitch direct drainage toward the waste outlet.
- Finished in brushed satin stainless steel and listed as NSF and Made in USA.
Overall Dimensions:
24.0"W x 12.0"D x 12.25"HProduct Weight:
48.0 lbStainless steel construction
Built with 14 ga 304 stainless steel and a brushed satin finish.
PFG-ADA fiberglass grating
Includes blue pultruded fiberglass grating with ADA-compliant bars spaced 0.4 inches apart.
Pitched drainage
Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
Waste outlet assembly
Includes a 6-1/2-inch waste outlet, perforated waste basket, and 4-inch OD tailpiece.
Anchor straps
Anchor straps are included to secure the trough to the floor.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Pan type
Non anti-splash pan type.
