IMC/Teddy

IMC/Teddy DL-2 Utensil/Can Washer, 16-Gauge 304 Stainless Steel, One-Piece Basin, 12-Inch Backsplash

SKU: DL-2
$4,532.64
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

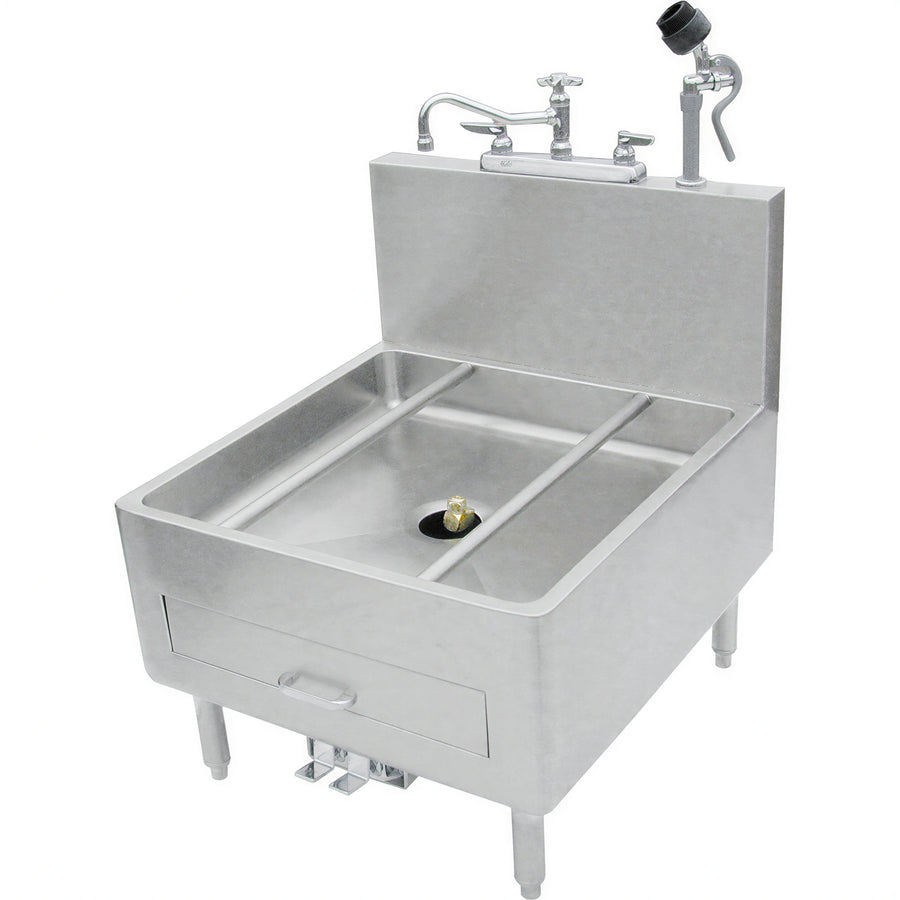

The IMC/Teddy DL-2 is a utensil/can washer with a one-piece wash basin, 16-gauge #304 stainless steel construction, and an integrated 12 in backsplash.

  • Wash setup: 1 in OD stainless steel tubing wash supports and a fully welded construction.
  • Spray control: Double foot pedal valve controls the bottom nozzle spray head, which provides a 360-degree revolving cleaning pattern.
  • Faucet assembly: Return-mounted faucet with a 48 in flexible stainless steel hose and spray head.
  • Waste handling: Removable scrap drawer and a 2 in brass waste outlet.
  • Base: Adjustable stainless steel legs.

Overall Dimensions:

26.0"W x 28.5"D x 31.0"H

Product Weight:

110.0 lb

Stainless steel construction

Constructed from 16-gauge #304 stainless steel.

One-piece wash basin

Includes a one-piece wash basin with 1 in OD stainless steel tubing wash supports.

Integrated backsplash

Includes a 12 in integrated backsplash.

Scrap drawer

Removable scrap drawer collects solid waste for disposal.

Foot pedal spray control

Double foot pedal valve controls the bottom nozzle spray head with a 360-degree revolving cleaning pattern.

Faucet and hose

Return-mounted faucet with a 48 in flexible stainless steel hose and spray head.

Legs

Mounted on adjustable stainless steel legs.

Waste outlet

Bottom drains to a 2 in brass waste outlet.

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment IMC/Teddy New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations
Construction 16-gauge #304 stainless steel
Basin One-piece wash basin
Wash supports 1 in OD stainless steel tubing
Backsplash 12 in integrated backsplash
Scrap drawer Removable
Valve Double foot pedal valve
Faucet Return-mounted faucet
Hose and spray head 48 in flexible stainless steel hose with spray head
Bottom spray pattern 360-degree revolving cleaning pattern
Base Adjustable stainless steel legs
Drain outlet 2 in brass waste outlet
Compartment size 24 in side-to-side x 27 in front-to-back
Sink depth 10 in
Drainboards Without drainboards
Top stainless series 300 series

Documents

PDF Cutsheet PDF Download PDF Shelving brochure PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

The DL-2 is 26 in wide, 28.5 in deep, and 31 in high.
It is constructed from 16-gauge #304 stainless steel.
Yes. It has an integrated 12 in backsplash.
No. It is specified without drainboards.
The unit has a 48 in flexible stainless steel hose with a spray head.
A double foot pedal valve controls the bottom nozzle spray head.
Yes. It includes a removable scrap drawer.
The unit is mounted on adjustable stainless steel legs.
