IMC/Teddy

IMC/Teddy CFT24-27-SG-ADA Floor Trough, 324"W x 24"D x 4" Deep, 16 ga 304 Stainless Steel, with Drain and ADA Subway Grating

SKU: CFT24-27-SG-ADA
$21,612.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

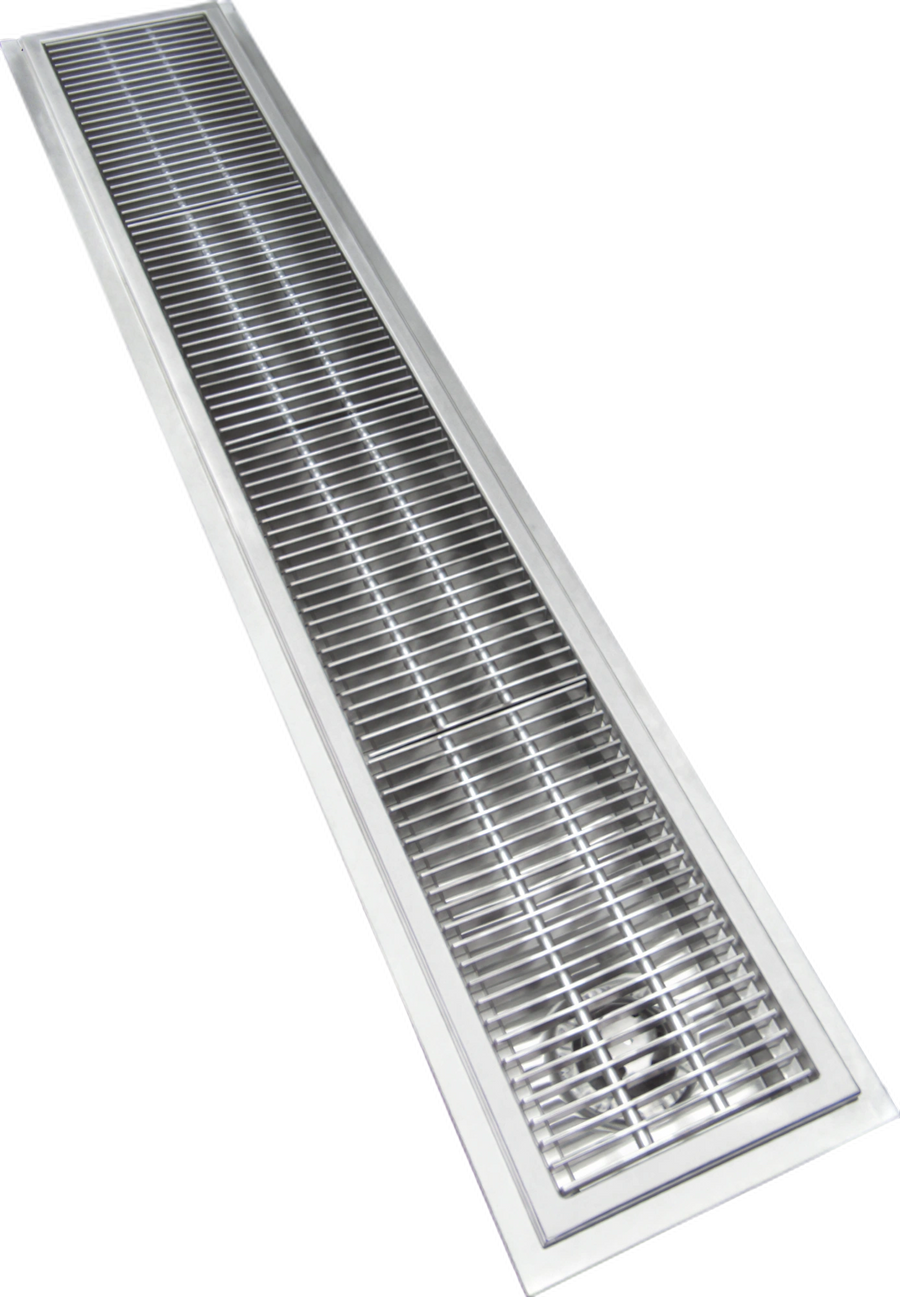

CFT24-27-SG-ADA is an IMC/Teddy CFT floor trough measuring 324" wide by 24" deep with a 4" overall pan depth.

  • Constructed from 16 ga 304 stainless steel.
  • Includes a drain and SG-ADA subway-style stainless steel grating.
  • Features integral coved corners and pitch toward the waste outlet.
  • Recessed flange supports floor tile and provides a grout pocket.
  • Exposed surfaces have a brushed satin finish.

Overall Dimensions:

324.0"W x 24.0"D x 4.0"H

Product Weight:

918.0 lb

304 stainless steel construction

The trough is constructed from 16 ga 304 stainless steel.

SG-ADA subway grating

The included SG-ADA grating is a stainless steel subway-style grating with bars spaced 1/2" apart.

Included drain

The specified configuration includes a drain.

Integral drainage design

Integral coved corners and pitch direct water toward the waste outlet.

Recessed flange

The recessed flange supports floor tile and provides a grout pocket.

Brushed satin finish

Exposed surfaces have a brushed satin finish.

TIG-welded joints

The joints are TIG welded and identified as leak-proof in the product literature.

Product type Floor trough
Width 324"
Depth 24"
Overall pan depth 4"
Material 304 stainless steel
Material gauge 16 ga
Grating type SG-ADA subway-style grating
Grating construction Stainless steel
Grating bar spacing 1/2"
Pan type Non anti-splash
Drain Included
Finish Brushed satin

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The trough is 324" wide, 24" deep, and 4" deep overall.
It is made from 16 ga 304 stainless steel.
The specified configuration includes SG-ADA subway-style stainless steel grating.
Yes. The specified configuration includes a drain.
No. The listed pan type is non anti-splash.
