IMC/Teddy CFT18-13 Floor Trough, 16-Gauge 304 Stainless Steel, 156"W x 18"D x 4" Deep, Beehive Strainer, 4" OD Tailpiece
- Dimensions
- 156.0"W × 18.0"D × 4.0"H
- Product type
- Floor trough
- Trough construction
- One-piece, 16-gauge 304 stainless steel
- Pan depth
- 4 in
- Pan type
- Non anti-splash
- Strainer
- Beehive
Specifications
Description

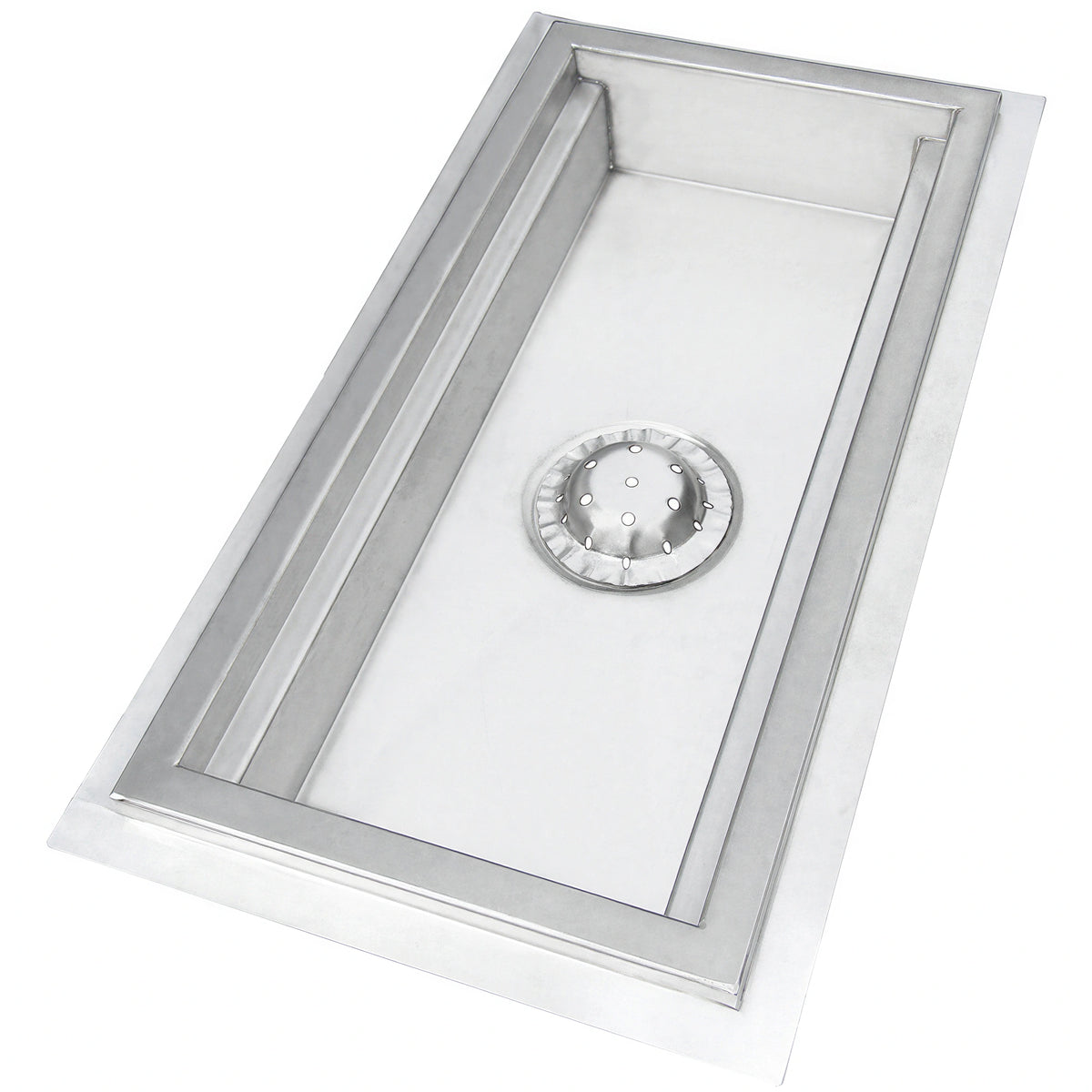

The IMC/Teddy CFT18-13 is a 156 in wide by 18 in deep floor trough with a 4 in overall depth. It is constructed from 16-gauge 304 stainless steel and includes a beehive strainer and 4 in OD tailpiece.
The trough features one-piece construction, coved horizontal corners, an integral pitch toward the waste outlet, and a recessed flange that supports floor tile and provides a grout pocket. Exposed surfaces have a brushed satin finish.
- Joints are TIG welded and leak-proof.
- A 1 in deep ledge is integral with the unit for IMC grating.
Overall Dimensions:
156.0"W x 18.0"D x 4.0"HProduct Weight:
130.0 lb16-gauge 304 stainless steel
The trough is constructed from 16-gauge 304 stainless steel.
Beehive strainer
A stainless steel beehive strainer is included.
4 in OD tailpiece
The unit includes a 4 in outside-diameter tailpiece.
Integral drainage pitch
The trough is integrally pitched toward the waste outlet.
Coved corners
Horizontal corners are coved.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
Joints are TIG welded and leak-proof.
Brushed satin finish
Exposed surfaces are finished in brushed satin.
