IMC/Teddy CFT12-29 Floor Trough, 348"W x 12"D x 4" Deep, 16/304 Stainless Steel, Beehive Strainer, 4" OD Tailpiece
- Dimensions
- 348.0"W × 12.0"D × 4.0"H
- Product type
- CFT floor trough
- Material
- 304 stainless steel
- Gauge
- 16 gauge
- Pan depth
- 4 in
- Strainer
- Beehive strainer
Specifications
Description

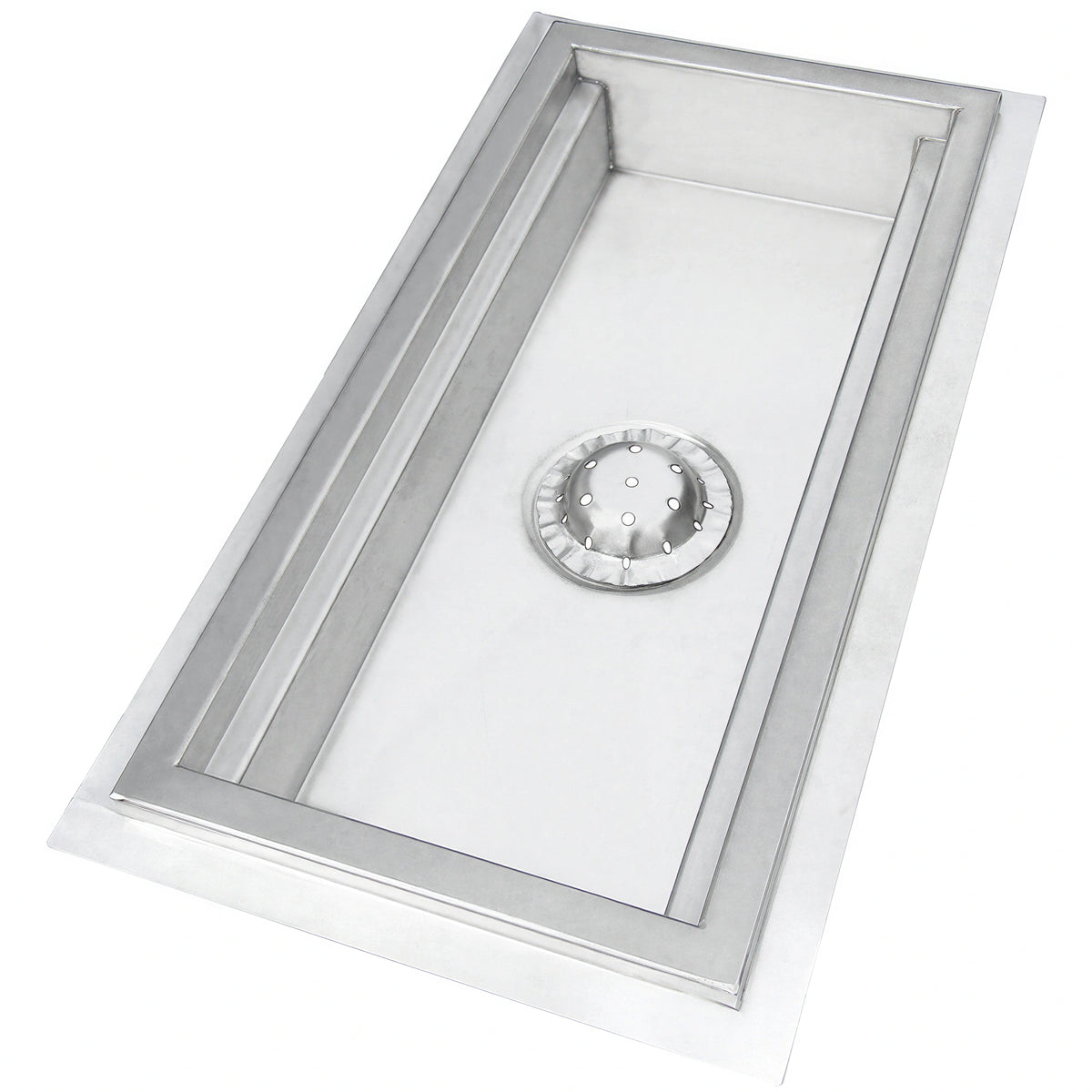

The IMC/Teddy CFT12-29 is a 348 in wide floor trough with a 12 in short-side depth and 4 in pan depth. It is constructed from 16-gauge 304 stainless steel and includes a beehive strainer and 4 in OD tailpiece.
The CFT design features one-piece construction, coved horizontal corners, an integral pitch toward the waste outlet, and a recessed flange with a 1 in ledge for IMC grating. Joints are TIG welded and exposed surfaces have a brush satin finish.
Overall Dimensions:
348.0"W x 12.0"D x 4.0"HProduct Weight:
232.0 lb16-gauge 304 stainless steel
The trough is constructed from 16-gauge 304 stainless steel.
One-piece construction
The CFT floor trough uses one-piece stainless steel construction.
Beehive strainer
A stainless steel beehive strainer is included.
4 in OD tailpiece
The trough includes a 4 in outside-diameter tailpiece.
Integral pitch
The trough is integrally pitched toward the waste outlet.
Coved corners
Horizontal corners are coved.
Recessed flange and grating ledge
The recessed flange supports floor tile and provides a grout pocket; the unit has an integral 1 in ledge for IMC grating.
TIG-welded joints
Joints are TIG welded and exposed surfaces have a brush satin finish.
